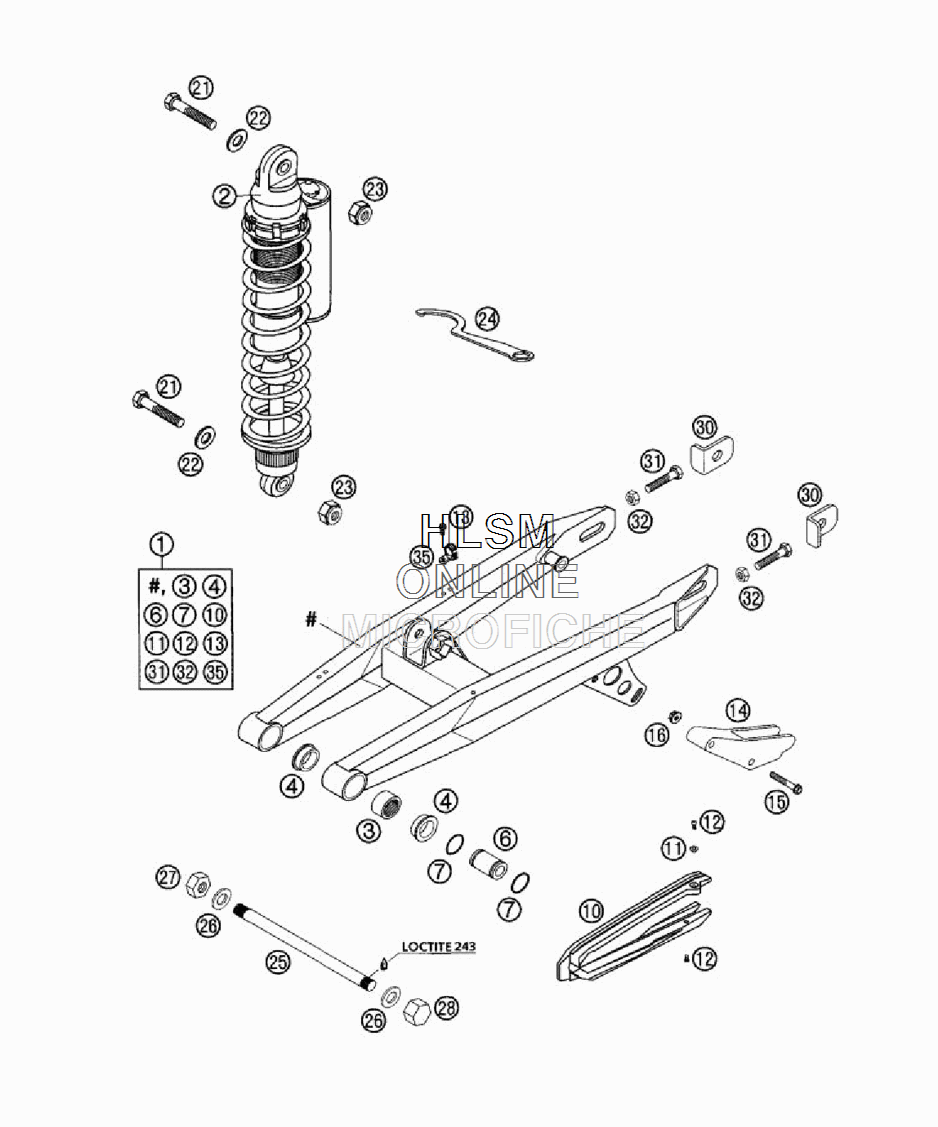

SWINGARM W/ SHOCK ABSORBER для Ktm 65 SX - 2002 года выпуска

№

Артикул

Название
1

46104030044 SWINGARM CPL.

SWINGARM CPL.

124 080 ₽
2

0318W708 MONOSHOCK WP

MONOSHOCK WP

0 ₽
3

54603097000 NEEDLE BUSH HK 2016

NEEDLE BUSH HK 2016

4 060 ₽
4

46004030070 SPACER BUSHING 20X26X30X9,7

SPACER BUSHING 20X26X30X9,7

530 ₽
6

46004030071 BEARING BUSH 12X20X36,5

BEARING BUSH 12X20X36,5

4 810 ₽
7

0770160021 O-RING 16,00X2,00 VITON

O-RING 16,00X2,00 VITON

500 ₽
10

46104066000 CHAIN SLID. GUARD FRO.

CHAIN SLID. GUARD FRO.

4 490 ₽
11

46104066050 BUSH FOR CHAIN SLIDER GUARD

BUSH FOR CHAIN SLIDER GUARD

2 220 ₽
12

0010050103 SPECIAL SCREW M 5,0X10

SPECIAL SCREW M 5,0X10

290 ₽
13

0009050103 SPECIAL SCREW M 5,0X10

SPECIAL SCREW M 5,0X10

290 ₽
14

46007066000 CHAIN GUIDE REAR 60/65

CHAIN GUIDE REAR 60/65

3 250 ₽
15

0015060403 HH COLLAR SCREW M 6X40 SW=8

HH COLLAR SCREW M 6X40 SW=8

500 ₽
16

56509064100 SELF LOCKING NUT M6 10.9

SELF LOCKING NUT M6 10.9

320 ₽
21

0931100453 HH SCREW DIN0931-M10X45

HH SCREW DIN0931-M10X45

590 ₽
22

0125100003 WASHER DIN0125-A10,5

WASHER DIN0125-A10,5

290 ₽
23

54310086100 SELF LOCKING NUT M10 CU WS=14

SELF LOCKING NUT M10 CU WS=14

410 ₽
24

46012024000 HOOK WRENCH FOR SHOCK ABSORBER 1

HOOK WRENCH FOR SHOCK ABSORBER 1

5 030 ₽
25

46004037000 SWINGARM BOLT 201MM M12X1

SWINGARM BOLT 201MM M12X1

7 630 ₽
26

0125120003 FLAT WASHER DIN0125-A13

FLAT WASHER DIN0125-A13

180 ₽
27

0934120103 HEXAGON NUT DIN0934-M12X1

HEXAGON NUT DIN0934-M12X1

410 ₽
28

0917120103 NUT DIN917-M12X1

NUT DIN917-M12X1

1 200 ₽
30

46010083000 CHAIN ADJUSTER

CHAIN ADJUSTER

3 240 ₽
31

0933060303 HH SCREW DIN0933-M 6X30

HH SCREW DIN0933-M 6X30

220 ₽
32

0934060003 HEXAGON NUT DIN0934-M 6

HEXAGON NUT DIN0934-M 6

120 ₽
35

54611076100 RETAIN.CLAMP FOR BRAKE HOSE

RETAIN.CLAMP FOR BRAKE HOSE

350 ₽
