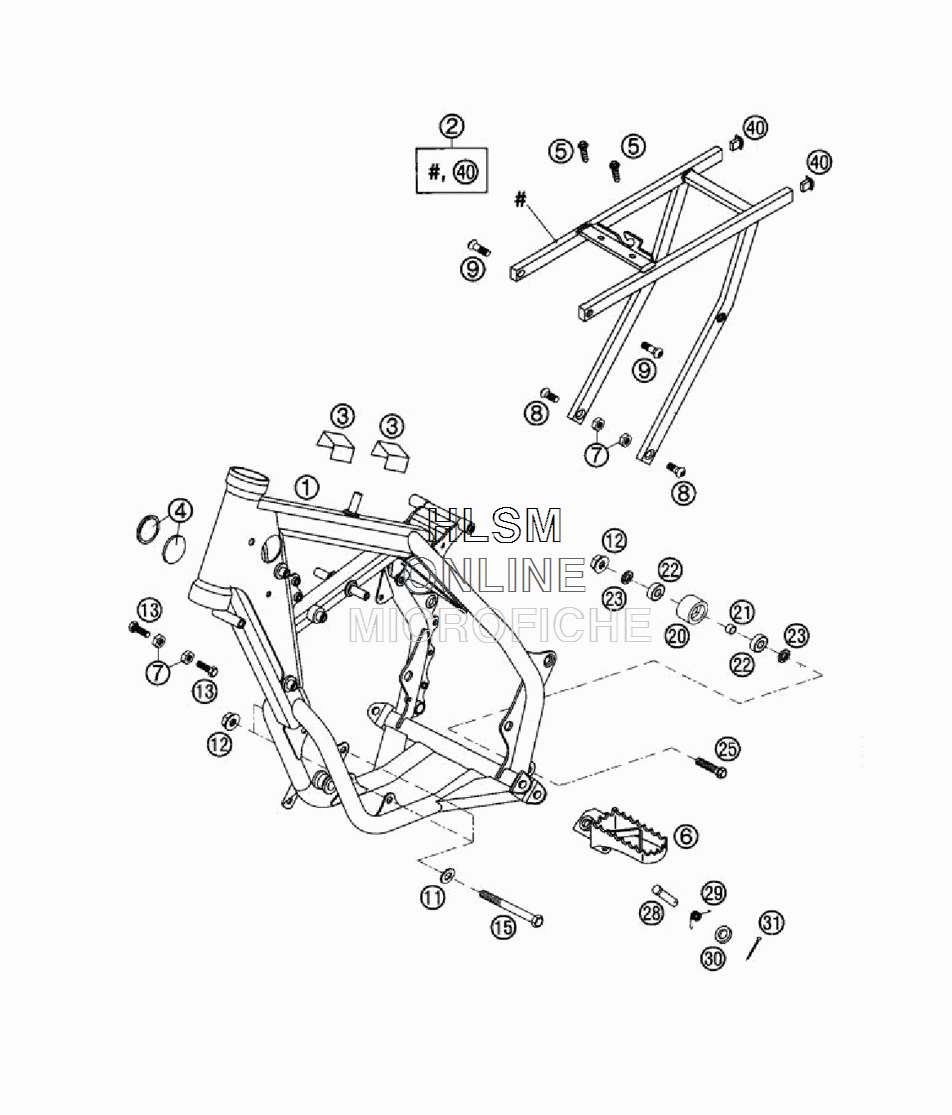

FRAME - SUB FRAME для Ktm 65 SX - 2002 года выпуска
-
№АртикулНазвание
-
146103001000 FRAMEFRAME
-
246103002044 SUB FRAMESUB FRAME
-
358711054050 METAMOLL FOR BATTERY BRACKETMETAMOLL FOR BATTERY BRACKET
-
454606004000 PLUG 37MMPLUG 37MM
-
50017060203 SPECIAL SCREW T60 6X20SPECIAL SCREW T60 6X20
-
65460304010090 FOOT PED L/S SILVERFOOT PED L/S SILVER
-
65460314010090 FOOT PED R/S SILVERFOOT PED R/S SILVER
-
70934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
854610052000 SPROCKET SCREW-AH M8X20SPROCKET SCREW-AH M8X20
-
954510052100 SPROCKET SCREW-AH M8X26 10.9SPROCKET SCREW-AH M8X26 10.9
-
110125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
1254310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
1359001037000 SPECIAL SCREW M8X26 WS=10SPECIAL SCREW M8X26 WS=10
-
150931080803 HH SCREW DIN0931-M 8X80HH SCREW DIN0931-M 8X80
-
2050203053000 CHAIN ROLL D=30MMCHAIN ROLL D=30MM
-
2174003021000 BUSHING 8.2 X 12 X 6BUSHING 8.2 X 12 X 6
-
220625006087 GROOVED BALL BEAR. 608 2RS C3GROOVED BALL BEAR. 608 2RS C3
-
2336003014000 LOCK WASHER 8MMLOCK WASHER 8MM
-
250015080353 HH COLLAR SCREW M 8X35 WS=10HH COLLAR SCREW M 8X35 WS=10
-
2854603044000 BOLT FOR FOOTREST 9,8 X 50BOLT FOR FOOTREST 9,8 X 50
-
2954603041000 FOOTREST SPRING L/S & R/SFOOTREST SPRING L/S & R/S
-
300125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
310094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
-
4050303002182 PLUG-IN CAP SW14 99PLUG-IN CAP SW14 99
