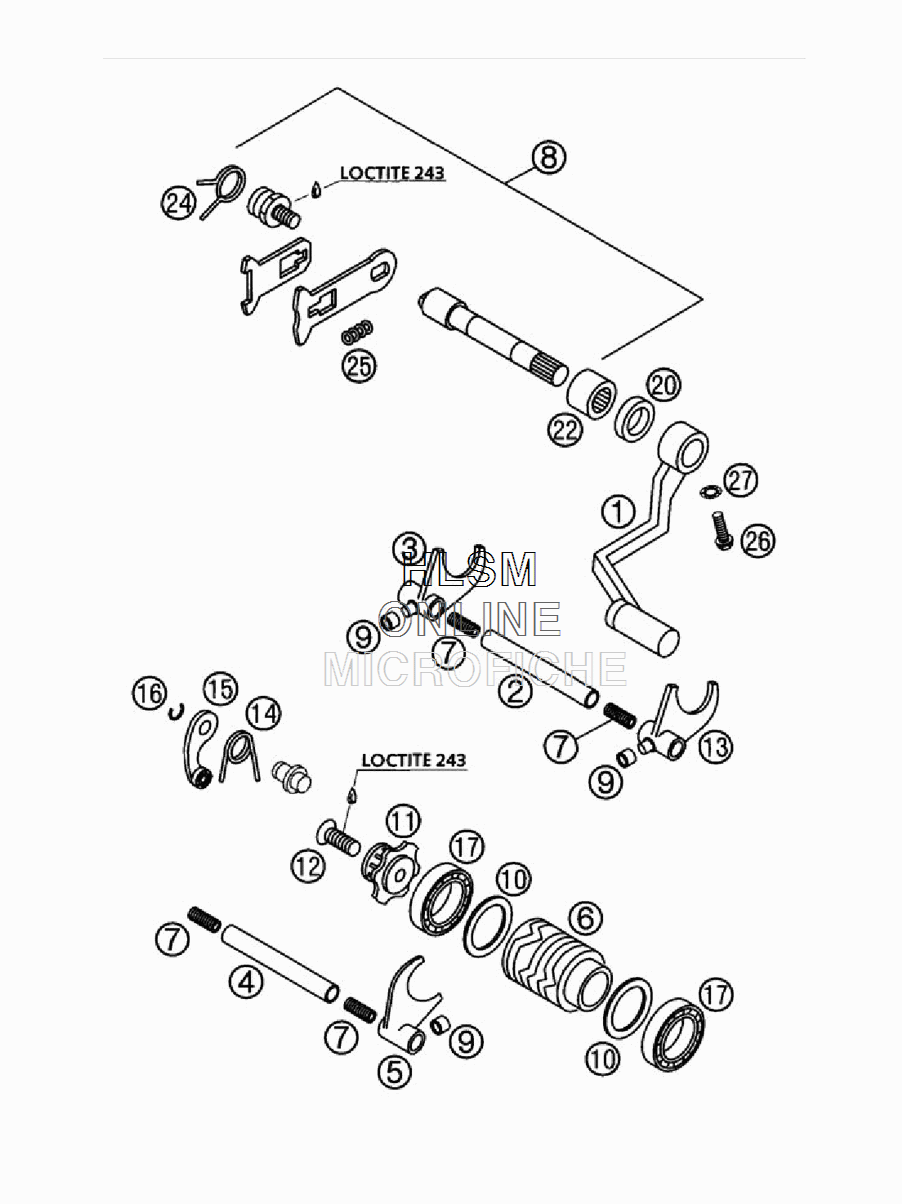

SHIFTING MECHANISM для Ktm 65 SX - 2002 года выпуска
-
№АртикулНазвание
-
146034031100 SHIFT LEVER COL.SHIFT LEVER COL.
-
246034020100 SHIFT RAILSHIFT RAIL
-
346034002100 SHIFT FORK COUNTERSHAFT R/SSHIFT FORK COUNTERSHAFT R/S
-
446034019100 SHIFT RAIL 1OX72MMSHIFT RAIL 1OX72MM
-
546034001100 SHIFT FORK MAIN SHAFTSHIFT FORK MAIN SHAFT
-
646034012300 SHIFT ROLLERSHIFT ROLLER
-
746034019052 SPRING SHIFT RAILSPRING SHIFT RAIL
-
846034005044 SHIFT SHAFT CPL.SHIFT SHAFT CPL.
-
950334018100 SHIFTING ROLLER 6X8X5,2SHIFTING ROLLER 6X8X5,2
-
1046034091100 SPACER WASHER-SET (0,2; 0,5; 0,6 MM)SPACER WASHER-SET (0,2; 0,5; 0,6 MM)
-
1146034015100 SHIFT DRUM LOCATINGSHIFT DRUM LOCATING
-
120991060303 FLAT HEAD SCREW DIN7991-M 6X30FLAT HEAD SCREW DIN7991-M 6X30
-
1346034002200 SHIFT FORK COUNT. 2.3.GEARSHIFT FORK COUNT. 2.3.GEAR
-
1446034023100 LOCKING LEVER SPRINGLOCKING LEVER SPRING
-
1546034024100 LOCKING LEVER CPL.LOCKING LEVER CPL.
-
160799100000 TAB WASHER DIN6799-RS10,0TAB WASHER DIN6799-RS10,0
-
170625618050 BALL BEARING 61805 C3BALL BEARING 61805 C3
-
200760122050 SHAFT SEAL RING 12X20X5 BSHAFT SEAL RING 12X20X5 B
-
2246034027000 NEEDLE BEARING 12X18X12NEEDLE BEARING 12X18X12
-
2446034014000 RETURN SPRINGRETURN SPRING
-
2546034009000 PRESSURE SPRING SLIDER PLATEPRESSURE SPRING SLIDER PLATE
-
260015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
270797060003 TOOTH LOCK WASH. DIN6797-A 6,4TOOTH LOCK WASH. DIN6797-A 6,4
