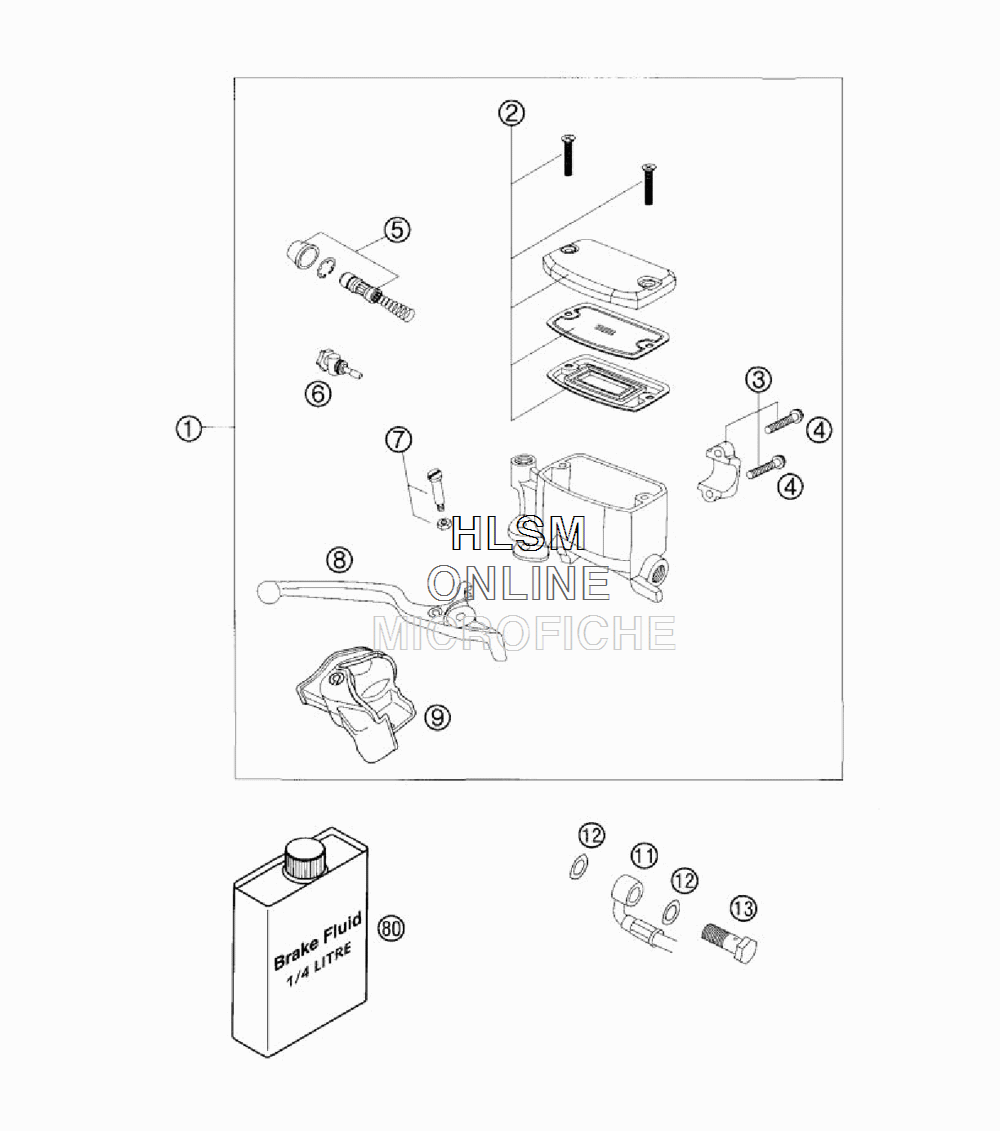

HAND BRAKE CYLINDER для Ktm 950 Adventure - 2004 года выпуска
-
№АртикулНазвание
-
160013001000 HAND BRAKE CYLINDERHAND BRAKE CYLINDER
-
260013003000 HAND BRAKE CYL. COVER CPL.HAND BRAKE CYL. COVER CPL.
-
360013005000 CLAMP CPL.CLAMP CPL.
-
40015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
560013008000 REP.SET PISTON LC8REP.SET PISTON LC8
-
660013007000 ADJUSTING SCREW CPL. LC8ADJUSTING SCREW CPL. LC8
-
760013006000 LEVER SCREW CPL.LEVER SCREW CPL.
-
860013002000 HAND BRAKE LEVERHAND BRAKE LEVER
-
960013004000 PROTECTION CAP HAND BRAKE CYL.PROTECTION CAP HAND BRAKE CYL.
-
1160013012100 BRAKE HOSE FRONTBRAKE HOSE FRONT
-
1242013226000 CU-SEAL RING DIN7603-10X16X1CU-SEAL RING DIN7603-10X16X1
-
1350213025000 HOLLOW SCREW M10X1X19HOLLOW SCREW M10X1X19
-
80306054 BRAKE FLUID DOT 5.1BRAKE FLUID DOT 5.1
