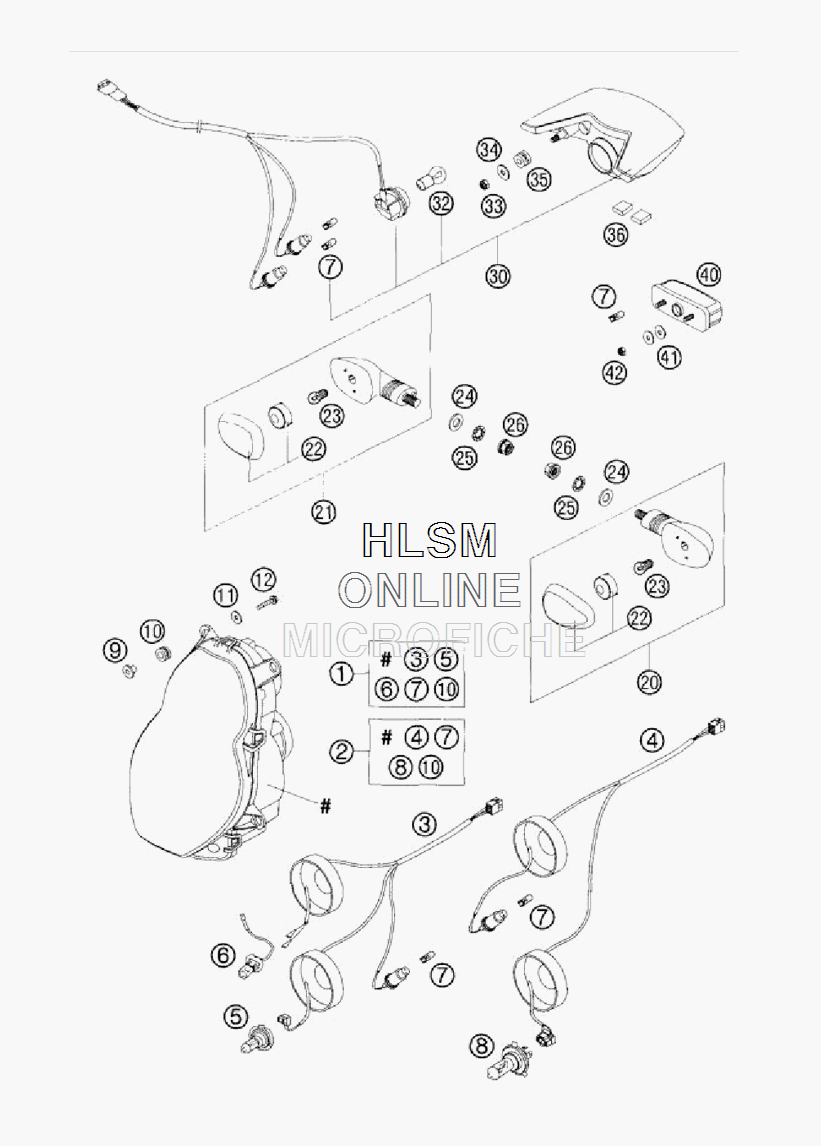

HEADLIGHT W/ REAR LIGHT - FLASHER для Ktm 950 Adventure - 2004 года выпуска
-
№АртикулНазвание
-
160014001000 HEAD LIGHT RIGHT TR.HEAD LIGHT RIGHT TR.
-
160014501000 HEAD LIGHT LEFT TRAFFICHEAD LIGHT LEFT TRAFFIC
-
260014801000 HEAD LIGHT RIGHT TR.HEAD LIGHT RIGHT TR.
-
360014001050 HEAD LIGHT WIRING HARN.HEAD LIGHT WIRING HARN.
-
460014801050 HEAD LIGHT WIRING HARN.HEAD LIGHT WIRING HARN.
-
560014003100 BULB H7 12V 55WBULB H7 12V 55W
-
660014003000 BULB H3 12V 55WBULB H3 12V 55W
-
749011435000 BULB 12V 5W (W2,1X9,5D)BULB 12V 5W (W2,1X9,5D)
-
857111038000 BULB H4 12V 60/55W (P43T)BULB H4 12V 60/55W (P43T)
-
960014007000 SPACER BUSHING HEAD LIGHTSPACER BUSHING HEAD LIGHT
-
1031008008000 RUBBER GROMMIT BLACKRUBBER GROMMIT BLACK
-
110021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
120016050253 SCREW FOR PLASTICSCREW FOR PLASTIC
-
2058414025100 FLASHER CPL.FRONT L/S REAR R/SFLASHER CPL.FRONT L/S REAR R/S
-
2158414026100 FLASHER CPL.FRONT R/S REAR L/SFLASHER CPL.FRONT R/S REAR L/S
-
2258414028100 FLASHER LENS L/S & R/S (WHITE, ORANGE)FLASHER LENS L/S & R/S (WHITE, ORANGE)
-
2344111015100 BULB 12V 10W (BA15S)BULB 12V 10W (BA15S)
-
240125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
250797100003 LOCK WASHER DIN6797-J10,5 ZILOCK WASHER DIN6797-J10,5 ZI
-
2658414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
-
3060014040000 REAR LIGHT CPL. LC8REAR LIGHT CPL. LC8
-
3260014048000 BULB 12V 21WBULB 12V 21W
-
330985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
340021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
3558214069051 RUBBER GROMMET 16X10,8X3RUBBER GROMMET 16X10,8X3
-
3660014040050 BUMP RUBBER 20X20X6 MMBUMP RUBBER 20X20X6 MM
-
4058414047000 LICENSE-PLATE ILLUMINATIONLICENSE-PLATE ILLUMINATION
-
410021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
420985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
