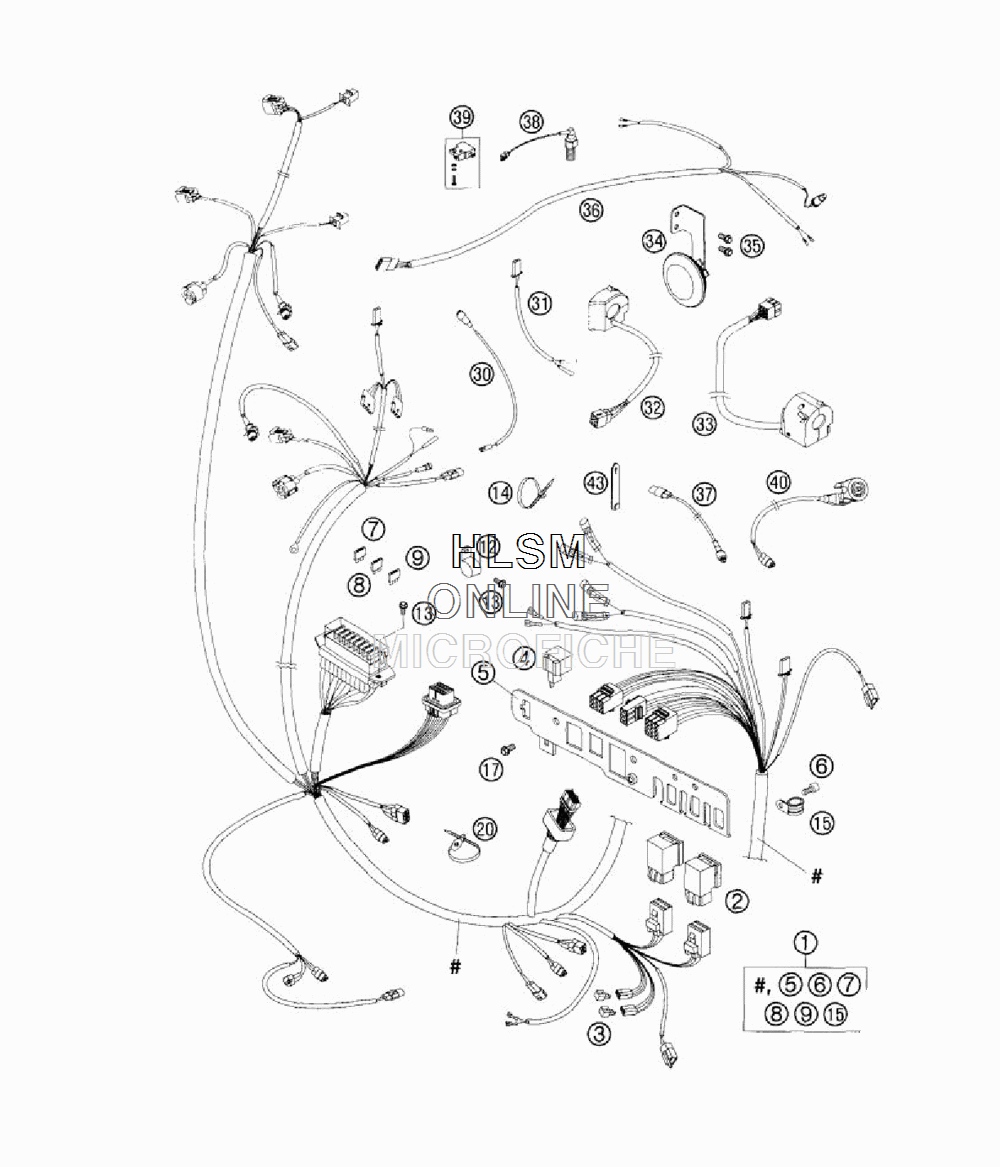

WIRING HARNESS для Ktm 950 Adventure - 2004 года выпуска
-
№АртикулНазвание
-
160011075000 MAIN WIRING HARNESSMAIN WIRING HARNESS
-
258411057000 STARTER RELAYSTARTER RELAY
-
358411096100 DIODE FOR E-START S3H-15DIODE FOR E-START S3H-15
-
444611207200 FLASHER UNIT SUMITOMOFLASHER UNIT SUMITOMO
-
560011083000 BRACKET FOR PLUGSBRACKET FOR PLUGS
-
60912050123 AH SCREW DIN0912-M 5X12AH SCREW DIN0912-M 5X12
-
758011109105 FUSE 5 AFUSE 5 A
-
858011109110 FUSE 10 AFUSE 10 A
-
958011109115 FUSE 15 AFUSE 15 A
-
1257013070400 PVC CLAMP HEYCO 11/16 3381PVC CLAMP HEYCO 11/16 3381
-
130015050123 HH COLLAR SCREW M 5X12 WS=8HH COLLAR SCREW M 5X12 WS=8
-
1444011076100 CABLE TIE 100/2,5MM BLACKCABLE TIE 100/2,5MM BLACK
-
1444011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
1444011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
1549007439000 CLAMP RSGU 15/12CLAMP RSGU 15/12
-
170015060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
2060011193000 CABLE TIE WITH PLUGCABLE TIE WITH PLUG
-
3060011092000 OIL-PRESSURE SWITCH CABLEOIL-PRESSURE SWITCH CABLE
-
3160011025000 FLASHER CABLE FRONTFLASHER CABLE FRONT
-
3260011074000 START-STOP SWITCH/LIGHT SW. (EURO/AUS)START-STOP SWITCH/LIGHT SW. (EURO/AUS)
-
3260011074100 START-STOP SWITCH (USA)START-STOP SWITCH (USA)
-
3360011070000 LIGHT SWITCH A.D.LIGHT SWITCH A.D.
-
3460011060000 DC HORN 12VDC HORN 12V
-
350015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
3660011076000 WIRING HARNESS REARWIRING HARNESS REAR
-
3758411049100 CLUTCH SWITCHCLUTCH SWITCH
-
3850311051100 BRAKE LIGHT SWITCH REARBRAKE LIGHT SWITCH REAR
-
3960011050000 BRAKE LIGHT SW. FRONT CPL.BRAKE LIGHT SW. FRONT CPL.
-
4060011045000 SIDE STAND SWITCHSIDE STAND SWITCH
-
4360011093045 RUBBER CABLE TIE 45MMRUBBER CABLE TIE 45MM
-
4360011093060 RUBBER CABLE TIE 60MMRUBBER CABLE TIE 60MM
-
4360011093075 RUBBER CABLE TIE 75MMRUBBER CABLE TIE 75MM
