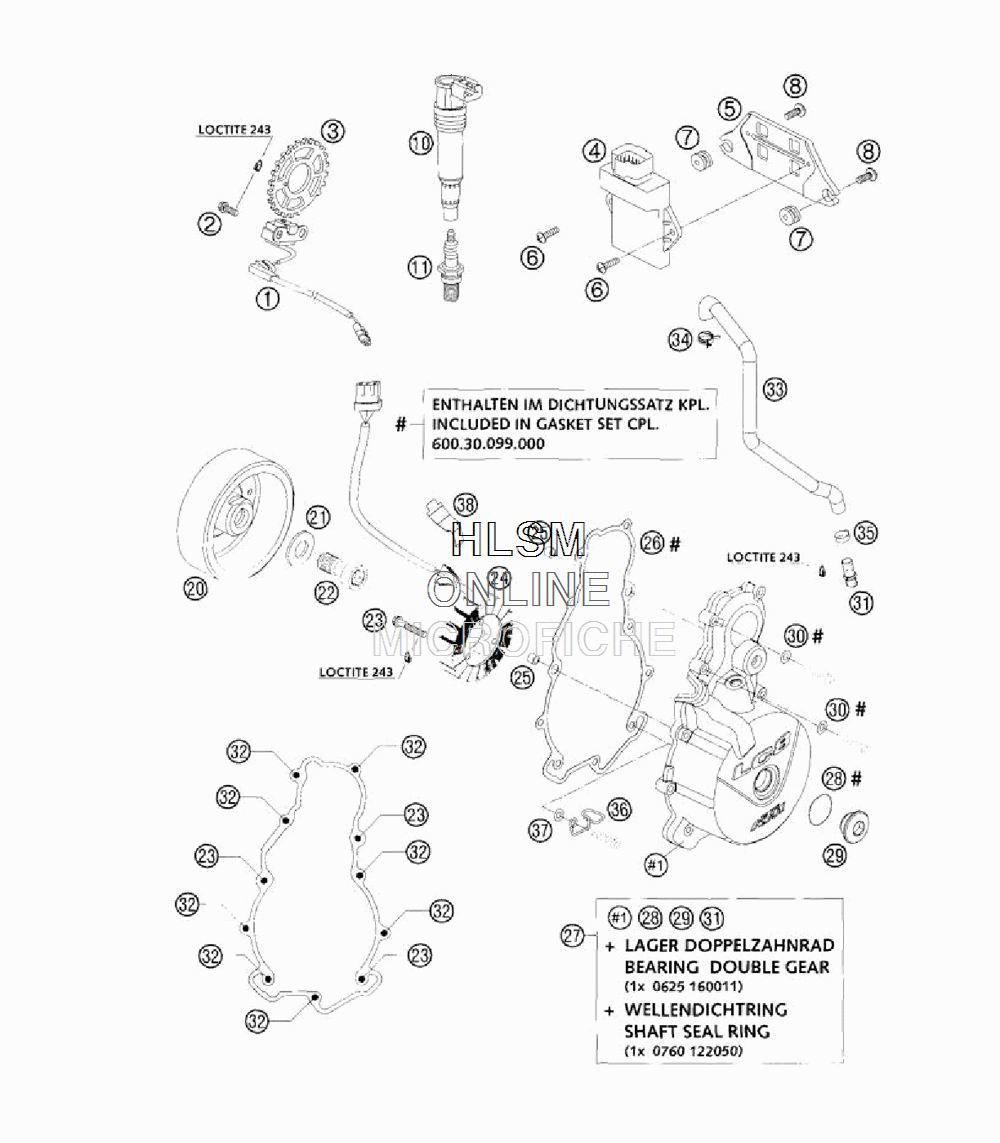

IGNITION SYSTEM DENSO для Ktm 950 Adventure - 2004 года выпуска
-
№АртикулНазвание
-
160039034100 PULSE GENERATOR LC8PULSE GENERATOR LC8
-
20015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
360039020100 TRIGGER WHEELTRIGGER WHEEL
-
460039031000 DIGITALBOX LC8DIGITALBOX LC8
-
560039028000 ADAPTER PLATE DIGITALBOXADAPTER PLATE DIGITALBOX
-
60081500181 SCREW FOR PLASTIC D=5X18SCREW FOR PLASTIC D=5X18
-
760039030000 VIBRATION DAMPER DIGITALBOXVIBRATION DAMPER DIGITALBOX
-
80014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
1060039006000 STICK COILSTICK COIL
-
1159039093000 SPARK PLUG CREEKSPARK PLUG CREEK
-
2060039005100 IGNITION ROTORIGNITION ROTOR
-
2160039040010 WASHER 17X32X4WASHER 17X32X4
-
2260039003000 AH EXPAND. SCREW M16X35 8.8AH EXPAND. SCREW M16X35 8.8
-
230015060353 HH COLLAR SCREW M 6X35 WS=8HH COLLAR SCREW M 6X35 WS=8
-
2460039004000 STATORSTATOR
-
2549030090000 DOWEL 9,8 X 7X 10DOWEL 9,8 X 7X 10
-
2660030040100 IGNIT.COVER GASK.MATRI.CS0,5MMIGNIT.COVER GASK.MATRI.CS0,5MM
-
2760030002044 IGNITION COVER CPL.IGNITION COVER CPL.
-
280770024025 O-RING 24X2,5 NBRO-RING 24X2,5 NBR
-
2960030094000 SCREW PLUG M24X1,5 PA 6.6SCREW PLUG M24X1,5 PA 6.6
-
300603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
3160030022000 VENTILATION CONNECTOR M16X1,5VENTILATION CONNECTOR M16X1,5
-
320015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
3360030087000 ENGINE BREATHING HOSEENGINE BREATHING HOSE
-
3400049220121 CLAMP 22X12 STD-DESCLAMP 22X12 STD-DES
-
3500050226706 VARIABLE ONE-EAR CLAMP 22,6MMVARIABLE ONE-EAR CLAMP 22,6MM
-
3660011094000 CABLE SUPPORTCABLE SUPPORT
-
370125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
3860039040020 CABLE SUPPORT GENERATORCABLE SUPPORT GENERATOR
