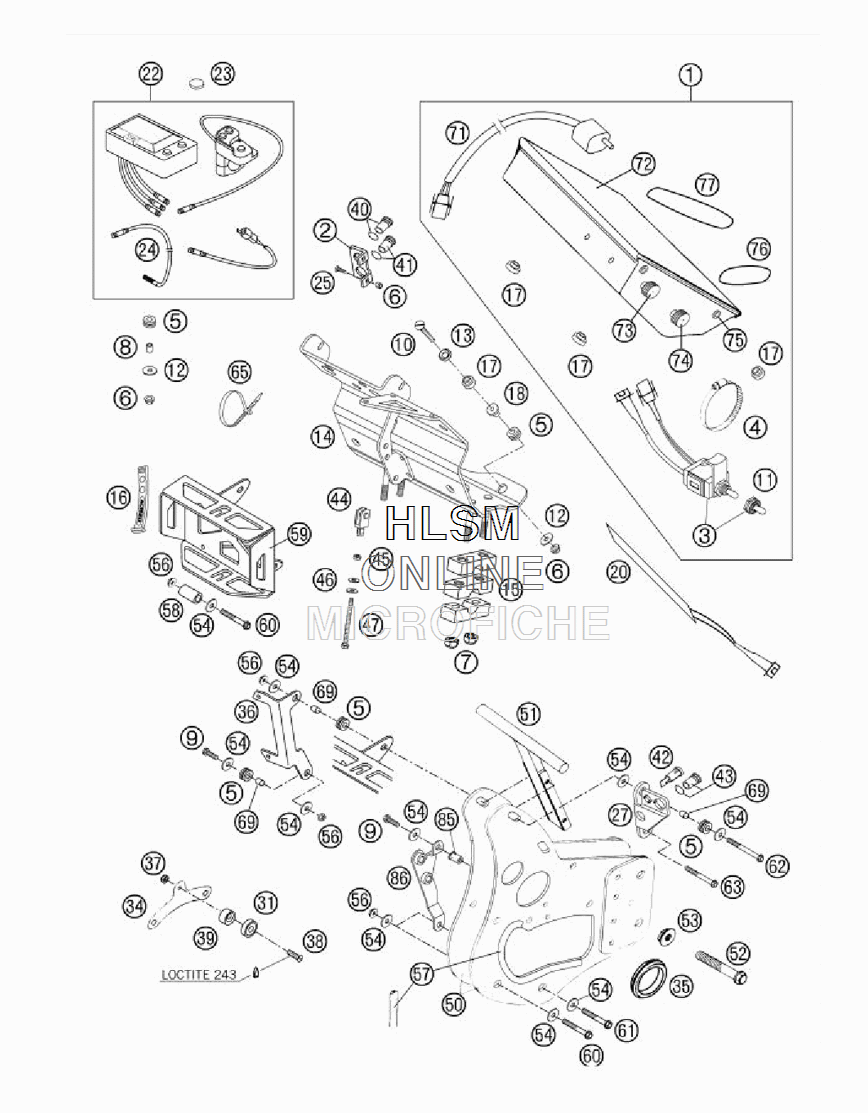

CONTROLS - ADD ON PARTS для Ktm 450 RALLYE - 2005 года выпуска
-
№АртикулНазвание
-
158512098144 ROADBOOK CPL.ROADBOOK CPL.
-
258511086000 BRACKET INDICATOR WATER OILBRACKET INDICATOR WATER OIL
-
358512075044 ROADBOOK SWITCH CPL.ROADBOOK SWITCH CPL.
-
410001020000 HOSE CLAMP GEMI 16-27HOSE CLAMP GEMI 16-27
-
531008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
60985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
70985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
858011039000 SPACER BUSHING 6,5 X 8 X 7SPACER BUSHING 6,5 X 8 X 7
-
90015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
100991050253 FLAT HEAD SCREW DIN7991-M 5X25FLAT HEAD SCREW DIN7991-M 5X25
-
1158512098160 NUT W.RUBBER COV. ROADB.SWITCHNUT W.RUBBER COV. ROADB.SWITCH
-
120021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
1340006006000 WASHER 6MMWASHER 6MM
-
1458512098150 ROAD BOOK BRACKETROAD BOOK BRACKET
-
1558312098003 MOUNTING CLAMP FOR ROADBOOKMOUNTING CLAMP FOR ROADBOOK
-
1654611186000 RUBBER BANDRUBBER BAND
-
1750213161000 COLLAR BUSHINGCOLLAR BUSHING
-
1860014007000 SPACER BUSHING HEAD LIGHTSPACER BUSHING HEAD LIGHT
-
2058512098100 LIGHT DIODE BRACKET CPL.LIGHT DIODE BRACKET CPL.
-
2258512085100 TRIPMASTER ICOTRIPMASTER ICO
-
2358512085160 BATTERY FOR ICO TRIPMASTERBATTERY FOR ICO TRIPMASTER
-
2458512090150 SENSORKIT ITEM NR. 124SENSORKIT ITEM NR. 124
-
250965050103 FLAT HEAD SCREW DIN0965-M 5X10FLAT HEAD SCREW DIN0965-M 5X10
-
2758511086200 BRACKET SWITCH INDICATORBRACKET SWITCH INDICATOR
-
3158314069050 MAGNET LOOSEMAGNET LOOSE
-
3458214050050 BRACKET SENSOR MAGNETBRACKET SENSOR MAGNET
-
3554635022000 SLEEVE FOR STEERING HEADSLEEVE FOR STEERING HEAD
-
3658511084000 BRACKET F. FUSE BOXBRACKET F. FUSE BOX
-
370985040003 SELF LOCKING NUT DIN0985-M 4SELF LOCKING NUT DIN0985-M 4
-
380966040203 OVAL HEAD SCREW DIN966 M4X20OVAL HEAD SCREW DIN966 M4X20
-
3958303063000 BRAKE LEVER STOPBRAKE LEVER STOP
-
4058011025000 OIL LEVEL LIGHT RED EXEOIL LEVEL LIGHT RED EXE
-
4158011022400 TEMPERATURE WARN. LIGHT REDTEMPERATURE WARN. LIGHT RED
-
4258011021200 HIGH BEAM INDICATOR LIGHT BLUEHIGH BEAM INDICATOR LIGHT BLUE
-
4358011024300 FLASHER INDICAT.LIGHT GREENFLASHER INDICAT.LIGHT GREEN
-
4458512078000 FORK HEAD WITH PINFORK HEAD WITH PIN
-
450934050003 HEXAGON NUT DIN0934-M 5HEXAGON NUT DIN0934-M 5
-
460125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
470931050603 HH SCREW DIN931 M5X60HH SCREW DIN931 M5X60
-
5058512089044 SUPPORT F.NAVIGATIONSEQUIPMENTSUPPORT F.NAVIGATIONSEQUIPMENT
-
5158512090000 SUPPORT FOR ROADBOOKSUPPORT FOR ROADBOOK
-
520015080503 HH COLLAR SCREW M 8X50 WS=10HH COLLAR SCREW M 8X50 WS=10
-
5354310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
540021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
5656509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
5758312085100 EDGE PROTECTOR PER METEREDGE PROTECTOR PER METER
-
5858512005000 SPACER BUSHING NAV.SUPPORTSPACER BUSHING NAV.SUPPORT
-
5958512077200 SUPPORT F.TROUBL.ST.SUPPORT F.TROUBL.ST.
-
600015060453 HH COLLAR SCREW M 6X45 WS=8HH COLLAR SCREW M 6X45 WS=8
-
610015060503 HH COLLAR SCREW M 6X50 WS=8HH COLLAR SCREW M 6X50 WS=8
-
620015060553 HH COLLAR SCREW M 6X55 WS=8HH COLLAR SCREW M 6X55 WS=8
-
630015060653 HH COLLAR SCREW M 6X65 WS=8HH COLLAR SCREW M 6X65 WS=8
-
6544011076100 CABLE TIE 100/2,5MM BLACKCABLE TIE 100/2,5MM BLACK
-
6544011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
6544011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
6954431032050 SPACER BUSHING 6X8X8,5SPACER BUSHING 6X8X8,5
-
7158512074044 ROADBOOK ENGINE CPL.ROADBOOK ENGINE CPL.
-
7258512074020 PLASTIC COVER FOR ROADBOOKPLASTIC COVER FOR ROADBOOK
-
7358512074030 ALU-BUTTON TOP FOR ROADBOOKALU-BUTTON TOP FOR ROADBOOK
-
7458512074040 ALU-BUTTON BASE F. ROADBOOKALU-BUTTON BASE F. ROADBOOK
-
7558512074050 PLASTIC BUSHING F. ROADBOOKPLASTIC BUSHING F. ROADBOOK
-
7658512074060 O-RING FOR ROADBOOK SHORTO-RING FOR ROADBOOK SHORT
-
7758512074070 O-RING FOR ROADBOOK LONGO-RING FOR ROADBOOK LONG
-
8555003139600 BLIND RIVET NUT M 6X15,5 STEELBLIND RIVET NUT M 6X15,5 STEEL
-
8658512086050 BRACKET FOR DIGI-BOXBRACKET FOR DIGI-BOX
