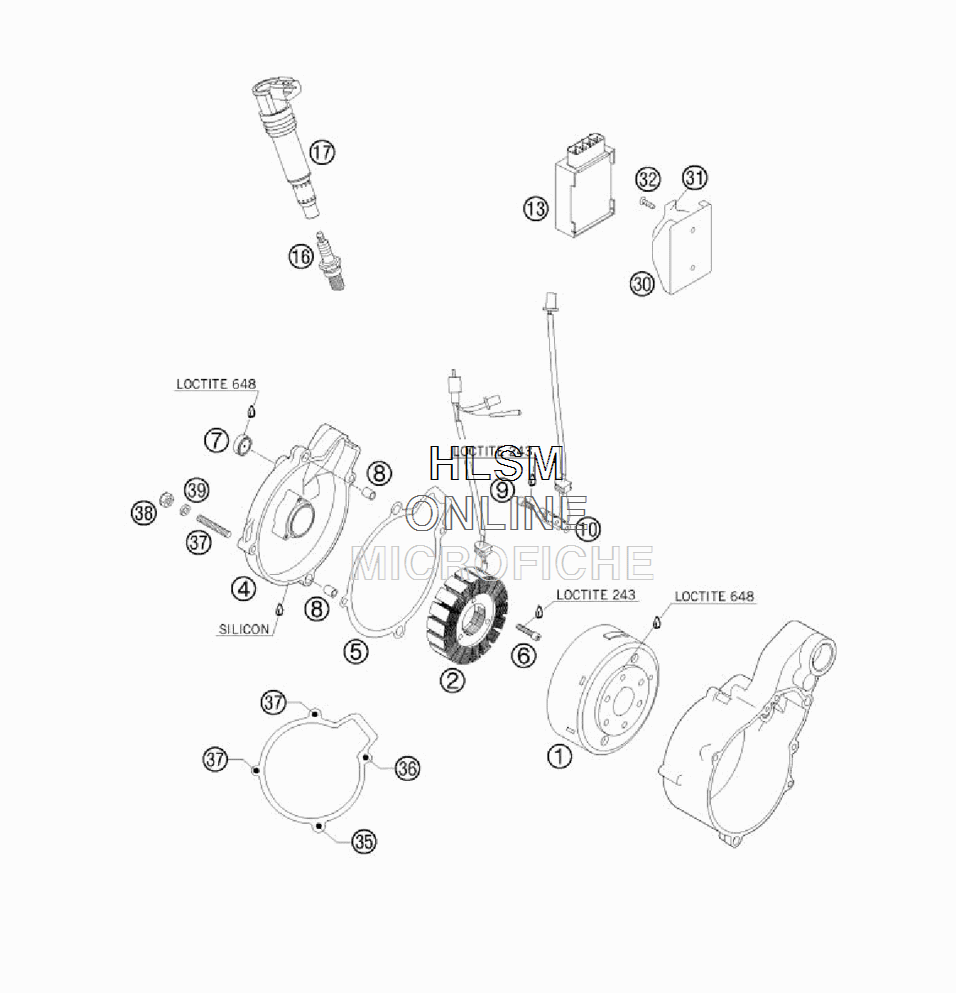

IGNITION SYSTEM KOKUSAN для Ktm 450 RALLYE - 2005 года выпуска
-
№АртикулНазвание
-
158439005100 FLYWHEEL KOKUSAN GP9128FLYWHEEL KOKUSAN GP9128
-
258439004000 STATOR KOKUSAN LOOSESTATOR KOKUSAN LOOSE
-
45843000214430 IGNITION COVER CPL. BLACKIGNITION COVER CPL. BLACK
-
558530040100 IGNITION COVER GASKET FORMEDIGNITION COVER GASKET FORMED
-
60912050253 AH SCREW DIN0912-M 5X25AH SCREW DIN0912-M 5X25
-
758430095100 INSPECT.GLASS GW 20-7 MINERALINSPECT.GLASS GW 20-7 MINERAL
-
849030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
90912050083 AH SCREW DIN 912 M 5X8AH SCREW DIN 912 M 5X8
-
1058439034000 PULSER COILPULSER COIL
-
1358839031000 CDI-BOXCDI-BOX
-
16R0539093000 SPARK PLUG DENSO X27ETRSPARK PLUG DENSO X27ETR
-
1758539006000 STICK COIL (IGN.C./SPA.P.C.)STICK COIL (IGN.C./SPA.P.C.)
-
3058439030200 RUBBER BRACKET FOR DIGI-BOXRUBBER BRACKET FOR DIGI-BOX
-
3158439030250 SUPPORT FOR RUBBER BRACKETSUPPORT FOR RUBBER BRACKET
-
320991060103 FLAT HEAD SCREW DIN7991 M6X10FLAT HEAD SCREW DIN7991 M6X10
-
350015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
360015060803 HH COLLAR SCREW M 6X80 WS=8HH COLLAR SCREW M 6X80 WS=8
-
370766060400 THREAD PIN WITH SLOT M6X40THREAD PIN WITH SLOT M6X40
-
380934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
3958036065100 CU-SEAL RING 6 X 10 X 2CU-SEAL RING 6 X 10 X 2
