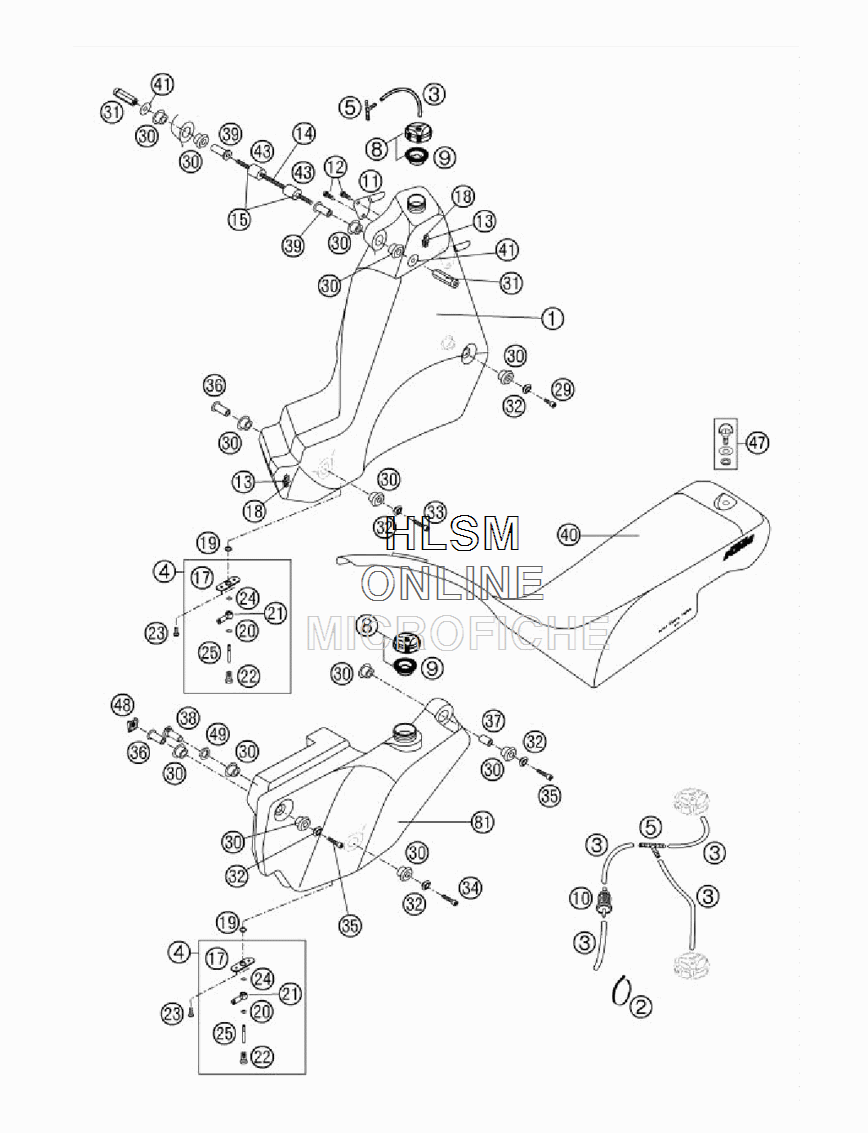

FUEL TANKS - SEAT для Ktm 450 RALLYE - 2005 года выпуска
-
№АртикулНазвание
-
15850701310004 FUEL TANK FR. L/SFUEL TANK FR. L/S
-
15850711310004 FUEL TANK FR. R/SFUEL TANK FR. R/S
-
244011076100 CABLE TIE 100/2,5MM BLACKCABLE TIE 100/2,5MM BLACK
-
358507007001 HOSE 8X5MMHOSE 8X5MM
-
458507008000 FUEL CONNECTION CPL.FUEL CONNECTION CPL.
-
559031083000 T-JOINT BREATHER HOSET-JOINT BREATHER HOSE
-
849007008044 FILLER CAP CPL. SMALLFILLER CAP CPL. SMALL
-
959007009000 GASKET FOR FILLER CAP HIGHGASKET FOR FILLER CAP HIGH
-
1058312099052 FUEL FILTER ELEMENTFUEL FILTER ELEMENT
-
1158554013051 SEAT HOLDING SHEET L/SSEAT HOLDING SHEET L/S
-
1158554013050 SEAT HOLDING SHEET R/SSEAT HOLDING SHEET R/S
-
120902060083 AH OVAL SCREW ISO 7380 M 6X8AH OVAL SCREW ISO 7380 M 6X8
-
1345007040050 QUICK RELEASE LATCHPLATEQUICK RELEASE LATCHPLATE
-
1458512067000 THREADPOLE M8 L=226 MMTHREADPOLE M8 L=226 MM
-
1555007016001 PVC-HOSE 7X10 PER METERPVC-HOSE 7X10 PER METER
-
1758507008050 FUEL FLANGE SHEETFUEL FLANGE SHEET
-
180981350133 SHEET MET.SCR.DIN7981-3,5X13SHEET MET.SCR.DIN7981-3,5X13
-
190770120020 O-RING 12,00X2,00 NBR 70O-RING 12,00X2,00 NBR 70
-
2042013226000 CU-SEAL RING DIN7603-10X16X1CU-SEAL RING DIN7603-10X16X1
-
2149138493000 RING COMPONENT 10/6MMRING COMPONENT 10/6MM
-
2258507025000 HOLLOW SCREW M10X1X24HOLLOW SCREW M10X1X24
-
230982480163 SHEET MET.SCR.DIN7982 4,8X16SHEET MET.SCR.DIN7982 4,8X16
-
240603101420 COPPER GASKET 10,2X14X2 MMCOPPER GASKET 10,2X14X2 MM
-
2558507008010 FUEL FLANGE-STRAINERFUEL FLANGE-STRAINER
-
290912080203 AH SCREW DIN912 M8X20AH SCREW DIN912 M8X20
-
3056401040000 RUBBER BUSHINGRUBBER BUSHING
-
3158507005000 TANK NUT M8 WITH AH-SCREWTANK NUT M8 WITH AH-SCREW
-
3258512062000 BUSHING SLEEVE OUTBUSHING SLEEVE OUT
-
330912080503 AH SCREW DIN912 M8X50AH SCREW DIN912 M8X50
-
340912080303 AH SCREW DIN0912-M 8X30AH SCREW DIN0912-M 8X30
-
350912080403 AH SCREW DIN912 M8X40AH SCREW DIN912 M8X40
-
3658512063000 BUSHING SLEEVE IN.34MMBUSHING SLEEVE IN.34MM
-
3758512069000 BUSHING SLEEVE IN. 25MMBUSHING SLEEVE IN. 25MM
-
3858512068100 FIXING SCREW TANK REARFIXING SCREW TANK REAR
-
3958512064000 BUSHING SLEEVE IN. 40MMBUSHING SLEEVE IN. 40MM
-
4058507040600 SEAT RALLYESEAT RALLYE
-
410021080003 WASHER DIN9021-A 8,4WASHER DIN9021-A 8,4
-
4358512065000 TANKDISTANCE 36 MMTANKDISTANCE 36 MM
-
4758307040551 QUICK RELEASE CPL.QUICK RELEASE CPL.
-
4854603048000 RANGE CHANGE METAL NUT M8RANGE CHANGE METAL NUT M8
-
4960512063050 NUT F.TANK BRAKET REARNUT F.TANK BRAKET REAR
-
815851209530004 SIDE TANK L/S ORANGESIDE TANK L/S ORANGE
-
815851209630004 SIDE TANK R/S ORANGESIDE TANK R/S ORANGE
