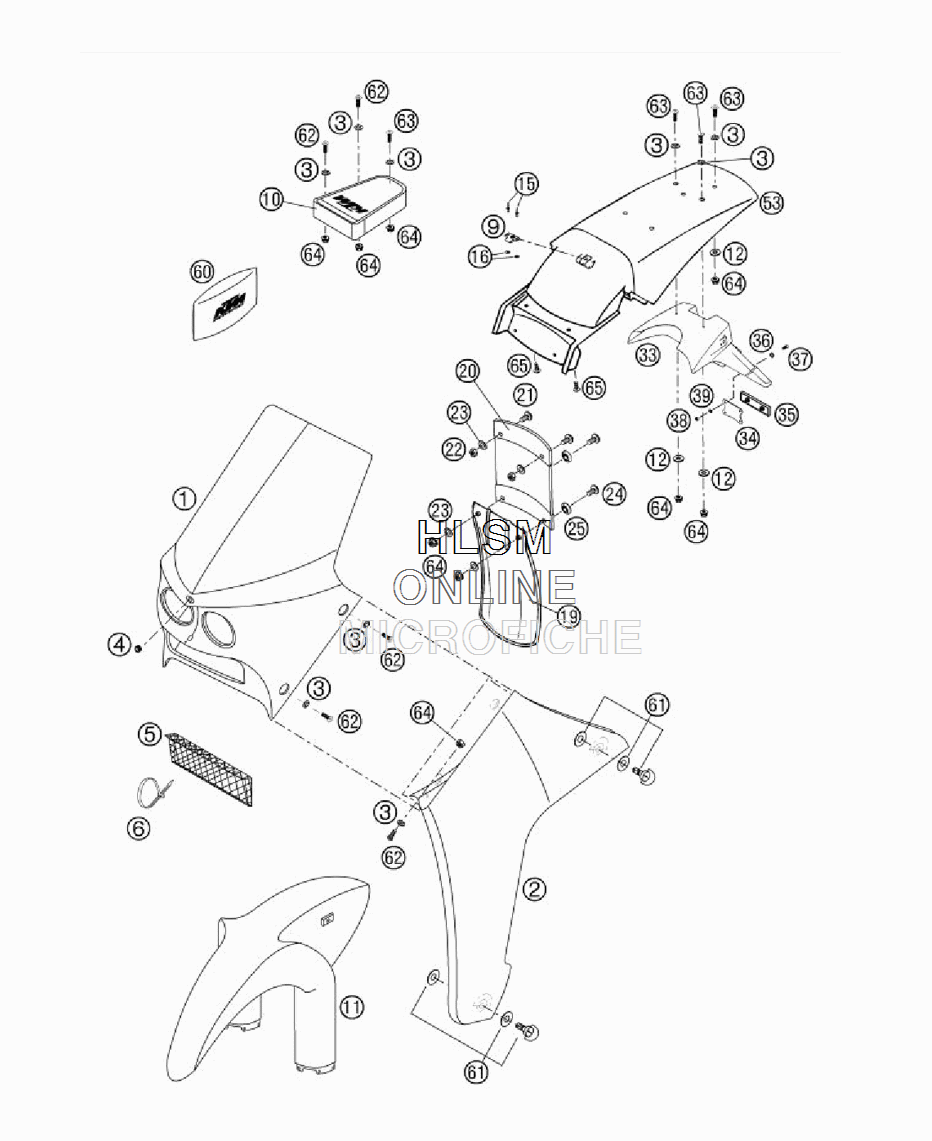

MASK W/ FENDERS для Ktm 450 RALLYE - 2005 года выпуска
-
№АртикулНазвание
-
15851100410004 COVER MIDDLE CPL.COVER MIDDLE CPL.
-
25851100310004 COVER L/S CPL.COVER L/S CPL.
-
25851100210004 COVER R/S CPL.COVER R/S CPL.
-
358308045000 SPECIAL WASHER 7X12,5X20 BLACKSPECIAL WASHER 7X12,5X20 BLACK
-
441001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
558512060000 OIL RADIATOR GRIDOIL RADIATOR GRID
-
644011076100 CABLE TIE 100/2,5MM BLACKCABLE TIE 100/2,5MM BLACK
-
644011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
958307042051 THRUST BEARING QUICK RELEASETHRUST BEARING QUICK RELEASE
-
1058312078000 TOOL BAG BLACKTOOL BAG BLACK
-
115850801010030 FENDER FRONTFENDER FRONT
-
1251006097000 WASHER 6,2X22X1,ST30,W.GALV.WASHER 6,2X22X1,ST30,W.GALV.
-
150011320800 DUMMY RIVET 3,0X 8 STEELDUMMY RIVET 3,0X 8 STEEL
-
160134030003 WASHER DIN0134- 3,2WASHER DIN0134- 3,2
-
1954606010000 SPLASH PROTECT.FOR FILTER BOXSPLASH PROTECT.FOR FILTER BOX
-
2058506010000 SPLASH PROTECTION TOP 01SPLASH PROTECTION TOP 01
-
210014060133 HH COLLAR SCREW M 6X13 WS=8HH COLLAR SCREW M 6X13 WS=8
-
220934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
230021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
240014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
2572210079000 BUCKETBUCKET
-
3358308013051 NUMBER PLATE CARRIERNUMBER PLATE CARRIER
-
3458412080050 BRACKET FOR REFLECTORBRACKET FOR REFLECTOR
-
3558412080000 REFLECTOR REDREFLECTOR RED
-
3640006006000 WASHER 6MMWASHER 6MM
-
370966050163 OVAL HEAD SCREW DIN0966-M 5X16OVAL HEAD SCREW DIN0966-M 5X16
-
380985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
390125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
535850801300004 FENDER REARFENDER REAR
-
6058329099000 TOOL SETTOOL SET
-
6145007040051 QUICK RELEASE CPL.QUICK RELEASE CPL.
-
620991060166 FL.HEAD SCR.DIN7991-M6X16 10.9FL.HEAD SCR.DIN7991-M6X16 10.9
-
630991060202 FLAT HEAD DIN7991-M 6X20FLAT HEAD DIN7991-M 6X20
-
6456509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
650014060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
