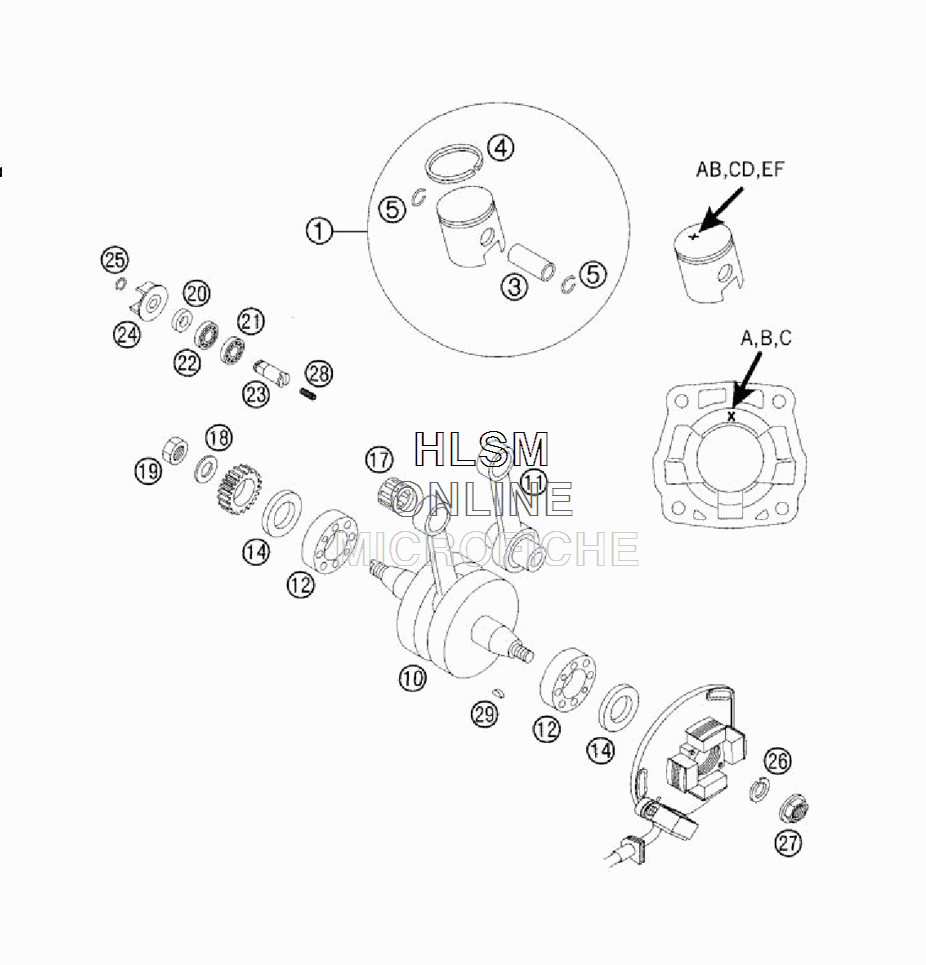

CRANKSHAFT W/ PISTON для Ktm 65 SX - 2005 года выпуска
-
№АртикулНазвание
-
146030007500A PISTON CPL. 45MM "A/B"PISTON CPL. 45MM "A/B"
-
146030007500C PISTON CPL. 45MM "C/D"PISTON CPL. 45MM "C/D"
-
146030007500E PISTON CPL. 45MM "E/F"PISTON CPL. 45MM "E/F"
-
346030033000 PISTON PIN 12X38PISTON PIN 12X38
-
446030030500 PISTON RING 45MMPISTON RING 45MM
-
545130074000 CIRCLIP 2001CIRCLIP 2001
-
1046030018200 CRANKSHAFT CPL. STROKE 40,8CRANKSHAFT CPL. STROKE 40,8
-
1146030015100 CONN.ROD REPAIR SETCONN.ROD REPAIR SET
-
1246030082200 GROOVED BALL BEAR.20X52X15 NTNGROOVED BALL BEAR.20X52X15 NTN
-
1447030076100 SEAL SHAFT RING 20X35X6 BTSLSEAL SHAFT RING 20X35X6 BTSL
-
1746030034000 NEEDLE BEAR.PISTONPIN 12X15X17NEEDLE BEAR.PISTONPIN 12X15X17
-
1846030078100 LOCKING WASHER14X20X1LOCKING WASHER14X20X1
-
1946030029100 HH-NUT M14X1,25X5HH-NUT M14X1,25X5
-
2046035056100 SHAFT SEAL RING 10X18X4SHAFT SEAL RING 10X18X4
-
2146035057000 WATER PUMP BEARING 10X19X5WATER PUMP BEARING 10X19X5
-
2246035058000 WA.PU.BEAR. 10X19X5 DOUBLEL/PWA.PU.BEAR. 10X19X5 DOUBLEL/P
-
2345135054000 WATER PUMP SHAFTWATER PUMP SHAFT
-
2446035055100 WATER PUMP WHEELWATER PUMP WHEEL
-
250471090010 CIRCLIP DIN0471- 9X1CIRCLIP DIN0471- 9X1
-
2650230029012 LOCKING RING VSK 12LOCKING RING VSK 12
-
2749030021000 COLLAR NUT M12X1 R/SCOLLAR NUT M12X1 R/S
-
2845135058000 SPRING FOR WATER PUMP SHAFTSPRING FOR WATER PUMP SHAFT
-
290888030050 WOODRUFF KEY DIN6888-3X5X13WOODRUFF KEY DIN6888-3X5X13
