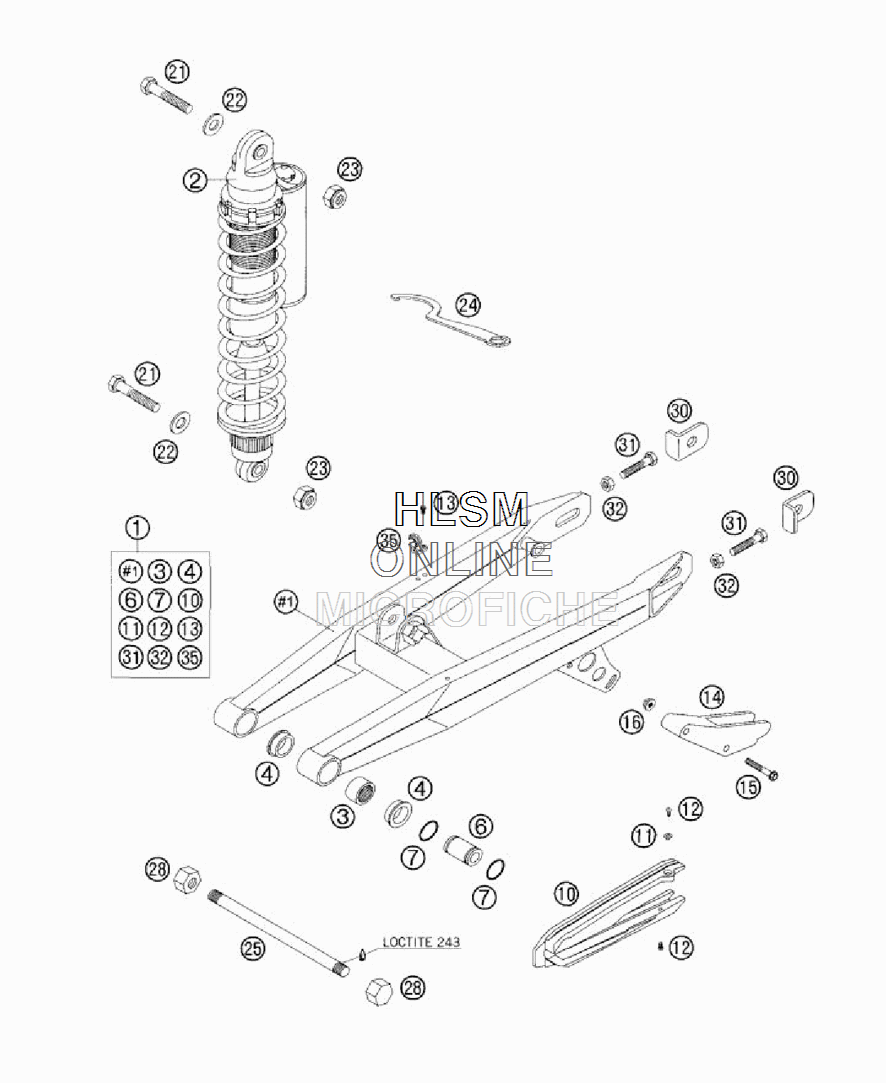

SWINGARM W/ MONOSHOCK для Ktm 65 SX - 2005 года выпуска
-
№АртикулНазвание
-
146104030044 SWINGARM CPL.SWINGARM CPL.
-
203187A03 MONOSHOCKMONOSHOCK
-
354603097000 NEEDLE BUSH HK 2016NEEDLE BUSH HK 2016
-
446004030070 SPACER BUSHING 20X26X30X9,7SPACER BUSHING 20X26X30X9,7
-
646004030071 BUSHING BOX 12X20X36,5BUSHING BOX 12X20X36,5
-
70770160021 O-RING 16,00X2,00 VITONO-RING 16,00X2,00 VITON
-
1046104066000 CHAIN SLID. GUARD FRO.CHAIN SLID. GUARD FRO.
-
1146104066050 BUSH FOR CHAIN SLIDER GUARDBUSH FOR CHAIN SLIDER GUARD
-
120010050103 SPECIAL SCREW M 5,0X10SPECIAL SCREW M 5,0X10
-
130009050103 SPECIAL SCREW M 5,0X10SPECIAL SCREW M 5,0X10
-
1446007066000 CHAIN GUIDE REARCHAIN GUIDE REAR
-
150015060403 HH COLLAR SCREW M 6X40 WS=8HH COLLAR SCREW M 6X40 WS=8
-
1656509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
210931100453 HH SCREW DIN0931-M10X45HH SCREW DIN0931-M10X45
-
220125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
2354310086100 SELF LOCKING NUT M10 CU WS=14SELF LOCKING NUT M10 CU WS=14
-
2446012024000 HOOK WRENCH FOR SHOCK ABSORBERHOOK WRENCH FOR SHOCK ABSORBER
-
2546004037000 SWINGARM BOLT 201MMM12X1SWINGARM BOLT 201MMM12X1
-
280917120103 NUT DIN917-M12X1NUT DIN917-M12X1
-
3046010083000 CHAIN ADJUSTERCHAIN ADJUSTER
-
310933060353 HH SCREW DIN0933-M 6X35HH SCREW DIN0933-M 6X35
-
320934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
3554611076100 RETAINCLAMPFORBRAKE HOSERETAINCLAMPFORBRAKE HOSE
