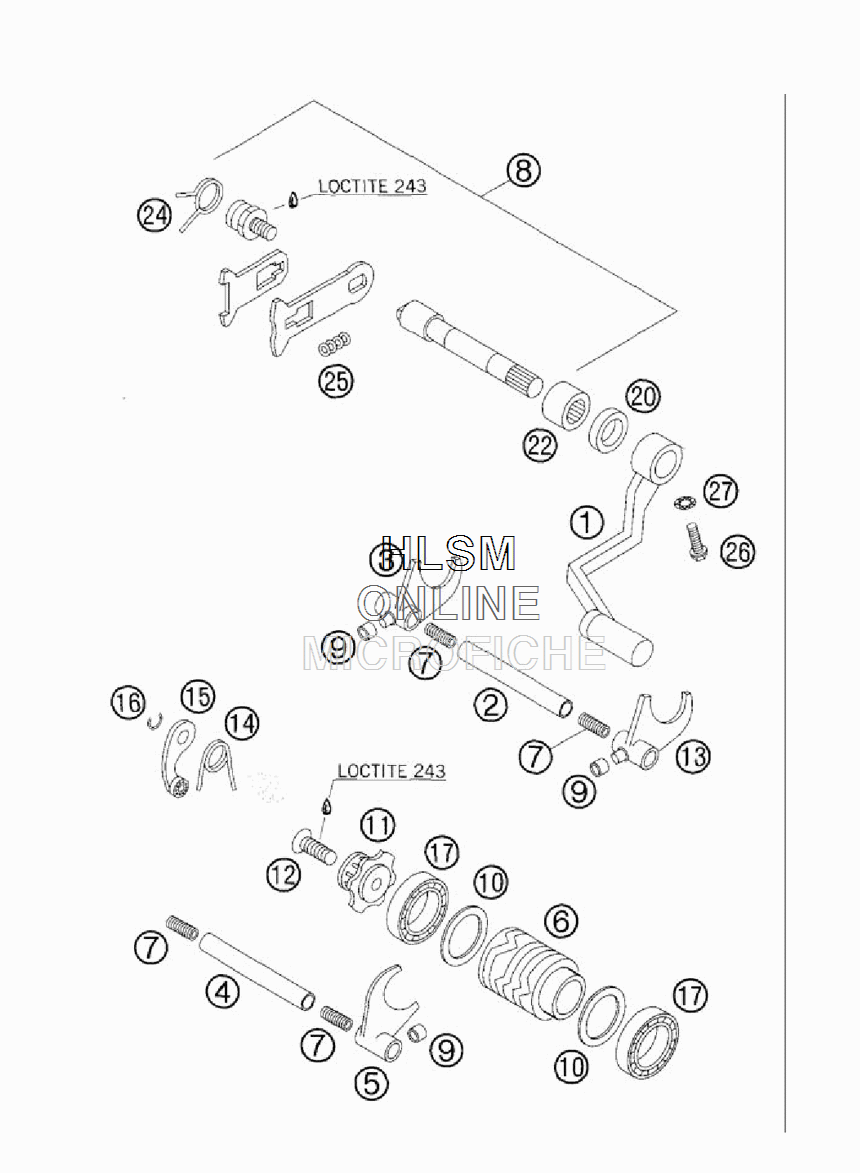

SHIFTING MECHANISM для Ktm 65 SX - 2005 года выпуска

№

Артикул

Название
1

46034031100 SHIFT LEVER COL.

SHIFT LEVER COL.

16 660 ₽
2

46034020100 SHIFT RAIL

SHIFT RAIL

2 310 ₽
3

46034002100 SHIFT FORK COUNTERSHAFT R/S

SHIFT FORK COUNTERSHAFT R/S

17 060 ₽
4

46034019100 SHIFT RAIL 10X72MM

SHIFT RAIL 10X72MM

5 090 ₽
5

46034001100 SHIFT FORK MAIN SHAFT

SHIFT FORK MAIN SHAFT

14 720 ₽
6

46034012300 SHIFT ROLLER

SHIFT ROLLER

24 040 ₽
7

46034019052 SPRING SHIFT RAIL

SPRING SHIFT RAIL

730 ₽
8

46034005044 SHIFT SHAFT CPL.

SHIFT SHAFT CPL.

29 180 ₽
9

50334018100 SHIFTING ROLLER 6X8X5,2

SHIFTING ROLLER 6X8X5,2

850 ₽
10

46034091100 SPACER WASHER-SET (0,2/0,5/0,6 MM)

SPACER WASHER-SET (0,2/0,5/0,6 MM)

640 ₽
11

46034015100 SHIFT DRUM LOCATING

SHIFT DRUM LOCATING

23 960 ₽
12

0991060303 FLAT HEAD SCREW DIN7991-M 6X30

FLAT HEAD SCREW DIN7991-M 6X30

320 ₽
13

46034002200 SHIFT FORK COUNT. 2.3 GEAR

SHIFT FORK COUNT. 2.3 GEAR

19 980 ₽
14

46034023100 LOCKING (EVER SPRING

LOCKING (EVER SPRING

440 ₽
15

46034024100 LOCKING LEVER CPL.

LOCKING LEVER CPL.

6 050 ₽
16

0471100010 CIRCLIP DIN0471-1OX1

CIRCLIP DIN0471-1OX1

290 ₽
17

0625618050 BALL BEARING 61805 C3

BALL BEARING 61805 C3

11 860 ₽
20

0760122050 SHAFT SEAL RING 12X20X5 B

SHAFT SEAL RING 12X20X5 B

2 160 ₽
22

46034027000 NEEDLE BEARING12X18X12

NEEDLE BEARING12X18X12

1 840 ₽
24

46034014000 RETURN SPRING

RETURN SPRING

1 110 ₽
25

46034009000 PRESSURE SPRING SLIDER PLATE

PRESSURE SPRING SLIDER PLATE

640 ₽
26

0015060203 HH COLLAR SCREW M 6X20 WS=8

HH COLLAR SCREW M 6X20 WS=8

500 ₽
27

0797060003 TOOTH LOCK WASH. DIN6797-A 6,4

TOOTH LOCK WASH. DIN6797-A 6,4

90 ₽
