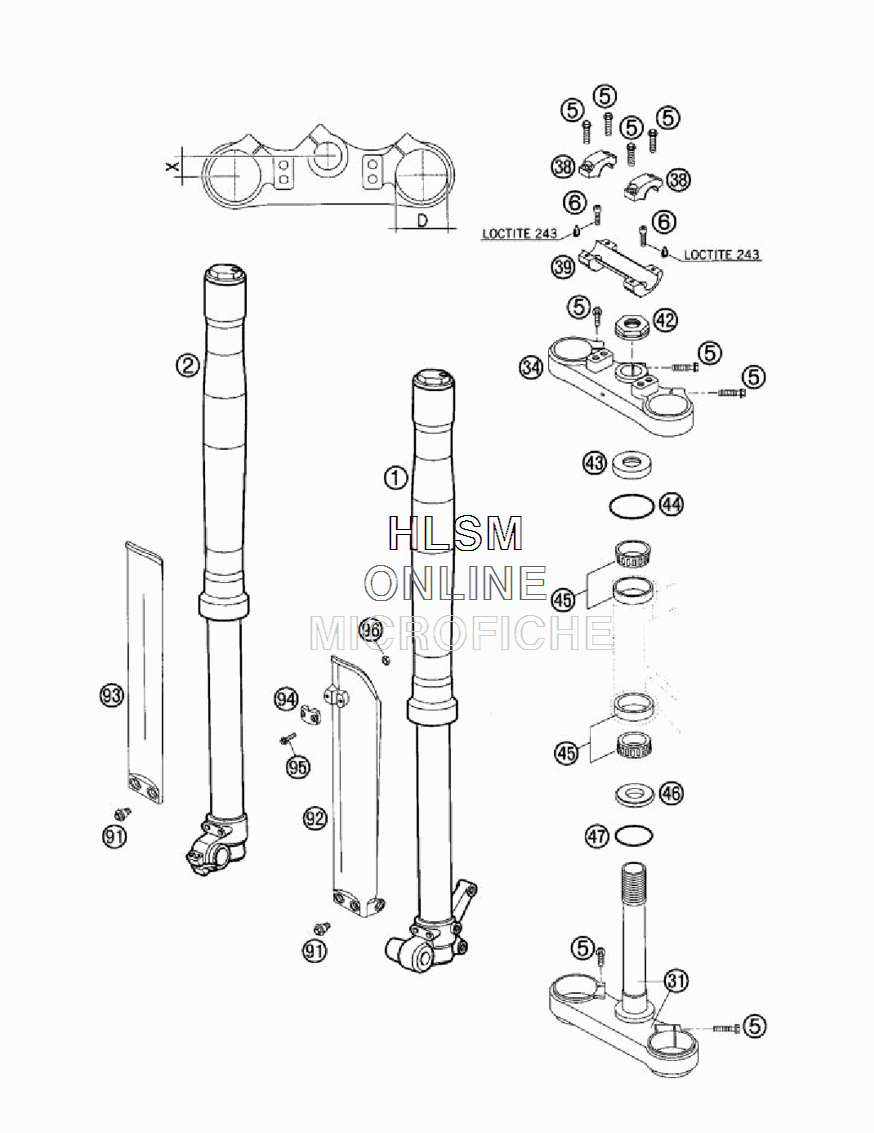

FRONT FORK MARZOCCHI для Ktm 65 SX - 2005 года выпуска
-
№АртикулНазвание
-
17631210/F FORK LEG US USD 35FORK LEG US USD 35
-
27631209/F FORK LEG R/S USD 35FORK LEG R/S USD 35
-
50015080303 HH COLLAR SCREW M 8X30 WS=10HH COLLAR SCREW M 8X30 WS=10
-
60912100250 AH SCREW DIN6912-M10X25,10.9,LAH SCREW DIN6912-M10X25,10.9,L
-
3177051116 BOT TRIPLE CLAMP + FORK TUBEBOT TRIPLE CLAMP + FORK TUBE
-
347501478 TOP TRIPLE CLAMPTOP TRIPLE CLAMP
-
3850301038000 HANDLEBAR CLAMP D=22MMHANDLEBAR CLAMP D=22MM
-
3959001039000 HANDLEBAR SUPPORT 22MMHANDLEBAR SUPPORT 22MM
-
4259030029000 NH NUT M20X1,5 WS=27 RIGHTNH NUT M20X1,5 WS=27 RIGHT
-
4349001086000 COVERING CAPCOVERING CAP
-
440770021300 O-RING 40,94X2,62 NBR70O-RING 40,94X2,62 NBR70
-
4549001081000 TAPERED ROLLER BEARING 32004XTAPERED ROLLER BEARING 32004X
-
4646001086000 PROTECTION RING 20,1X39X5PROTECTION RING 20,1X39X5
-
470770360030 O-RING 36,00X3,00 NBRO-RING 36,00X3,00 NBR
-
9159001092050 SPECIAL SCREW M6X12,5 WS=8SPECIAL SCREW M6X12,5 WS=8
-
9246101092000 FORK PROTECTION USFORK PROTECTION US
-
9346101093000 FORK PROTECTION R/SFORK PROTECTION R/S
-
9454601085000 BRAKE HOSE CLAMP MARZOCCHIBRAKE HOSE CLAMP MARZOCCHI
-
950015050163 HH COLLAR SCREW M 5X16 WS=8HH COLLAR SCREW M 5X16 WS=8
-
960985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
