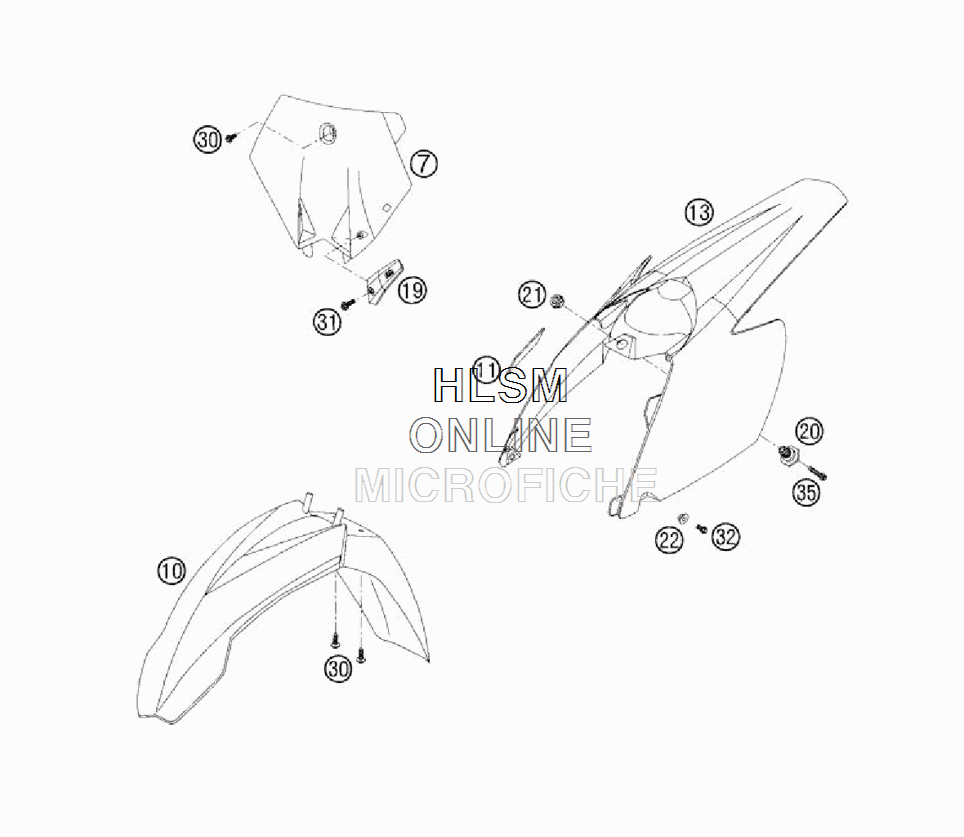

MASK W/ FENDERS для Ktm 85 SX - 2005 года выпуска
-
№АртикулНазвание
-
74700800700004 NUMBER PLATENUMBER PLATE
-
104700801000004 FENDER FRONTFENDER FRONT
-
1159003001099 METAMOLL 90X45X3MMMETAMOLL 90X45X3MM
-
134700801300004 REAR PARTREAR PART
-
1954808019000 BRAKE HOSE GUIDE BLACKBRAKE HOSE GUIDE BLACK
-
2054807048000 BUSHING FOR SEAT FASTENINGBUSHING FOR SEAT FASTENING
-
2150314057050 COLLAR NUT M12X1/WS17 H=5MMCOLLAR NUT M12X1/WS17 H=5MM
-
2250308052000 BUSH FOR SPOILER 6X11X16X5 MMBUSH FOR SPOILER 6X11X16X5 MM
-
300014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
310017060203 SPECIAL SCREW T60 6X20 WS=6SPECIAL SCREW T60 6X20 WS=6
-
320015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
350015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
