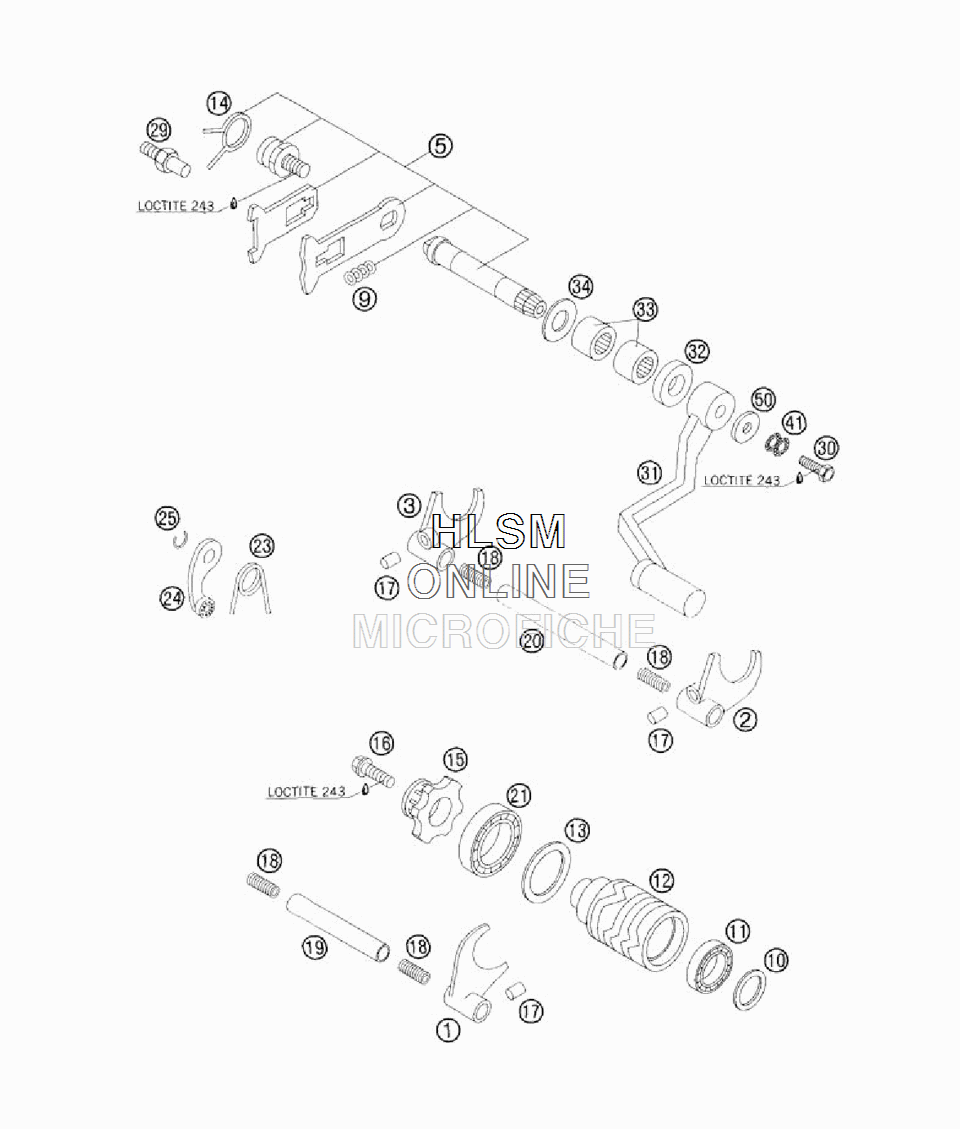

SHIFTING MECHANISM для Ktm 85 SX - 2005 года выпуска

№

Артикул

Название
1

47034001000 SHIFT FORK 5TH/6TH GEAR

SHIFT FORK 5TH/6TH GEAR

17 520 ₽
2

47034002000 SHIFT FORK 2ND/3RD GEAR

SHIFT FORK 2ND/3RD GEAR

19 130 ₽
3

47034003000 SHIFT FORK 1ST/4TH GEAR

SHIFT FORK 1ST/4TH GEAR

19 130 ₽
5

47034005044 SHIFTING SHAFT CPL.

SHIFTING SHAFT CPL.

30 110 ₽
9

46034009000 PRESSURE SPRING SLIDER PLATE

PRESSURE SPRING SLIDER PLATE

640 ₽
10

47034091000 WASHER 15X20X0,5

WASHER 15X20X0,5

1 230 ₽
11

0625069020 BALL BEARING 6902 15X28X7

BALL BEARING 6902 15X28X7

6 050 ₽
12

47034012000 SHIFT ROLLER

SHIFT ROLLER

21 990 ₽
13

47034092000 WASHER 25X32X0,5

WASHER 25X32X0,5

1 200 ₽
14

46034014000 RETURN SPRING

RETURN SPRING

1 110 ₽
15

47034015000 SHIFT LOCATION DRUM

SHIFT LOCATION DRUM

21 180 ₽
16

0015060253 HH COLLAR SCREW M 6X25 WS=8

HH COLLAR SCREW M 6X25 WS=8

560 ₽
17

0402061480 NEEDLE ROLLER DIN5402 6X14,8

NEEDLE ROLLER DIN5402 6X14,8

880 ₽
18

46034019052 SPRING SHIFT RAIL

SPRING SHIFT RAIL

730 ₽
19

47034019000 SHIFTING RAIL

SHIFTING RAIL

2 250 ₽
20

46034020100 SHIFT RAIL

SHIFT RAIL

2 310 ₽
21

0625618050 BALL BEARING 61805 C3

BALL BEARING 61805 C3

11 860 ₽
23

46034023100 LOCKING LEVER SPRING

LOCKING LEVER SPRING

440 ₽
24

46034024100 LOCKING LEVER CPL.

LOCKING LEVER CPL.

6 050 ₽
25

0471100010 CIRCLIP DIN0471-10X1

CIRCLIP DIN0471-10X1

290 ₽
29

47034029000 ARRESTER FOR SPRING

ARRESTER FOR SPRING

590 ₽
30

0933060205 HH SCREW DIN933 M6X20 10.9

HH SCREW DIN933 M6X20 10.9

210 ₽
31

47034031000 SHIFT LEVER

SHIFT LEVER

18 520 ₽
32

0760142460 SHAFT SEAL RING 14X24X6 B

SHAFT SEAL RING 14X24X6 B

2 430 ₽
33

54632095000 NEEDLE BEAR.HK 1412 14,6X20X12

NEEDLE BEAR.HK 1412 14,6X20X12

1 870 ₽
34

47033043000 STOP DISC 15X25X0,5

STOP DISC 15X25X0,5

120 ₽
41

50233041000 PAIR OF WASHERS M 6 NORDLOCK

PAIR OF WASHERS M 6 NORDLOCK

820 ₽
50

50232050001 STEEL WASHER 6,4X17X3

STEEL WASHER 6,4X17X3

1 230 ₽
