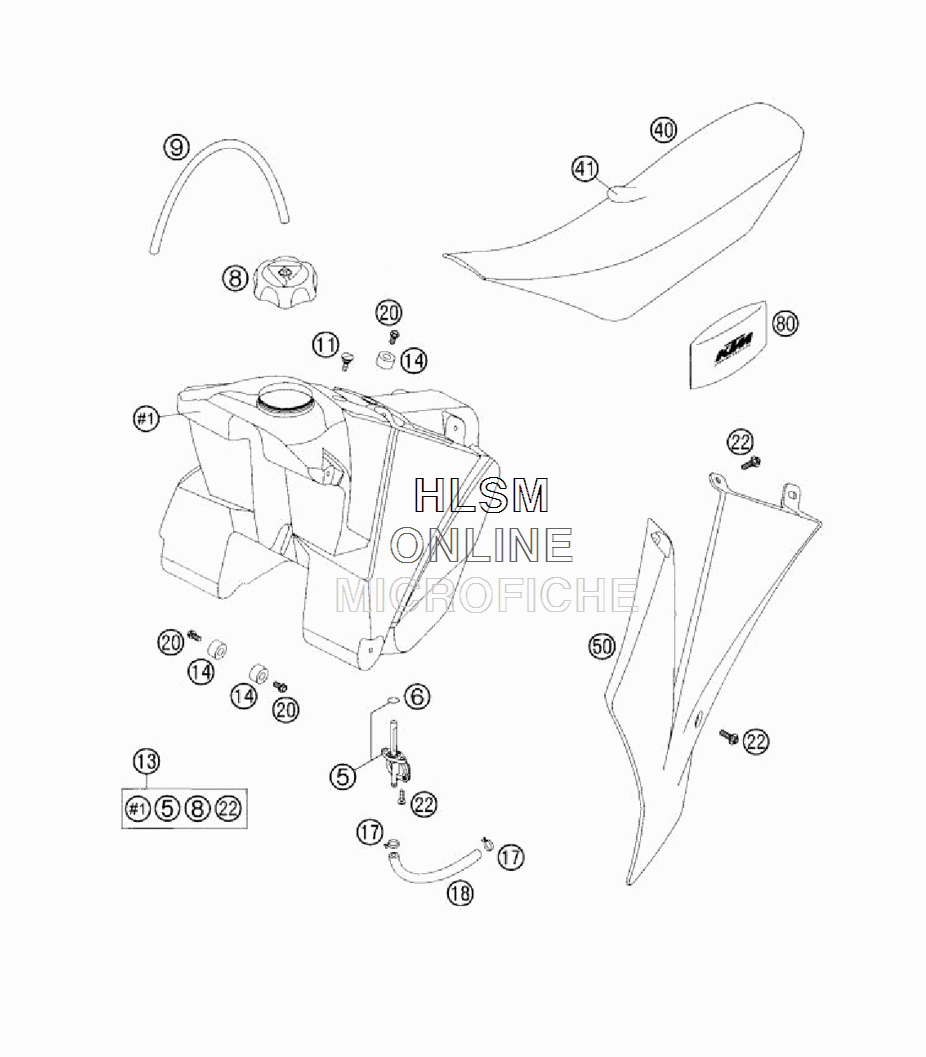

TANK - SEAT - COVER для Ktm 85 SX - 2005 года выпуска
-
№АртикулНазвание
-
550307005000 GAS COCK MIKUNI ON/OFFGAS COCK MIKUNI ON/OFF
-
60770130023 O-RING 13,00X2,30O-RING 13,00X2,30
-
849007008044 FILLER CAP CPL. SMALLFILLER CAP CPL. SMALL
-
950332095101 TUBE VINNYLAN 6X9 DVOHTUBE VINNYLAN 6X9 DVOH
-
1150307011000 SCREW SEAT FASTENING D=6X23/18SCREW SEAT FASTENING D=6X23/18
-
134700701300004 FUEL TANKFUEL TANK
-
1450307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
1745031005000 YDNAC-CLAMP FUEL HOSE (8MM)YDNAC-CLAMP FUEL HOSE (8MM)
-
1858307016001 FUEL HOSE VITON 6X1,5 PER/MFUEL HOSE VITON 6X1,5 PER/M
-
200015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
220017060203 SPECIAL SCREW T60 6X20 WS=6SPECIAL SCREW T60 6X20 WS=6
-
4047007040100 SEATSEAT
-
4147007040150 SEAT COVERSEAT COVER
-
504700805000004 SPOILER L/SSPOILER L/S
-
504700805100004 SPOILER R/SSPOILER R/S
-
8050212100100 TOOL SETTOOL SET
Все узлы модели:
- AIR FILTER BOX
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CARBURETOR KEIHIN PWK 28
- CLUTCH
- COOLING SYSTEM
- CRANKSHAFT W/ PISTON
- CYLINDER
- DECAL
- ENGINE CASE
- EXHAUST CONTROL
- EXHAUST SYSTEM
- FORK LEGS
- FRAME W/ SUB FRAME
- FRONT FORK
- FRONT WHEEL
- HAND BRAKE CYLINDER
- HANDLEBAR W/ CONTROLS
- IGNITION SYSTEM
- KICKSTARTER
- MASK W/ FENDERS
- MONOSHOCK - DISASSEMBLED
- REAR BRAKE CONTROL
- REAR WHEEL
- REED VALVE CASE
- SHIFTING MECHANISM
- SPECIAL TOOLS
- SWINGARM W/ MONOSHOCK
- • TANK - SEAT - COVER
- TRANSMISSION - COUNTERSHAFT
- TRANSMISSION - MAIN SHAFT
