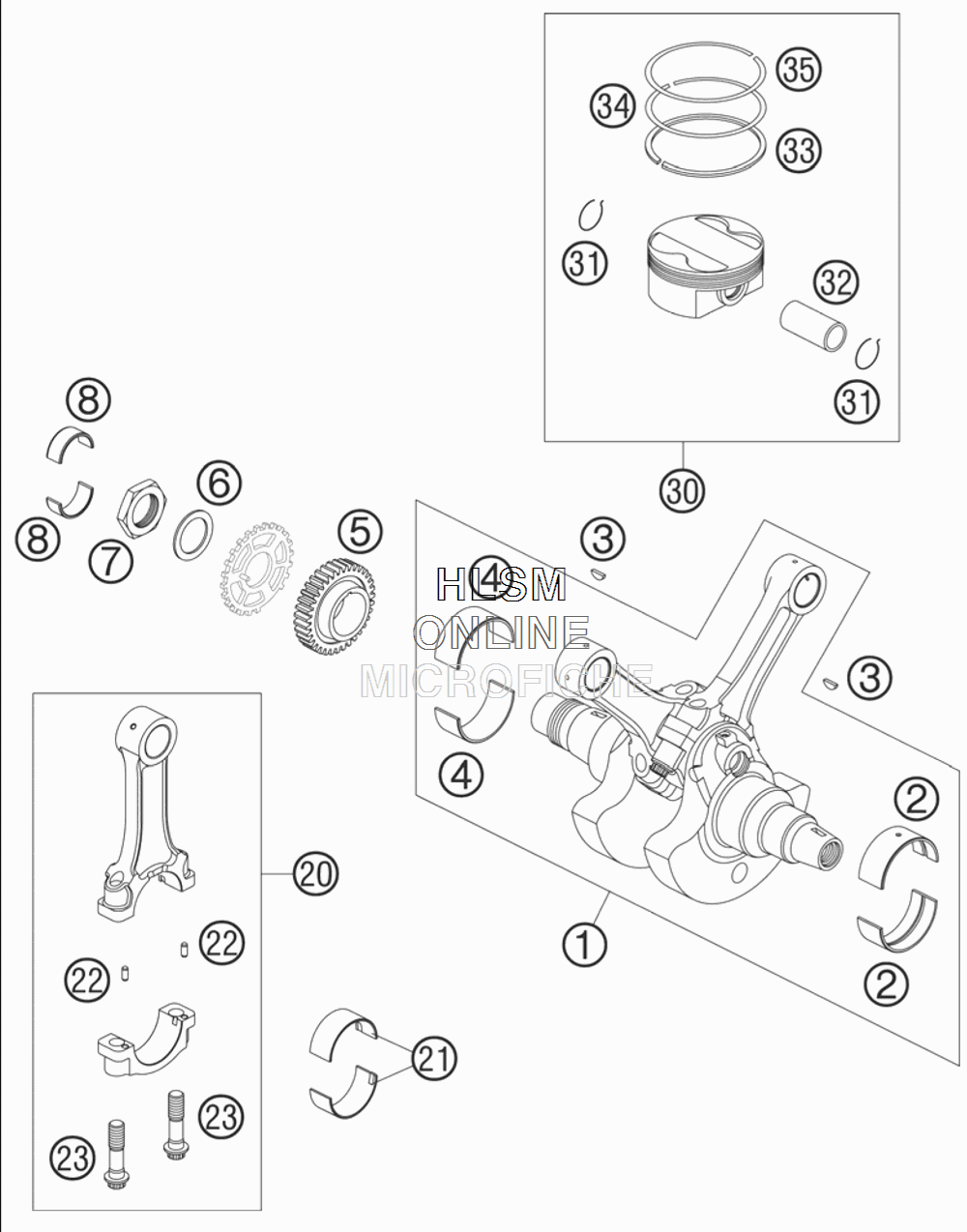

CRANKSHAFT PISTON для Ktm 990 Superduke R - 2007 года выпуска
-
№АртикулНазвание
-
161030018100 CRANKSHAFT CPL.CRANKSHAFT CPL.
-
260030082000 1 SPLIT BEAR.BUSH SIZE 1 REDSPLIT BEAR.BUSH SIZE 1 RED
-
260030082000 2 SPLIT BEAR.BUSH SIZE 2 BLUESPLIT BEAR.BUSH SIZE 2 BLUE
-
260030082000 3 SPLIT BEAR.BUSH SIZE 3 YELLOWSPLIT BEAR.BUSH SIZE 3 YELLOW
-
30888040050 WOODRUFF KEY DIN6888 4X5X13WOODRUFF KEY DIN6888 4X5X13
-
460030182000 1 SPLIT BEAR.BUSH SIZE 1 REDSPLIT BEAR.BUSH SIZE 1 RED
-
460030182000 2 SPLIT BEAR.BUSH SIZE 2 BLUESPLIT BEAR.BUSH SIZE 2 BLUE
-
460030182000 3 SPLIT BEAR.BUSH SIZE 3 YELLOWSPLIT BEAR.BUSH SIZE 3 YELLOW
-
560032023035 PRIMARY PINION 35 TPRIMARY PINION 35 T
-
660032009040 WASHER 33,2X46X2WASHER 33,2X46X2
-
760032009050 HH-NUT M33X1,5 L/S WS46HH-NUT M33X1,5 L/S WS46
-
860030026010 BUSHING BOWL 28X32X13BUSHING BOWL 28X32X13
-
2060030013244 CONNECTING ROD CPL.CONNECTING ROD CPL.
-
2160030013051 BUSH.BOWL PACK. SIZE 1 REDBUSH.BOWL PACK. SIZE 1 RED
-
2160030013052 BUSH.BOWL PACK. SIZE 2 BLUEBUSH.BOWL PACK. SIZE 2 BLUE
-
2160030013053 BUSH.BOWL PACK. SIZE 3 YELLOWBUSH.BOWL PACK. SIZE 3 YELLOW
-
2260030015061 CYLINDER PINCYLINDER PIN
-
2360030015260 CONNECTING-ROD BOLT MJ10X1CONNECTING-ROD BOLT MJ10X1
-
3061030007000I PISTON I D=101PISTON I D=101
-
3061030007000II PISTON II D=101PISTON II D=101
-
3158430074000 CIRCLIP 22 X 1,6CIRCLIP 22 X 1,6
-
3275030033000 PISTON PIN EB 22/72 D22X56PISTON PIN EB 22/72 D22X56
-
3361030032000 OIL SCRAPER RING D=101MMOIL SCRAPER RING D=101MM
-
3458330932100 TAP.COMPR.PISTON RING 101X1,25TAP.COMPR.PISTON RING 101X1,25
-
3561030030000 PISTON RING "L" D=101 H=1,25PISTON RING "L" D=101 H=1,25
