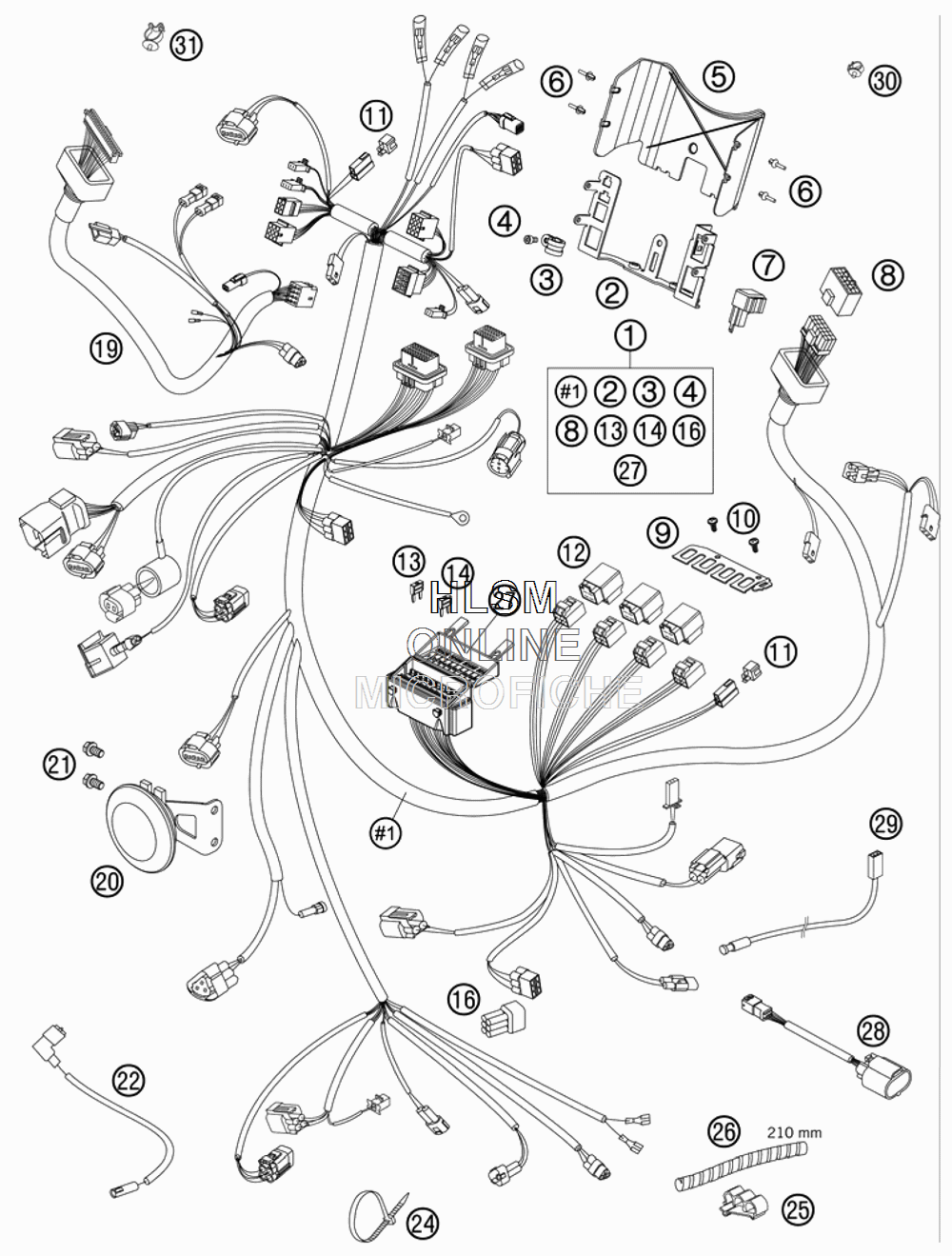

WIRING HARNESS для Ktm 990 Superduke R - 2007 года выпуска
-
№АртикулНазвание
-
161111075100 WIRING HARNESS 990 SDWIRING HARNESS 990 SD
-
261011083000 BRACKET FOR PLUGS CPL.BRACKET FOR PLUGS CPL.
-
349007439000 CLAMP RSGU 15/12CLAMP RSGU 15/12
-
40912050103 AH SCREW DIN0912-M 5X10AH SCREW DIN0912-M 5X10
-
561011083020 BRACKET FOR PLUGS COVERBRACKET FOR PLUGS COVER
-
660003088000 PLASTIC CAP FOR M6PLASTIC CAP FOR M6
-
744611207200 FLASHER UNIT 97FLASHER UNIT 97
-
861011075020 DUMMY PLUG ALARM SYSTEMDUMMY PLUG ALARM SYSTEM
-
961111057050 BRACKET RELAYBRACKET RELAY
-
100016050121 SCREW FOR PLASTIC 50X12SCREW FOR PLASTIC 50X12
-
1158411096100 DIODE S3H-15 97DIODE S3H-15 97
-
1261111057000 RELAY CM1A-R-12V-H80RELAY CM1A-R-12V-H80
-
1375011088010 FUSE 10AFUSE 10A
-
1475011088015 FUSE 15AFUSE 15A
-
16000700000BH SPARE CONNECTOR BH DIAGNOSTIC PORTSPARE CONNECTOR BH DIAGNOSTIC PORT
-
1961111079000 WIRING HARNESS FRONTWIRING HARNESS FRONT
-
2061011060000 DC HORN CPL.DC HORN CPL.
-
210015060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
2260011092000 OIL-PRESSURE SWITCH CABLEOIL-PRESSURE SWITCH CABLE
-
2444011076100 CABLE TIE 100/2,5MM BLACKCABLE TIE 100/2,5MM BLACK
-
2444011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
2444011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
2561011093000 WIRING HOLDERWIRING HOLDER
-
2658513001000 SPIRAL HOSE D=9MM 00SPIRAL HOSE D=9MM 00
-
2775011087050 RUBBER CASING FOR FUSE BOXRUBBER CASING FOR FUSE BOX
-
2861111020000 STARTER INTERLOCKSTARTER INTERLOCK
-
2961111018000 TEMPERATURE SENSORTEMPERATURE SENSOR
-
3058111076000 CABLE SUPPORT KHS NR.150-47610CABLE SUPPORT KHS NR.150-47610
-
3161111041000 CABLE SUPPORTCABLE SUPPORT
