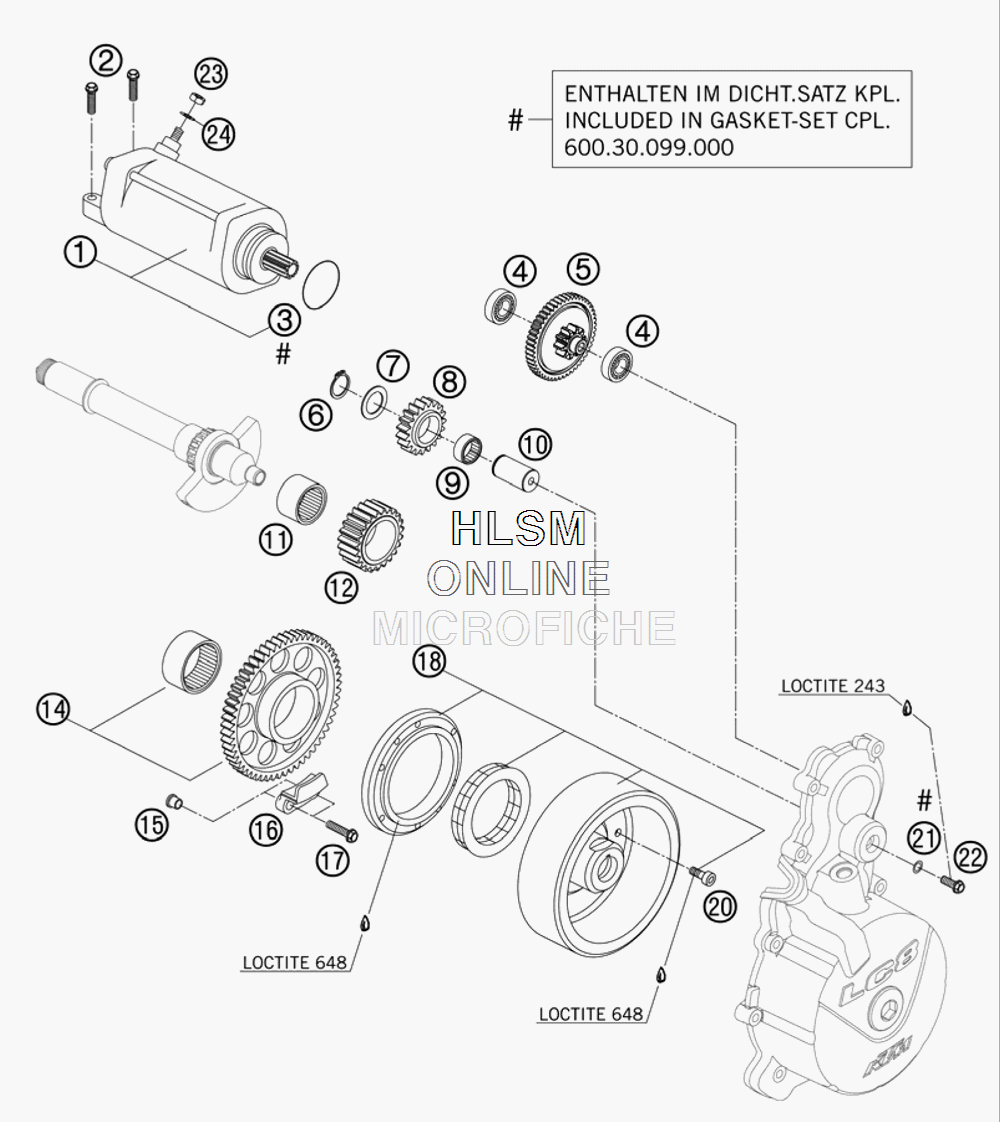

ELECTRIC STARTER для Ktm 990 Superduke R - 2007 года выпуска

№

Артикул

Название
1

60040001000 E-STARTER ENGINE CPL.

E-STARTER ENGINE CPL.

83 440 ₽
2

0015060253 HH COLLAR SCREW M 6X25 WS=8

HH COLLAR SCREW M 6X25 WS=8

560 ₽
3

0770335030 O-RING 33,5X3 VITON

O-RING 33,5X3 VITON

1 140 ₽
4

0625160011 GROOV.BALL BEAR. 16001 JRX C3

GROOV.BALL BEAR. 16001 JRX C3

3 270 ₽
5

60040017000 TORQUE LIMITER

TORQUE LIMITER

30 670 ₽
6

0471170010 CIRCLIP DIN0471-17X1

CIRCLIP DIN0471-17X1

290 ₽
7

50333041000 STOP DISC 17,2X26X1B

STOP DISC 17,2X26X1B

530 ₽
8

60040022219 IDLER GEAR 1 19Z

IDLER GEAR 1 19Z

11 010 ₽
9

0405172110 NEEDLE BEARING K 17X21X10

NEEDLE BEARING K 17X21X10

3 420 ₽
10

60040023100 BEARING BOLT

BEARING BOLT

2 650 ₽
11

0618253220 NEEDLE BUSH HK2520 25/32/20

NEEDLE BUSH HK2520 25/32/20

2 460 ₽
12

60040022023 IDLER GEAR 2 23-T

IDLER GEAR 2 23-T

9 760 ₽
14

60040020000 FREEWHEEL GEAR WH. 57-T CPL.

FREEWHEEL GEAR WH. 57-T CPL.

35 310 ₽
15

60040027050 SUPPORTING SLEEVE

SUPPORTING SLEEVE

1 690 ₽
16

60040027000 FREEWHEEL HOLDER

FREEWHEEL HOLDER

1 260 ₽
17

0015060253 HH COLLAR SCREW M 6X25 WS=8

HH COLLAR SCREW M 6X25 WS=8

560 ₽
18

60039005100 IGNITION ROTOR INCL. FREEWHEEL

IGNITION ROTOR INCL. FREEWHEEL

170 ₽
20

0984060166 AH SCREW DIN6912 M6X16 10.9

AH SCREW DIN6912 M6X16 10.9

1 400 ₽
21

0603061001 CU-SEAL RING DIN7603-6X10X1

CU-SEAL RING DIN7603-6X10X1

320 ₽
22

0015060163 HH COLLAR SCREW M 6X16 WS=8

HH COLLAR SCREW M 6X16 WS=8

290 ₽
23

0985060003 SELF LOCK. NUT DIN0985-M 6

SELF LOCK. NUT DIN0985-M 6

290 ₽
24

0125060003 WASHER DIN0125-A 6,4

WASHER DIN0125-A 6,4

120 ₽
