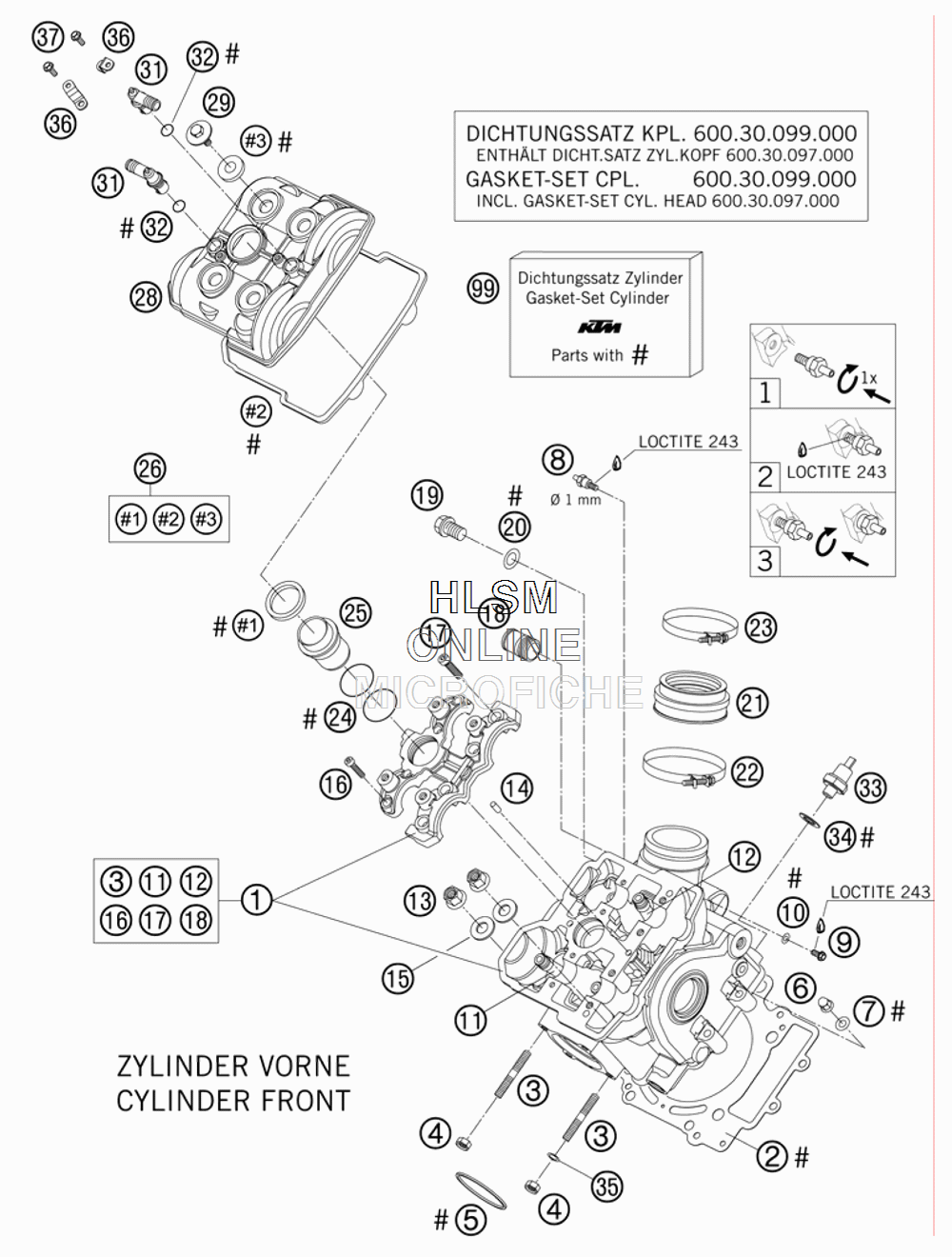

CYLINDER HEAD FRONT для Ktm 990 Superduke R - 2007 года выпуска
-
№АртикулНазвание
-
161136020044 CYLINDER HEAD CPL. FRONTCYLINDER HEAD CPL. FRONT
-
260030036000 CYLINDER HEAD GASKET 0,5 101MMCYLINDER HEAD GASKET 0,5 101MM
-
30835080256 STUD DIN0835-M 8X25 10.9STUD DIN0835-M 8X25 10.9
-
451010086100 SELF LOCKING NUT M 8 CUSELF LOCKING NUT M 8 CU
-
561005005000 EXHAUST GASKETEXHAUST GASKET
-
60587060000 CAP NUT M6 DIN1587 02CAP NUT M6 DIN1587 02
-
70125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
861036023100 VACUUM CONECTIONVACUUM CONECTION
-
90015060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
100603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
1160036026100 VALVE GIUDE OUTLETVALVE GIUDE OUTLET
-
1260036025100 VALVE GIUDE INDUCTIONVALVE GIUDE INDUCTION
-
1360036078200 COLLAR NUT M 10 WS=13COLLAR NUT M 10 WS=13
-
140402050980 NEEDLE ROLLER DIN5402 5X9,8NEEDLE ROLLER DIN5402 5X9,8
-
1560036078050 SHIM 10,2X19X1,5MMSHIM 10,2X19X1,5MM
-
160912060255 AH SCREW DIN0912-M 6X25 10.9AH SCREW DIN0912-M 6X25 10.9
-
170984080305 AH SCREW DIN7984-M 8X30 10.9AH SCREW DIN7984-M 8X30 10.9
-
1858030010200 SCREW IN NOZZLE M20X1,5SCREW IN NOZZLE M20X1,5
-
190908120153 PLUG DIN0908-M12X1,5PLUG DIN0908-M12X1,5
-
2058038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
2161036044000 RUBBERSLEEVE INTAKE FLANGERUBBERSLEEVE INTAKE FLANGE
-
2261036048000 HOSE CLAMP GEMI 66MMHOSE CLAMP GEMI 66MM
-
2361036047000 HOSE CLAMP GEMI 63MMHOSE CLAMP GEMI 63MM
-
240770298178 O-RING 29,87X1,78 VITONO-RING 29,87X1,78 VITON
-
2561136075000 INSERT SPARK-PLUG SHAFTINSERT SPARK-PLUG SHAFT
-
2660036099000 VALVE COVER GASKET SET FR+RRVALVE COVER GASKET SET FR+RR
-
2860036052000 VALVE COVER FRONTVALVE COVER FRONT
-
2960036052020 COLLAR SCREW M 6 WS=10COLLAR SCREW M 6 WS=10
-
3160038082000 ANGLE CONNECTORANGLE CONNECTOR
-
320770080020 O-RING 8X2 SILICONEO-RING 8X2 SILICONE
-
3360038091100 OIL-PRESSURE SWITCHOIL-PRESSURE SWITCH
-
340603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
3561005009000 SPACER BUSH. 8,5X15X7,5SPACER BUSH. 8,5X15X7,5
-
3660038082050 ANGLE CONNECTOR BRACKET PANELANGLE CONNECTOR BRACKET PANEL
-
370009050103 SPECIAL SCREW M 5,0X10SPECIAL SCREW M 5,0X10
-
9960030097000 GASKET SET CYL. HEAD CPL.GASKET SET CYL. HEAD CPL.
