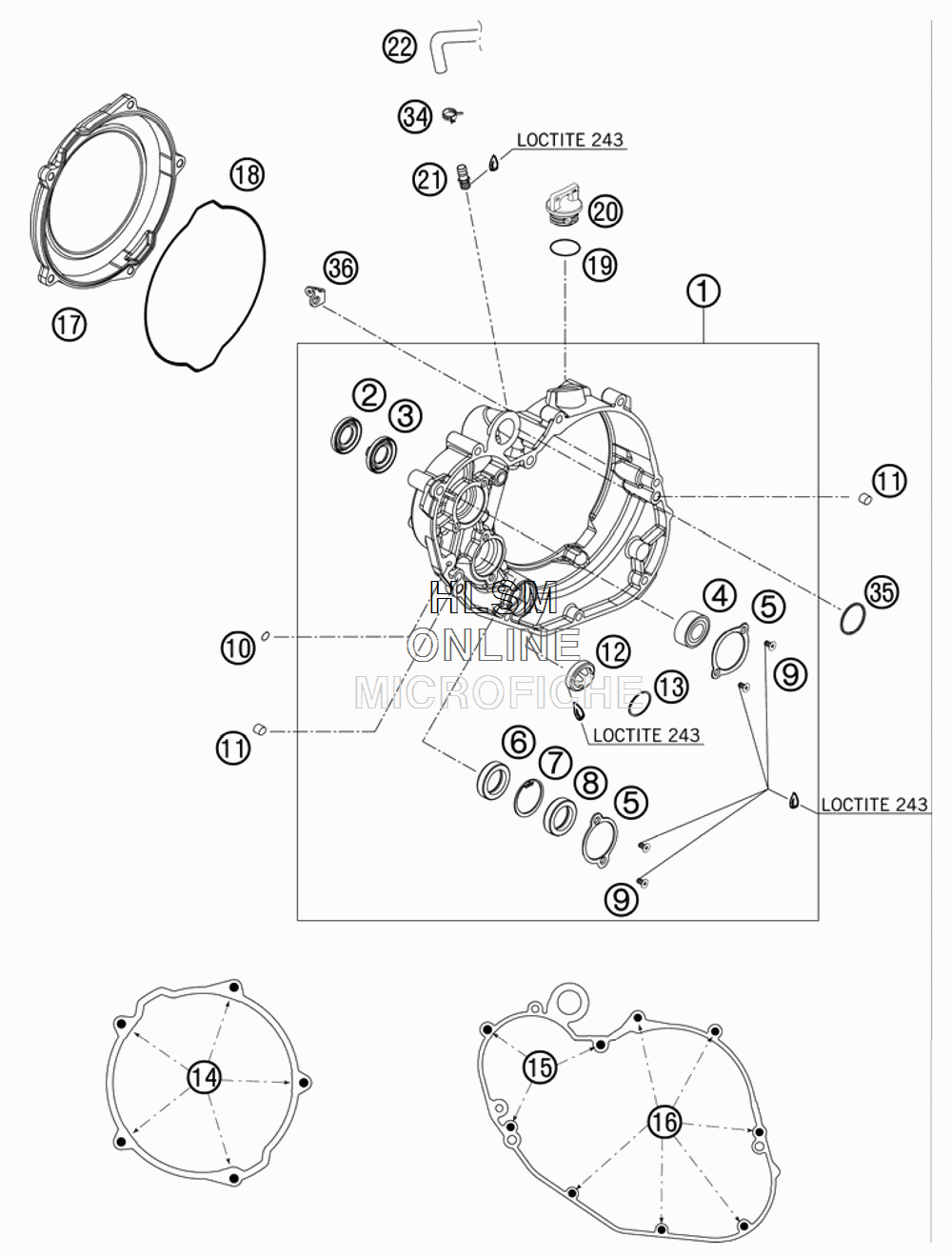

CLUTCH COVER для Ktm 450 XC-F - 2008 года выпуска

№

Артикул

Название
1

77330001144 CLUTCH COVER CPL.

CLUTCH COVER CPL.

67 440 ₽
2

77335057000 SHAFT SEAL RING 12X24X4

SHAFT SEAL RING 12X24X4

3 070 ₽
3

77335056000 SHAFT SEAL RING 12X24X4/5,5

SHAFT SEAL RING 12X24X4/5,5

3 240 ₽
4

0625062021 BALL BEARING 6202 C0 2RSH

BALL BEARING 6202 C0 2RSH

5 380 ₽
5

77335064100 RETAINING PLATE FOR WAPUSTOCK

RETAINING PLATE FOR WAPUSTOCK

880 ₽
6

0760203070 SHAFT SEAL RING 20X30X7

SHAFT SEAL RING 20X30X7

820 ₽
7

0472300120 CIRCLIP 30X1,2

CIRCLIP 30X1,2

150 ₽
8

0760253574 SHAFT SEAL RING 12X35X7 BSL VI

SHAFT SEAL RING 12X35X7 BSL VI

2 510 ₽
9

0019050103 INT. TORX FLAT HEAD M 5X10 8.8

INT. TORX FLAT HEAD M 5X10 8.8

290 ₽
10

0770080015 O-RING

O-RING

150 ₽
11

0402080120 CYLINDER ROLLER ZRO. 8,0X12 M4

CYLINDER ROLLER ZRO. 8,0X12 M4

530 ₽
12

59030019000 OIL LEVEL GLASS G 1777 Y

OIL LEVEL GLASS G 1777 Y

5 720 ₽
13

61030019050 CIRCLIP OIL LEVEL GLASS

CIRCLIP OIL LEVEL GLASS

150 ₽
14

0015060203 HH COLLAR SCREW M 6X20

HH COLLAR SCREW M 6X20

500 ₽
15

77330067045 HH COLLAR SCREW M7X1X45

HH COLLAR SCREW M7X1X45

3 300 ₽
16

0015060303 HH COLLAR SCREW M 6X30

HH COLLAR SCREW M 6X30

560 ₽
17

77330026100 CLUTCH COVER OUTSIDE

CLUTCH COVER OUTSIDE

15 010 ₽
18

77330027000 CLUTCH CASE GASKET

CLUTCH CASE GASKET

2 220 ₽
19

0770191015 O-RING 19,00X3,00 NBR

O-RING 19,00X3,00 NBR

290 ₽
20

58030020100 PLUG CPL. M24X3

PLUG CPL. M24X3

1 080 ₽
21

59030022100 BLEEDER FLANGE M12X1,5

BLEEDER FLANGE M12X1,5

1 990 ₽
22

77330086000 ENGINE BREATHER TUBE

ENGINE BREATHER TUBE

2 690 ₽
34

58431082100 YDNAC-CLAMP 10173 (16MM)

YDNAC-CLAMP 10173 (16MM)

210 ₽
35

77335005000 QUAD-RING 28,3X1,78 VITON

QUAD-RING 28,3X1,78 VITON

1 050 ₽
36

77303026054 SPRING BRACKET

SPRING BRACKET

1 610 ₽
