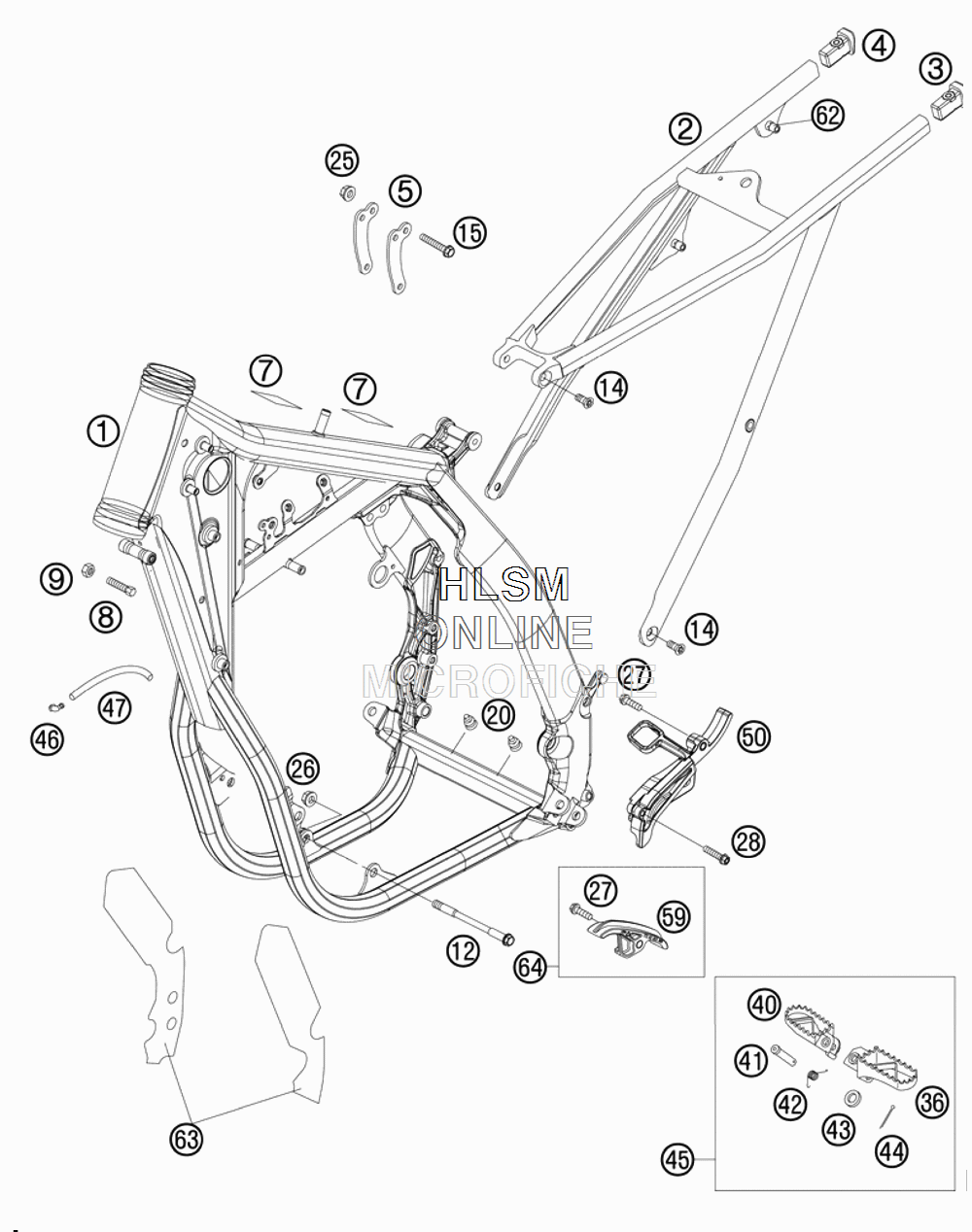

FRAME для Ktm 450 XC-F - 2008 года выпуска
-
№АртикулНазвание
-
1*7730300110030 FRAME "JB08"FRAME "JB08"
-
2*77303002000 SUB FRAME SX "Q7"SUB FRAME SX "Q7"
-
3*78003002010 SUB FRAME APPLICATION LEFTSUB FRAME APPLICATION LEFT
-
4*78003002020 SUB FRAME APPLICATION RIGHTSUB FRAME APPLICATION RIGHT
-
5*77303013000 ENGINE BRACEENGINE BRACE
-
750307012000 ADH. FOIL TRANSP. 80X80 MMADH. FOIL TRANSP. 80X80 MM
-
859001037000 SPECIAL SCREW M8X26 WS=10SPECIAL SCREW M8X26 WS=10
-
90934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
12*59003013000 ENGINEBRAC.SCREW M10X123 WS=13ENGINEBRAC.SCREW M10X123 WS=13
-
14*0019080206S FLAT HEAD SCREW M. ISA45 M8X20FLAT HEAD SCREW M. ISA45 M8X20
-
1556530079000 COLLAR SCREW M8X42 WS=13 10.9COLLAR SCREW M8X42 WS=13 10.9
-
20*54403135000 PLASTIC CAP SFL10PLASTIC CAP SFL10
-
2554310086200 SELF LOCKING NUT M8SELF LOCKING NUT M8
-
2654310086100 SELF LOCKING NUT M10 CU WS=14SELF LOCKING NUT M10 CU WS=14
-
27*0025080306 HH COLLAR SCREW M8X30HH COLLAR SCREW M8X30
-
28*0025060406 HH COLLAR SCREW M6X40HH COLLAR SCREW M6X40
-
3659003040250 FOOT PED L/S SILVERFOOT PED L/S SILVER
-
4059003041250 FOOT PED R/S SILVERFOOT PED R/S SILVER
-
4154803044000 BOLT FOR FOOT PEDBOLT FOR FOOT PED
-
4254603041000 FOOTREST SPRING L/S & R/SFOOTREST SPRING L/S & R/S
-
430125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
440094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
-
455030314013390 FOOTREST L.+R. CPL.FOOTREST L.+R. CPL.
-
4650303089000 ANGEL PIECEANGEL PIECE
-
4755007016001 PVC-HOSE 7X10 PER METERPVC-HOSE 7X10 PER METER
-
50*77303096000 CHAIN SPROCKET COVERCHAIN SPROCKET COVER
-
59*77303053000 CHAIN SLIDING PIECE BELOWCHAIN SLIDING PIECE BELOW
-
62*77303139000 BLIND RIVET NUT EM6-60LF/HXBLIND RIVET NUT EM6-60LF/HX
-
63*77303094000 FRAME PROTECTION STICK. SETFRAME PROTECTION STICK. SET
-
64*77303053010 CHAIN SLIDING P. BELOW CPL.CHAIN SLIDING P. BELOW CPL.
