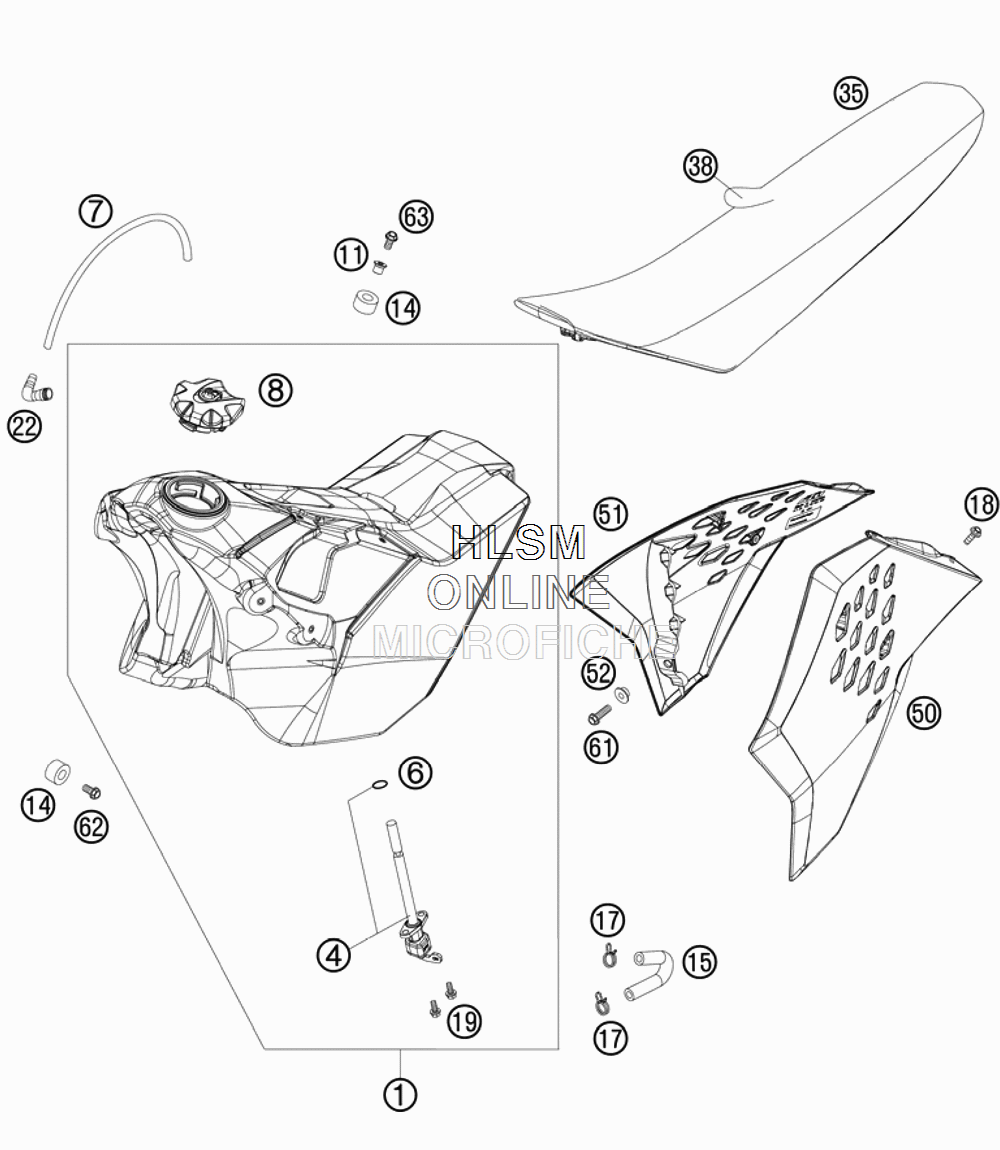

TANK - SEAT - COVER для Ktm 450 XC-F - 2008 года выпуска
-
№АртикулНазвание
-
1*7800701306630 FUEL TANK CPL. 9,5LFUEL TANK CPL. 9,5L
-
4*78007004000 GAS COCK ON/OFF/RESGAS COCK ON/OFF/RES
-
60770110021 O-RING 11X2 VITONO-RING 11X2 VITON
-
7*78007000270 PVC-HOSE 5,6X10X270MMPVC-HOSE 5,6X10X270MM
-
8*7800700804404 TANK PLUG CPL. XCF-WTANK PLUG CPL. XCF-W
-
11*77307026000 TANK BUSHINGTANK BUSHING
-
1450307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
15*77307016000 FUEL PREFORMED HOSEFUEL PREFORMED HOSE
-
1758031005000 CLAMP YDNAC 10128 12MMCLAMP YDNAC 10128 12MM
-
180017060204 EJOT PT SCREW K60X20 ALU WS=6EJOT PT SCREW K60X20 ALU WS=6
-
190017060203 EJOT PT SCREW K60X20EJOT PT SCREW K60X20
-
2251030022000 ANGLE PIECE 90 DEGREE M10X1ANGLE PIECE 90 DEGREE M10X1
-
35*77307040000 SEATSEAT
-
38*77307040050 SEAT COVERSEAT COVER
-
50*7730805000030C SPOILER L/S BLACKSPOILER L/S BLACK
-
51*7730805100030C SPOILER R/S BLACKSPOILER R/S BLACK
-
5250308052000 BUSH FOR SPOILER 6X11X16X5 MMBUSH FOR SPOILER 6X11X16X5 MM
-
61*0025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
62*0025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
63*0024060273 COLLAR SCREW M6X27COLLAR SCREW M6X27
