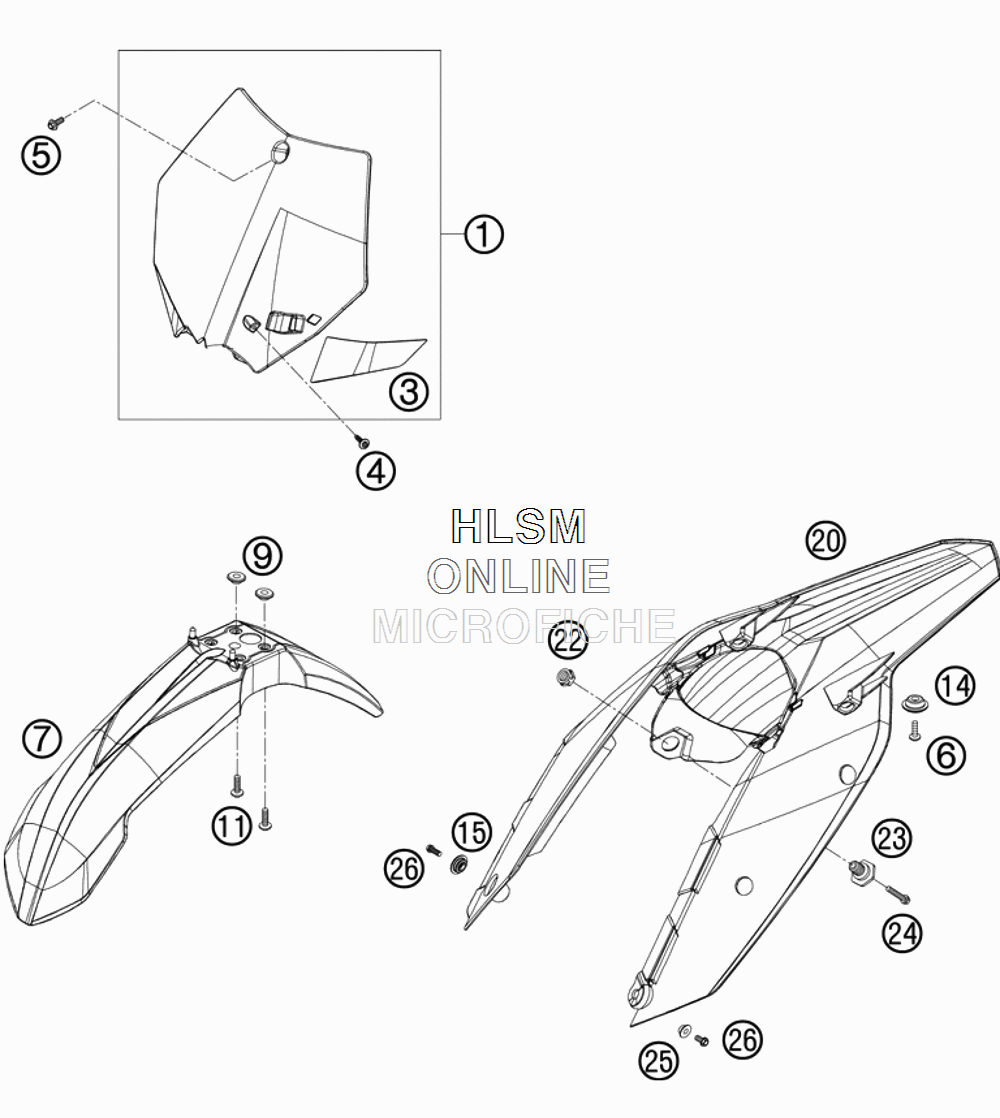

MASK - FENDER для Ktm 450 XC-F - 2008 года выпуска
-
№АртикулНазвание
-
1*7730800704404 NUMBER PLATE CPL. ORANGENUMBER PLATE CPL. ORANGE
-
3*7730802200004 BRAKE HOSE GUIDE ORANGEBRAKE HOSE GUIDE ORANGE
-
40017060203 EJOT PT SCREW K60X20EJOT PT SCREW K60X20
-
5*0024060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
6*0025050166 HH COLLAR SCREW M5X16HH COLLAR SCREW M5X16
-
7*7730801000004 FRONT FENDERFRONT FENDER
-
954808020000 SPACER BUSHINGSPACER BUSHING
-
11*0024060156 HH COLLAR SCREW M6X15HH COLLAR SCREW M6X15
-
14*77308013010 COLLAR BUSH. F.REAR FENDERCOLLAR BUSH. F.REAR FENDER
-
15*77306001030 COLLAR BUSHING 4,5/12,6/23COLLAR BUSHING 4,5/12,6/23
-
20*7730801300004 REAR FENDER SX ORANGEREAR FENDER SX ORANGE
-
2250314057050 COLLAR NUT M12X1/WS17 H=5MMCOLLAR NUT M12X1/WS17 H=5MM
-
2354807048000 BUSHING FOR SEAT FASTENINGBUSHING FOR SEAT FASTENING
-
24*0025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
2550308052000 BUSH FOR SPOILER 6X11X16X5 MMBUSH FOR SPOILER 6X11X16X5 MM
-
26*0025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
