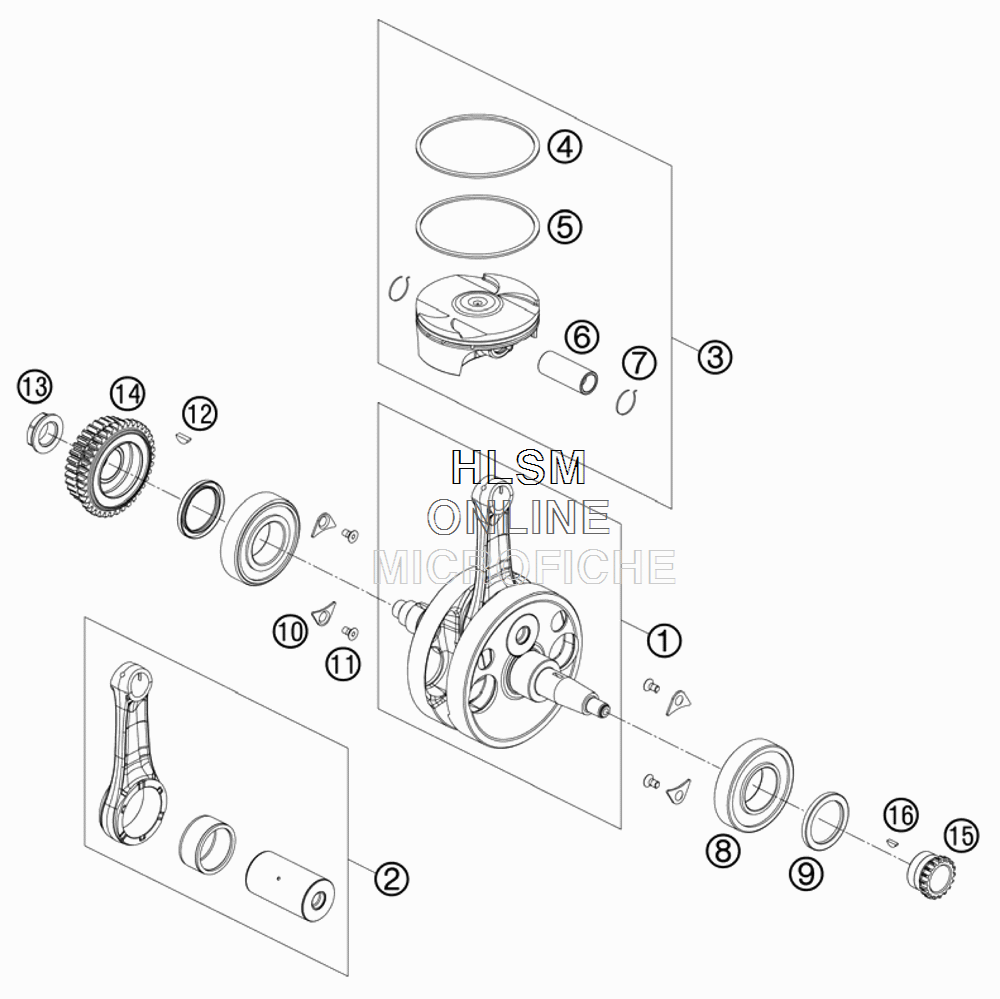

CRANKSHAFT PISTON для Ktm 530 EXC-R - 2008 года выпуска
-
№АртикулНазвание
-
178630018100 CRANKSHAFT CPL.CRANKSHAFT CPL.
-
278630015044 CONNECT. ROD REPAIR SET 530CONNECT. ROD REPAIR SET 530
-
378630007000 PISTONPISTON
-
478030030000 COMPRESSION RINGCOMPRESSION RING
-
578030032000 OIL SCRAPER RINGOIL SCRAPER RING
-
678030033000 PISTON PINPISTON PIN
-
777330074000 CIRCLIPCIRCLIP
-
80625062071 BALL BEARING 6207 TM-SX07E 39BALL BEARING 6207 TM-SX07E 39
-
907603547451 SHAFT SEAL RING 35X47X4,5SHAFT SEAL RING 35X47X4,5
-
1075030085000 RETAINING PLATE F. CS BEARINGRETAINING PLATE F. CS BEARING
-
110019050103 INT. TORX FLAT HEAD M 5X10 8.8INT. TORX FLAT HEAD M 5X10 8.8
-
120888040050 WOODRUFF KEY DIN6888 4X5X13WOODRUFF KEY DIN6888 4X5X13
-
1378030029000 NUT PRIMARY WHEELNUT PRIMARY WHEEL
-
1478032032100 PRIM.WHEEL W.FREEWHEELPRIM.WHEEL W.FREEWHEEL
-
1578036014000 TIMING GEARTIMING GEAR
-
160888030037 WOODRUFF KEY DIN6888-3X3,7WOODRUFF KEY DIN6888-3X3,7
