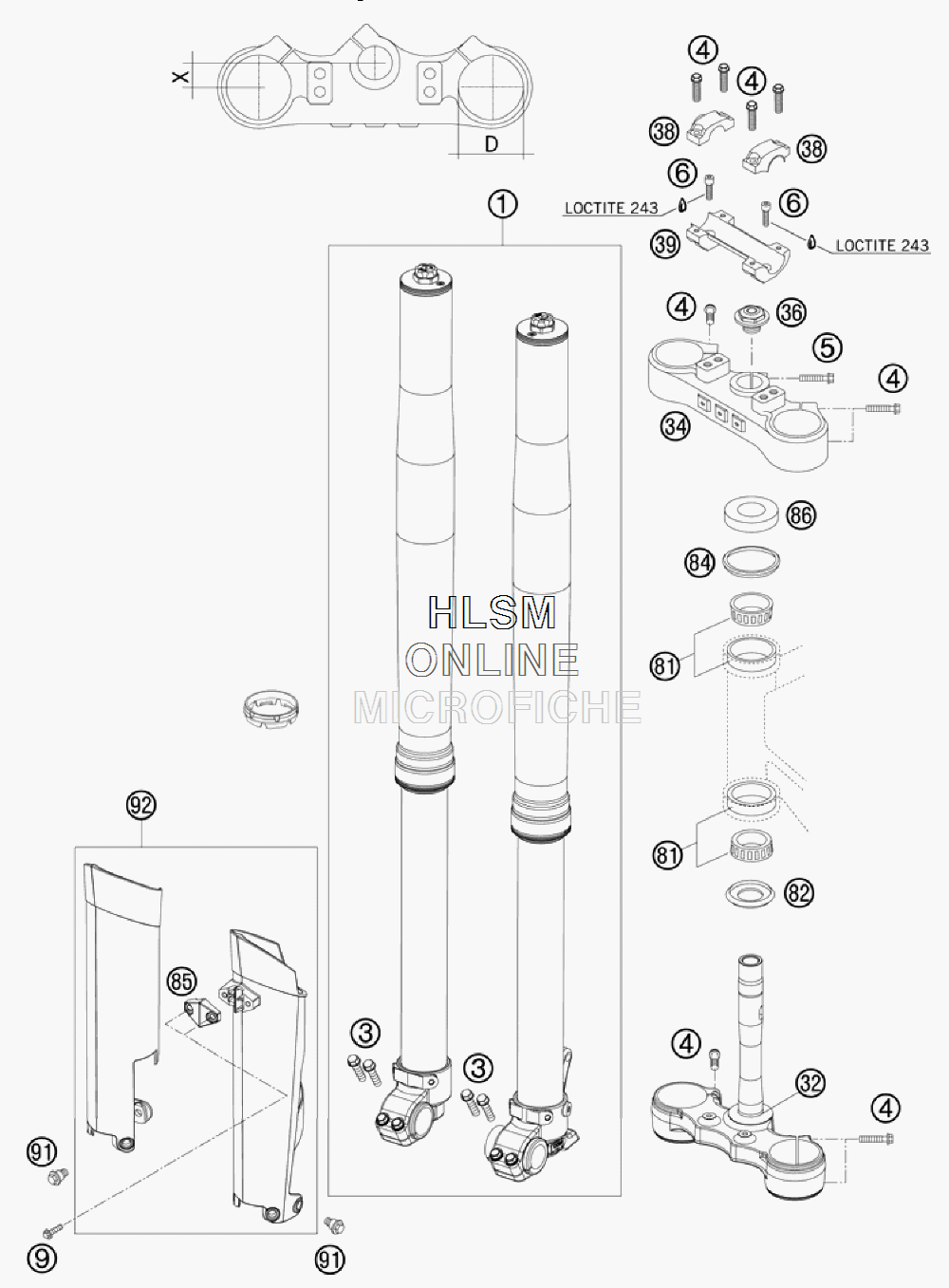

FRONT FORK TRIPLE CLAMP для Ktm 530 EXC-R - 2008 года выпуска
-
№АртикулНазвание
-
114187D06 FORK WP D48 MA450/530 EXC-FFORK WP D48 MA450/530 EXC-F
-
30025080256 HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
40025080306 HH COLLAR SCREW M8X30HH COLLAR SCREW M8X30
-
50025080356 HH COLLAR SCREW M8X35HH COLLAR SCREW M8X35
-
60912100250 AH SCREW DIN6912-M10X25,10.9,LAH SCREW DIN6912-M10X25,10.9,L
-
90017060204 EJOT PT SCREW K60X20 ALUEJOT PT SCREW K60X20 ALU
-
3259001132120 BOT.TRIP.CL.CPL.BOT.TRIP.CL.CPL.
-
3459001034120 TOP TRIPLE CLAMPTOP TRIPLE CLAMP
-
3654801036000 STEER.HEAD SCREW M20X1,5STEER.HEAD SCREW M20X1,5
-
3859001038200 HANDLEBAR CLAMPHANDLEBAR CLAMP
-
3959001039100 HANDLEBAR SUPPORT 28MMHANDLEBAR SUPPORT 28MM
-
8154201081100 TAPERED ROLLER BEARING CPL.TAPERED ROLLER BEARING CPL.
-
8254601084100 O-RING SUPPORT W. SEALING LIPO-RING SUPPORT W. SEALING LIP
-
8454601184000 STEARING HEAD GASKET TOPSTEARING HEAD GASKET TOP
-
857800108500004 CLAMP FOR SPEED CABLECLAMP FOR SPEED CABLE
-
8654201086000 STEERING HEAD COVERSTEERING HEAD COVER
-
9159001092050 SPECIAL SCREW M6X12,5SPECIAL SCREW M6X12,5
-
927800109400004 FORK PROTECTOR LE+RI ORANGEFORK PROTECTOR LE+RI ORANGE
