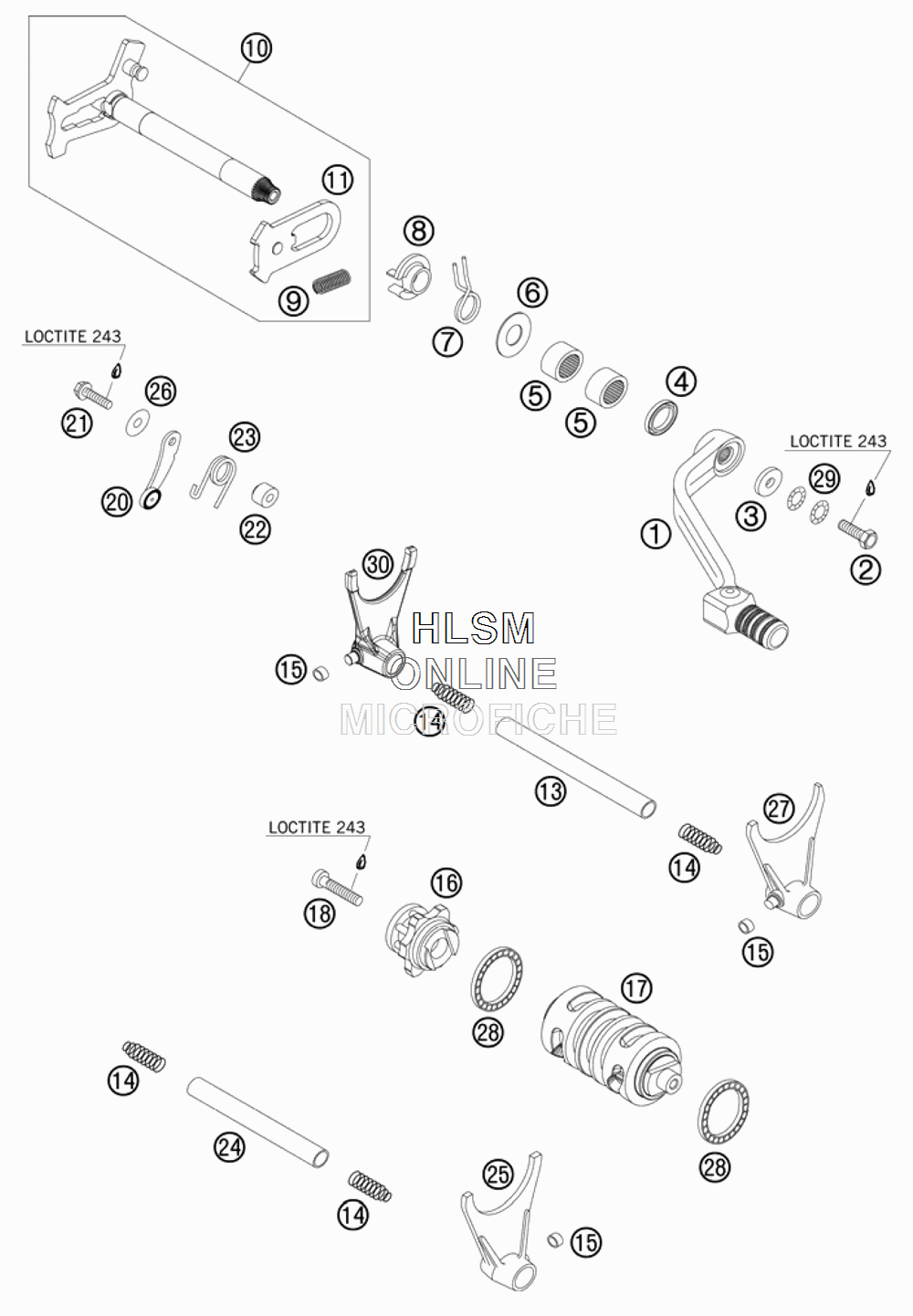

SHIFTING MECHANISM для Ktm 530 EXC-R - 2008 года выпуска
-
№АртикулНазвание
-
159034031000 SHIFT LEVER CPL.RACINGSHIFT LEVER CPL.RACING
-
259009062016 SPECIAL SCREW M6X16SPECIAL SCREW M6X16
-
350232050001 STEEL WASHER 6,4X17X3STEEL WASHER 6,4X17X3
-
40760142460 SHAFT SEAL RING 14X24X6 BSHAFT SEAL RING 14X24X6 B
-
554632095000 NEEDLE BEAR.HK 1412 14X20X12NEEDLE BEAR.HK 1412 14X20X12
-
654634050000 STOP DISK 14X30X1STOP DISK 14X30X1
-
754634014100 RETURN SPRING 2,2MMRETURN SPRING 2,2MM
-
854634020000 SPRING GUIDESPRING GUIDE
-
956534013100 TENSIONING SPRING 0,8MMTENSIONING SPRING 0,8MM
-
1078034005044 SHIFT SHAFT CPL.SHIFT SHAFT CPL.
-
1154634008044 SLIDING PLATE CPL.SLIDING PLATE CPL.
-
1378034020000 SHIFT RAIL 11,8X101,5SHIFT RAIL 11,8X101,5
-
1458038023200 PRESSURE SPRING 0,9MMPRESSURE SPRING 0,9MM
-
1550334018100 SHIFTING ROLLER 6X8X5,2SHIFTING ROLLER 6X8X5,2
-
1678034015144 SHIFT DRUM LOCATING ALU CPL.SHIFT DRUM LOCATING ALU CPL.
-
1778034012000 SHIFT ROLLERSHIFT ROLLER
-
180984060302 AH SCREW DIN6912 M 6X30AH SCREW DIN6912 M 6X30
-
2077034024044 LOCKING LEVER CPL.LOCKING LEVER CPL.
-
210015050203 HH COLLAR SCREW M 5X20HH COLLAR SCREW M 5X20
-
2254634052300 SLEEVE FOR LOCKING LEVERSLEEVE FOR LOCKING LEVER
-
2360034023000 ARRESTING LEVER SPRINGARRESTING LEVER SPRING
-
2478034019000 SHIFT RAIL 11,8X85SHIFT RAIL 11,8X85
-
2559034001000 SHIFT FORK 5./6.GEARSHIFT FORK 5./6.GEAR
-
260349000050 WASHER DIN7349-5X15X2WASHER DIN7349-5X15X2
-
2759034002000 SHIFT FORK 2./4.GEARSHIFT FORK 2./4.GEAR
-
280625618050 BALL BEARING 61805 C3BALL BEARING 61805 C3
-
2950233041000 PAIR OF WASHERS M 6 NORDLOCKPAIR OF WASHERS M 6 NORDLOCK
-
3078034003000 SHIFTING FORK 1ST/3RD GEARSHIFTING FORK 1ST/3RD GEAR
