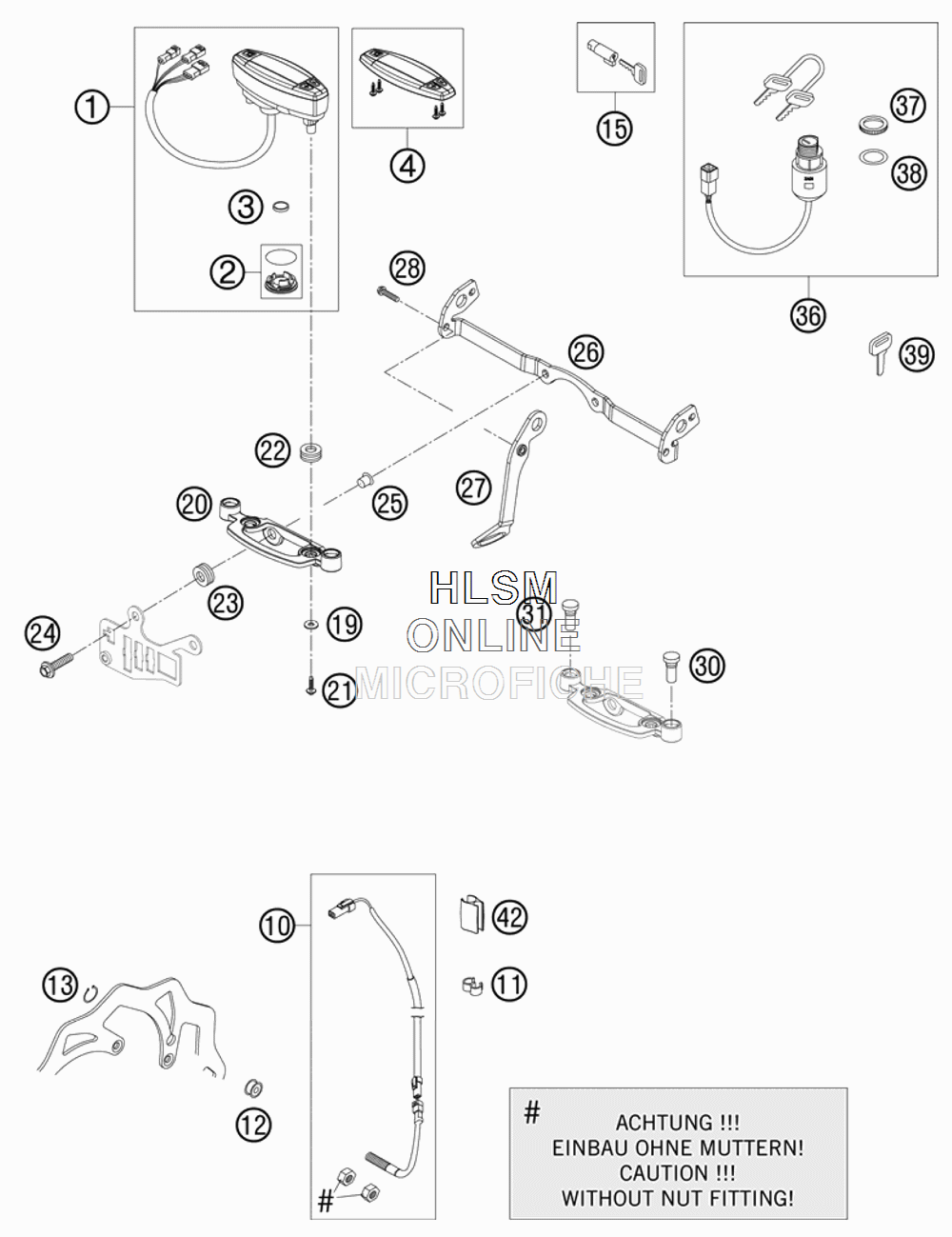

INSTRUMENTS / LOCK SYSTEM для Ktm 530 EXC-R - 2008 года выпуска
-
№АртикулНазвание
-
154814069100 SPEEDOMETER MPH F. 21'';REPROGRAMMABLE: KM/H - MPHSPEEDOMETER MPH F. 21'';REPROGRAMMABLE: KM/H - MPH
-
254814069010 BATTERY COVER F. SPEEDOM.BATTERY COVER F. SPEEDOM.
-
358314068000 BATTERY F. SPEEDOM. M.A.E.BATTERY F. SPEEDOM. M.A.E.
-
454814069020 SPEEDOMETER TOP PARTSPEEDOMETER TOP PART
-
1054814068100 CABLE FOR DIGITAL SPEEDOM.CABLE FOR DIGITAL SPEEDOM.
-
1155011022100 CLAMP, BLACKCLAMP, BLACK
-
1254814069050 MAGNET FOR DIGITAL SPEEDOM.MAGNET FOR DIGITAL SPEEDOM.
-
130471009104 CIRCLIP DIN0471- 9X1CIRCLIP DIN0471- 9X1
-
1578003035000 STEERING HEAD LOCKSTEERING HEAD LOCK
-
190021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
2054814060000 SPEEDOMETER BRACKETSPEEDOMETER BRACKET
-
210081050121 SCREW FOR PLASTIC K50X12SCREW FOR PLASTIC K50X12
-
2258214069051 RUBBER GROMMET 16X10,8X3RUBBER GROMMET 16X10,8X3
-
2331008060000 RUBBER SLEEVE OPENRUBBER SLEEVE OPEN
-
240024060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
2558314060050 SPACER BUSH. F. SPEEDOMET.BRA.SPACER BUSH. F. SPEEDOMET.BRA.
-
2678014033000 FLASHER BRACKET EXCFLASHER BRACKET EXC
-
2778011065050 RETAINING PLATE IGN. LOCKRETAINING PLATE IGN. LOCK
-
280025050126 HH COLLAR SCREW M5X12HH COLLAR SCREW M5X12
-
3058011021300 H.BEAM INDICATOR LIGHT BLUEH.BEAM INDICATOR LIGHT BLUE
-
3158011024300 FLASHER INDICAT.LIGHT GREENFLASHER INDICAT.LIGHT GREEN
-
3678011065000 IGN.-STEER.LOCK SET STR.LEG.IGN.-STEER.LOCK SET STR.LEG.
-
3750311066050 IGNITION LOCK NUT M24X1IGNITION LOCK NUT M24X1
-
3858411066450 WASHER F. IGNITION LOCKWASHER F. IGNITION LOCK
-
3940011166200 KEY BLANKKEY BLANK
-
4254813026000 CABLE SUPPORT 10/6MMCABLE SUPPORT 10/6MM
