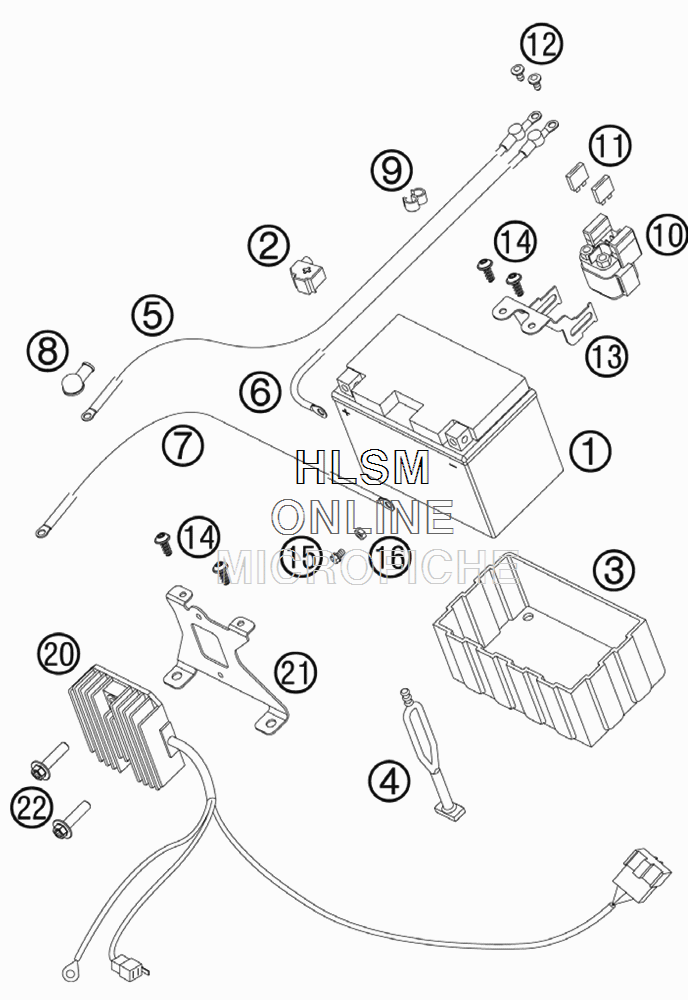

BATTERY для Ktm 990 SUPERMOTO-R - 2010 года выпуска
-
№АртикулНазвание
-
160011053000 BATTERY 12V/11AHBATTERY 12V/11AH
-
262511059160 COVER POSITIVE POLECOVER POSITIVE POLE
-
358411053050 BATTERY COVERBATTERY COVER
-
450303018000 RUBBER L=145MMRUBBER L=145MM
-
562511059000 STARTER CABLE L=650MMSTARTER CABLE L=650MM
-
662511059050 BATTERY CABLE L=125MMBATTERY CABLE L=125MM
-
762511097000 GROUND CABLE L=650MMGROUND CABLE L=650MM
-
860040009000 RUBBER CAP STARTER PORTRUBBER CAP STARTER PORT
-
955011022100 CLAMP D=6/8MM, BLACKCLAMP D=6/8MM, BLACK
-
1058211058000 STARTER RELAY 12VSTARTER RELAY 12V
-
1158011109130 FUSE 30 AFUSE 30 A
-
120902060083 AH OVAL SCREW ISO 7380 M 6X8AH OVAL SCREW ISO 7380 M 6X8
-
1362511058050 BRACKET START RELAYBRACKET START RELAY
-
140081050121 SCREW FOR PLASTIC K50X12 T20SCREW FOR PLASTIC K50X12 T20
-
150024060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
160934060003 HEXAGON NUT DIN0934-M6HEXAGON NUT DIN0934-M6
-
2062511034100 VOLTAGE REGULATORVOLTAGE REGULATOR
-
2162511037000 BRACKET VOLTAGE REGULATORBRACKET VOLTAGE REGULATOR
-
220024060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
