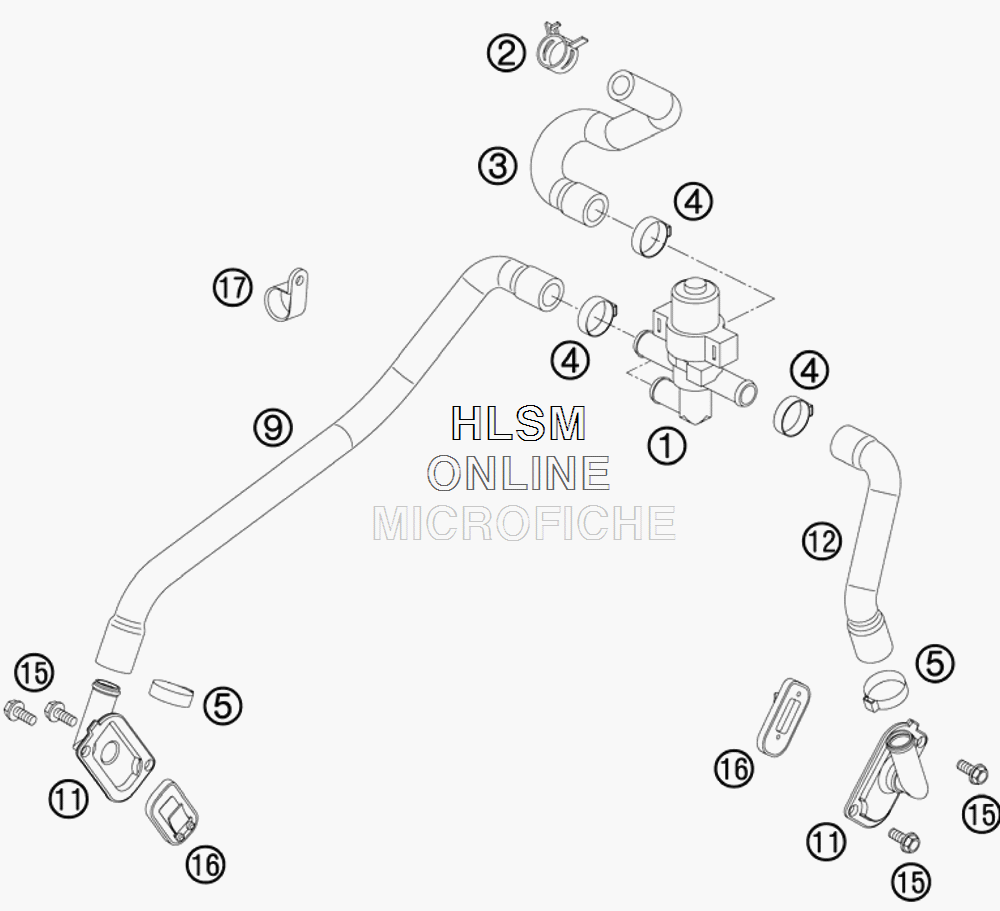

SECONDARY AIR SYSTEM для Ktm 990 SUPERMOTO-R - 2010 года выпуска
-
№АртикулНазвание
-
161005026000 CONTROL VALVE SASCONTROL VALVE SAS
-
200049190121 CLAMP STD DN19CLAMP STD DN19
-
361005035023 SAS HOSE AIRBOXSAS HOSE AIRBOX
-
400050226706 VARIABLE ONE-EAR CLAMP 22,6MMVARIABLE ONE-EAR CLAMP 22,6MM
-
500050210706 VARIABLE ONE-EAR CLAMP 21,0MMVARIABLE ONE-EAR CLAMP 21,0MM
-
961005035021 SAS HOSE CYLINDER FRONTSAS HOSE CYLINDER FRONT
-
1160005022000 SAS FLANGESAS FLANGE
-
1261005035022 SAS HOSE CYLINDER REARSAS HOSE CYLINDER REAR
-
150025060126 HH COLLAR SCREW M6X12 TX30HH COLLAR SCREW M6X12 TX30
-
1660005026000 SLS-VALVESLS-VALVE
-
1757013070400 PVC CLAMP 17,4MM HEYCO 3381PVC CLAMP 17,4MM HEYCO 3381
