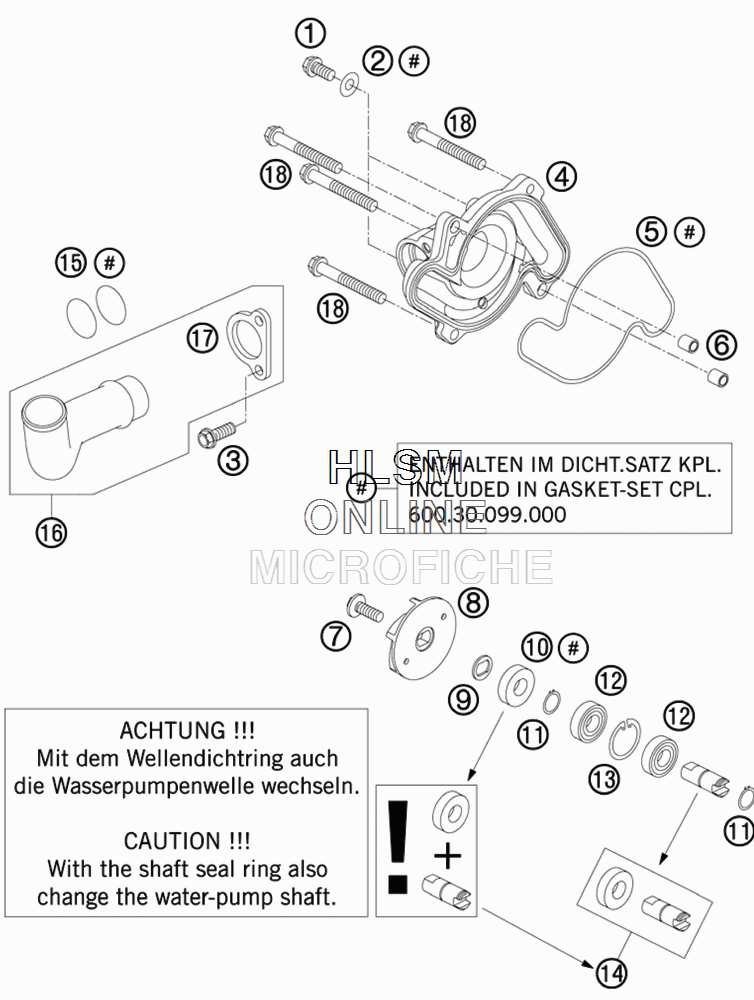

WATER PUMP для Ktm 990 SUPERMOTO-R - 2010 года выпуска
-
№АртикулНазвание
-
10025060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
20603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
30025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
46003505210023 WATERPUMP COVERWATERPUMP COVER
-
560035053000 WATER-PUMP GASKETWATER-PUMP GASKET
-
659030023000 DOWEL 6X8X11,5DOWEL 6X8X11,5
-
70024060156 HH COLLAR SCREW M6X15 TX30HH COLLAR SCREW M6X15 TX30
-
860035055100 WATER-PUMP WHEEL LC8WATER-PUMP WHEEL LC8
-
960035055150 FORM WASHER 16X1 NIROFORM WASHER 16X1 NIRO
-
100760123073 SHAFT SEAL RING 12X30X7 PTFESHAFT SEAL RING 12X30X7 PTFE
-
110471120010 CIRCLIP DIN0471-12X1CIRCLIP DIN0471-12X1
-
120625069010 GROOVED BALL BEARING 6901V C3GROOVED BALL BEARING 6901V C3
-
130472240120 CIRCLIP DIN472 D=24X1,2CIRCLIP DIN472 D=24X1,2
