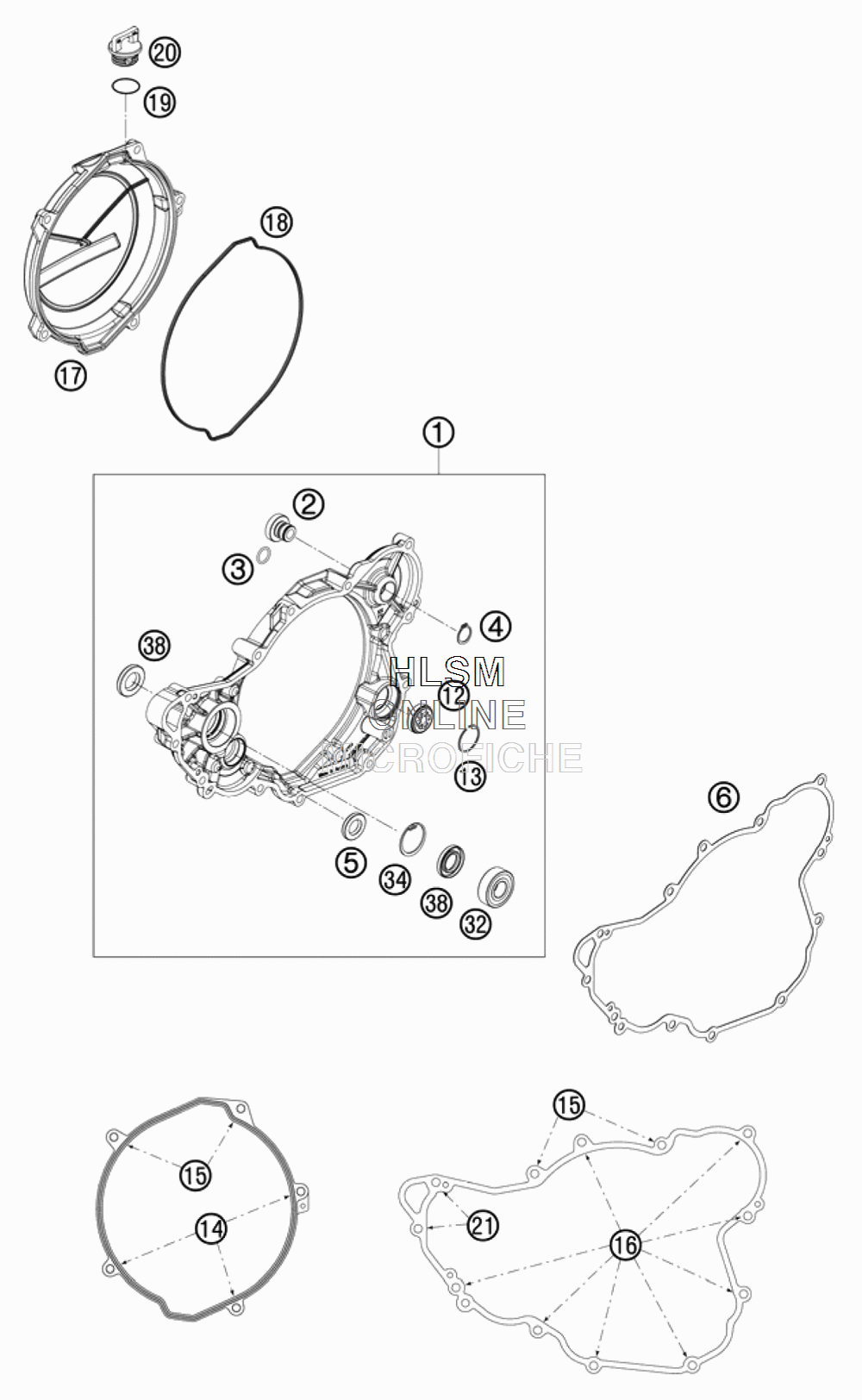

CLUTCH COVER для Ktm 350 SX-F - 2011 года выпуска
-
№АртикулНазвание
-
177230001044 CLUTCH COVER CPL.CLUTCH COVER CPL.
-
277230001010 PLUG STARTING LEVERPLUG STARTING LEVER
-
30770140200 O-RING 14,00X2,00O-RING 14,00X2,00
-
40471170010 CIRCLIP DIN0471-17X1CIRCLIP DIN0471-17X1
-
50760142460 SHAFT SEAL RING 14X24X6 BSHAFT SEAL RING 14X24X6 B
-
677230025000 CLUTCH COVER GASKETCLUTCH COVER GASKET
-
1259030019100 OIL LEVEL GLASSOIL LEVEL GLASS
-
1361030019050 CIRCLIP OIL LEVEL GLASSCIRCLIP OIL LEVEL GLASS
-
140025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
150025060456 HH COLLAR SCREW M6X45HH COLLAR SCREW M6X45
-
160025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
177723002600015 CLUTCH COVER OUTSIDECLUTCH COVER OUTSIDE
-
1877230027000 GASKET FOR OUTER CLUTCH COVERGASKET FOR OUTER CLUTCH COVER
-
190770191015 O-RING 19,00X3,00 NBRO-RING 19,00X3,00 NBR
-
2058030020000 PLUG M 24X3PLUG M 24X3
-
210025060406 HH COLLAR SCREW M6X40HH COLLAR SCREW M6X40
-
320625062022 BALL BEARING 6202 C0 2BALL BEARING 6202 C0 2
-
340472300120 CIRCLIP 30X1,2CIRCLIP 30X1,2
-
380760153045 SHAFT SEAL RING 15/30/4,5 BAUDSHAFT SEAL RING 15/30/4,5 BAUD
