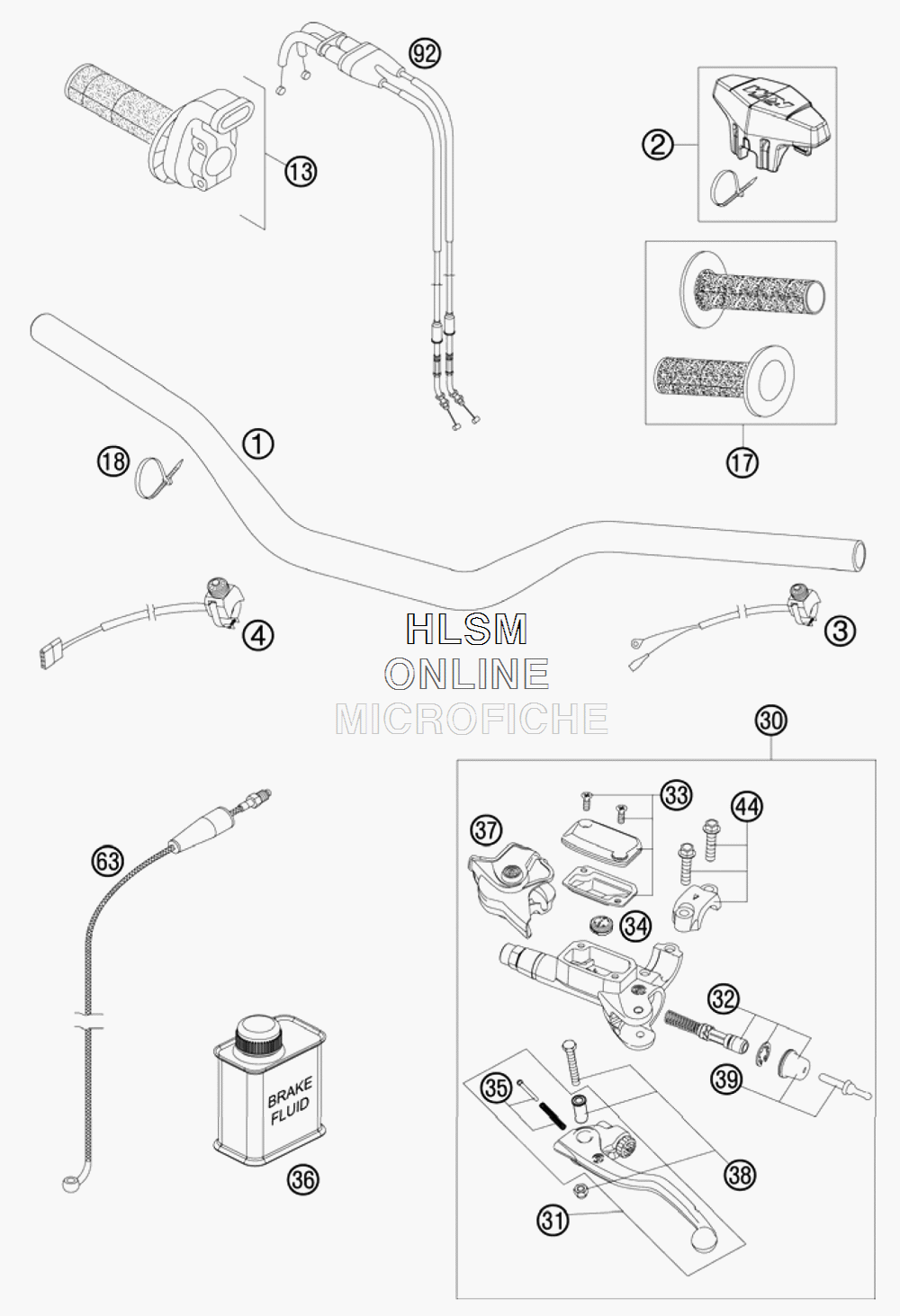

HANDLEBAR CONTROLS для Ktm 350 SX-F - 2011 года выпуска
-
№АртикулНазвание
-
17730200110017 HANDLEBAR RENTHAL SX 28MMHANDLEBAR RENTHAL SX 28MM
-
277202002100 BAR PAD CPL.BAR PAD CPL.
-
350311089200 SHORT CIRCUIT BUTTONSHORT CIRCUIT BUTTON
-
459411074000 STARTER CONTROLSTARTER CONTROL
-
1377002010100 THROTTLE GRIP CPL. 4-ST.THROTTLE GRIP CPL. 4-ST.
-
1754802021200 GRIP-SET GRAY/ORANGEGRIP-SET GRAY/ORANGE
-
1844011076140 CABLE TIE 140/2,5MM BLACKCABLE TIE 140/2,5MM BLACK
-
1844011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
3054802030044 MASTER CYLINDER CPL.MASTER CYLINDER CPL.
-
3154802031000 CLUTCH LEVER CPL. BREMBOCLUTCH LEVER CPL. BREMBO
-
3254802032000 REP. KIT PISTONREP. KIT PISTON
-
3354802003000 COVER HYD. CLUTCH CPL.COVER HYD. CLUTCH CPL.
-
3454802051000 VALVEVALVE
-
3554802052000 BOLT KPL.BOLT KPL.
-
3600062030000 BRAKE FLUID DOT5.1 0,25LBRAKE FLUID DOT5.1 0,25L
-
3754802037000 PROTECTION CAPPROTECTION CAP
-
3854802038100 LEVER SCREW CPL.LEVER SCREW CPL.
-
3954802046000 PUSH ROD CPL.PUSH ROD CPL.
-
4454802005100 CLAMP CPL.CLAMP CPL.
-
6354832063000 CLUTCH PIPECLUTCH PIPE
-
9277002091000 THROTTLE CABLETHROTTLE CABLE
