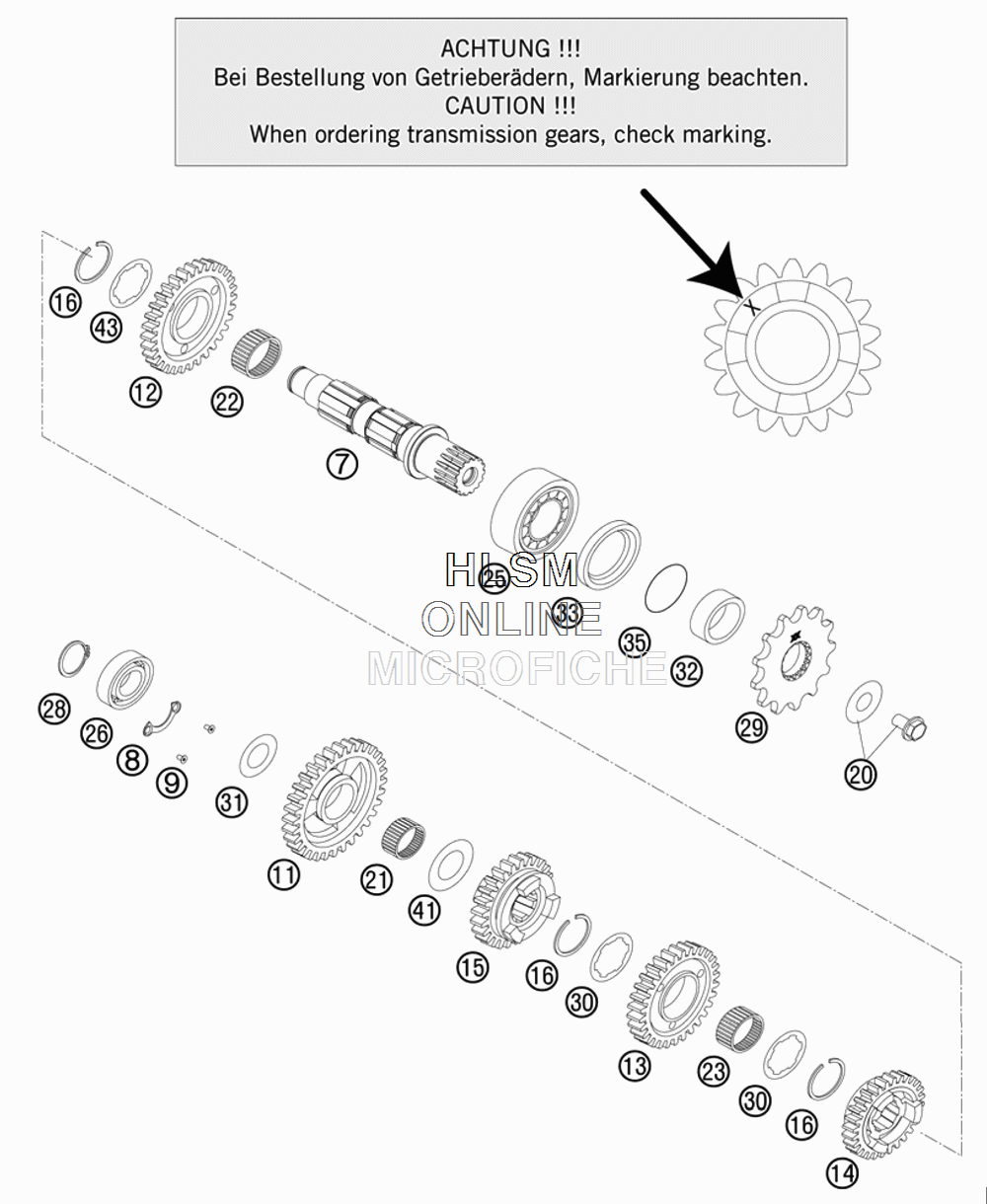

TRANSMISSION II - COUNTERSHAFT для Ktm 350 SX-F - 2011 года выпуска
-
№АртикулНазвание
-
777233010000 COUNTERSHAFTCOUNTERSHAFT
-
878033132000 TAB WASHER BEARING COUNT.SHAFTTAB WASHER BEARING COUNT.SHAFT
-
90019050103 INT. TORX FLAT HEAD M 5X10 8.8INT. TORX FLAT HEAD M 5X10 8.8
-
1154833011000 IDLER GEAR 1ST G. 28-T "1S28"IDLER GEAR 1ST G. 28-T "1S28"
-
1254833012100 IDLER GEAR 2ND G. 26-T "2S26"IDLER GEAR 2ND G. 26-T "2S26"
-
1354833013000 IDLER GEAR 3RD G. 24-T "3S24"IDLER GEAR 3RD G. 24-T "3S24"
-
1454833014000 SLIDING GEAR 4TH G.24-T "4S24"SLIDING GEAR 4TH G.24-T "4S24"
-
1554833015000 SLIDING GEAR 5TH G.21-T "5S21"SLIDING GEAR 5TH G.21-T "5S21"
-
1677033022000 AXIAL-CIRCLIP 25X1,65AXIAL-CIRCLIP 25X1,65
-
2059033034044 SCREW.9+SPRING WASHERSCREW.9+SPRING WASHER
-
210405202413 NEEDLE BEAR. K20X24X13NEEDLE BEAR. K20X24X13
-
220405242812 NEDDLE BEAR. K24X28X11,9 DIV.NEDDLE BEAR. K24X28X11,9 DIV.
-
230405222613 NEEDLE BEAR. K 22X26X13 TNNEEDLE BEAR. K 22X26X13 TN
-
2549030023000 CYL.ROLL BEARING NJ205CYL.ROLL BEARING NJ205
-
260625062035 BALL BEARING 6203 JR2 C3BALL BEARING 6203 JR2 C3
-
280471170015 CIRCLIP DIN71-17X1, 5CIRCLIP DIN71-17X1, 5
-
2950033029013 FRONT SPROCKET 13-TFRONT SPROCKET 13-T
-
2950033029014 FRONT SPROCKET 14-TFRONT SPROCKET 14-T
-
3059033030000 STOP DISC 25,2X32X1,5STOP DISC 25,2X32X1,5
-
3156033030000 STOP DISC 17,2X30X1STOP DISC 17,2X30X1
-
3254833032011 SPACER SLEEVE DRIVE ENDSPACER SLEEVE DRIVE END
-
330760324571 SHAFT SEAL RING 32X45X7 BSLNBRSHAFT SEAL RING 32X45X7 BSLNBR
-
350770020220 O-RING 25,12X1,78 NBR70O-RING 25,12X1,78 NBR70
-
4159033080000 SHIM 20X32X1SHIM 20X32X1
-
4350333043000 STOP DISC 25,2X32X1STOP DISC 25,2X32X1
