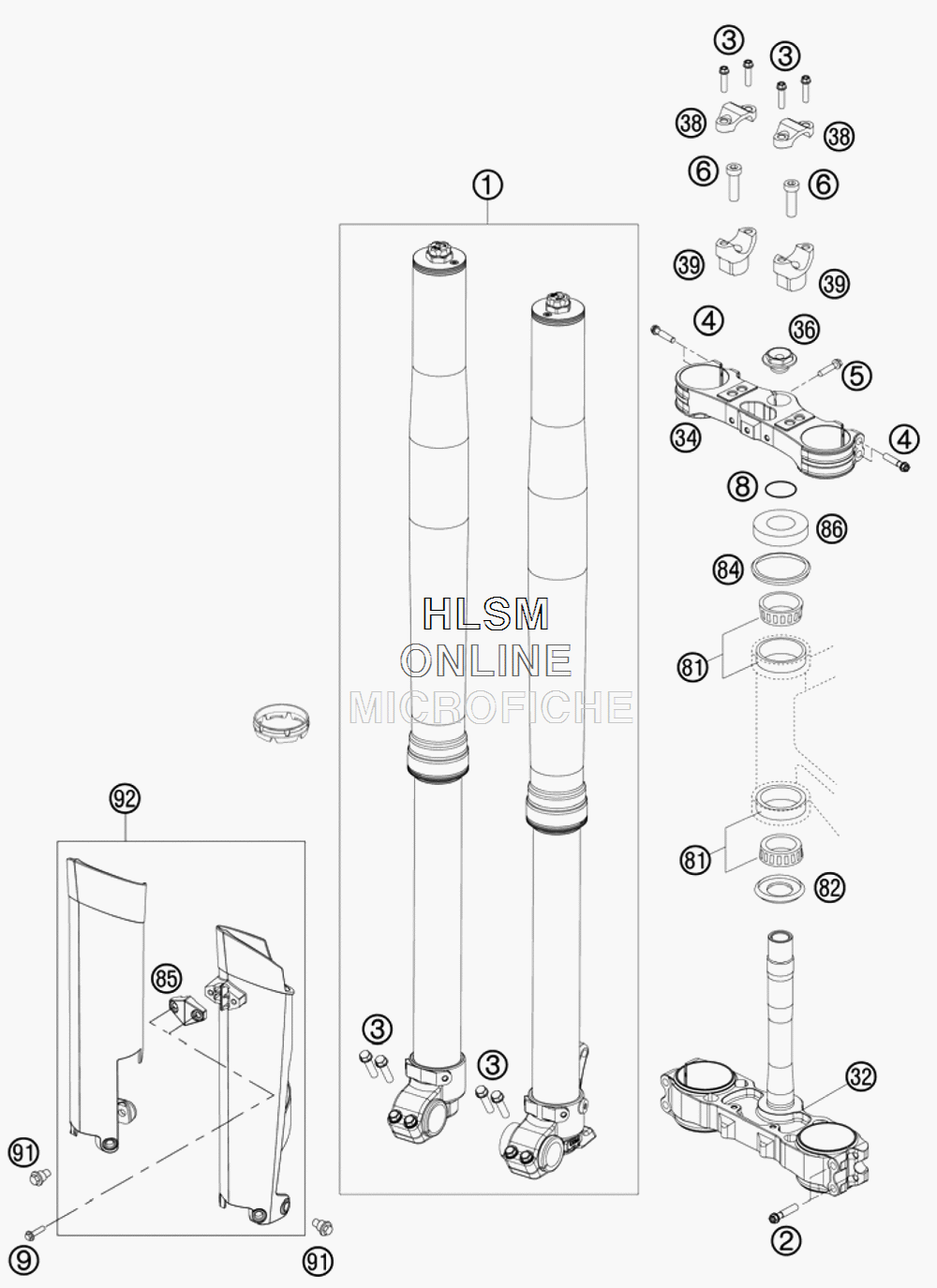

FRONT FORK TRIPLE CLAMP для Ktm 350 SX-F - 2011 года выпуска
-
№АртикулНазвание
-
114187K0501 FORK WPFORK WP
-
20025080506 HH COLLAR SCREW M8X50HH COLLAR SCREW M8X50
-
30025080256 HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
40025080406 HH COLLAR SCREW M8X40HH COLLAR SCREW M8X40
-
50025080256S HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
60912100356 AH SCREW DIN6912-M10X35.9AH SCREW DIN6912-M10X35.9
-
80770025035 O-RING 25X3,55 NBR70O-RING 25X3,55 NBR70
-
90017060204 EJOT PT SCREW K60X20 ALU WS=6EJOT PT SCREW K60X20 ALU WS=6
-
327720103202230 BOTT.FORK PLATE VMT. X=22MM BLBOTT.FORK PLATE VMT. X=22MM BL
-
347720103402230 TOP TRIPLE CLAMP X=22MM BLACKTOP TRIPLE CLAMP X=22MM BLACK
-
3654801036000 STEER.HEAD SCREW M20X1,5 WS=27STEER.HEAD SCREW M20X1,5 WS=27
-
3859401038000 HANDLEBAR CLAMP 28MMHANDLEBAR CLAMP 28MM
-
3959401039032 HANDLEB.SUPP. D=28MM H=32MMHANDLEB.SUPP. D=28MM H=32MM
-
3959401039037 HANDLEB.SUPP. D=28MM H=37MMHANDLEB.SUPP. D=28MM H=37MM
-
3959401039042 HANDLEB.SUPP. D=28MM H=42MMHANDLEB.SUPP. D=28MM H=42MM
-
8154201081100 TAPERED ROLLER BEARING CPL.TAPERED ROLLER BEARING CPL.
-
8254601084100 O-RING SUPPORT W. SEALING LIPO-RING SUPPORT W. SEALING LIP
-
8454601184000 STEARING HEAD GASKET TOPSTEARING HEAD GASKET TOP
-
857800108500028 CLAMP F. SPEED. CABLE D=6MMCLAMP F. SPEED. CABLE D=6MM
-
8654201086000 STEERING HEAD COVERSTEERING HEAD COVER
-
9159001092050 SPECIAL SCREW M6X12,5SPECIAL SCREW M6X12,5
-
927800109410028 FORK PROTECT. L/S+R/S WHITEFORK PROTECT. L/S+R/S WHITE
