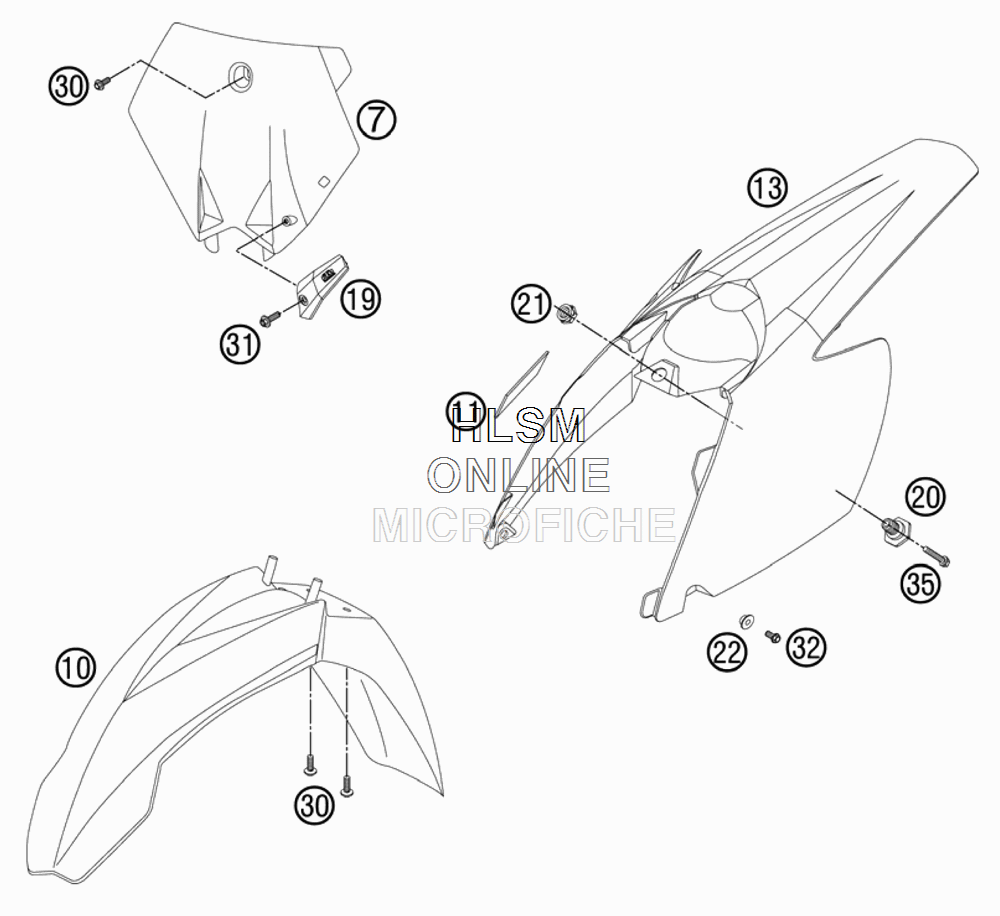

MASK FENDER для Ktm 85 SXS - 2012 года выпуска
-
№АртикулНазвание
-
74700800700028 START NUMBER PLATESTART NUMBER PLATE
-
104700801000004 FRONT FENDERFRONT FENDER
-
1159003001099 METAMOLL 90X45X3MMMETAMOLL 90X45X3MM
-
134700801300028 REAR PARTREAR PART
-
1954808019100 BRAKE HOSE GUIDEBRAKE HOSE GUIDE
-
2054807048000 BUSHING FOR SEAT FASTENINGBUSHING FOR SEAT FASTENING
-
2150314057050 COLLAR NUT M12X1/WS17 H=5MMCOLLAR NUT M12X1/WS17 H=5MM
-
2250308052000 BUSH FOR SPOILER 6X11X16X5 MMBUSH FOR SPOILER 6X11X16X5 MM
-
300024060156 HH COLLAR SCREW M6X15 TX30HH COLLAR SCREW M6X15 TX30
-
310017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
-
320025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
350025060256 HH COLLAR SCREW M6X 25 TX30HH COLLAR SCREW M6X 25 TX30
