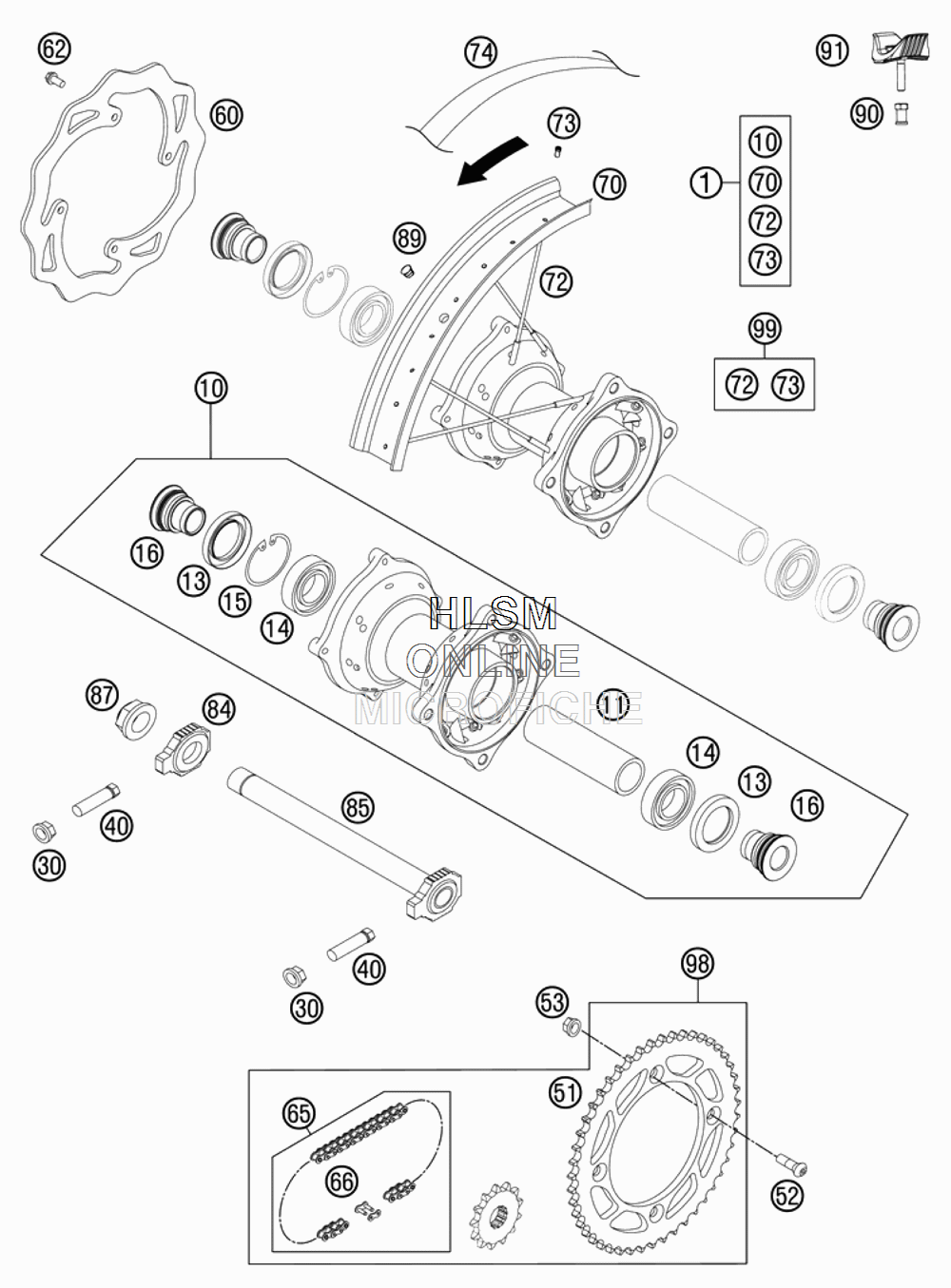

REAR WHEEL для Ktm 85 SXS - 2012 года выпуска
-
№АртикулНазвание
-
147010101144 REAR WHEEL CPL. 14"REAR WHEEL CPL. 14"
-
1070010010044 REAR WHEEL HUB CPL.REAR WHEEL HUB CPL.
-
1170010011000 BEAR.SPACER TUBEBEAR.SPACER TUBE
-
130760324771 SHAFT SEAL RING 32X47X7 BSLSHAFT SEAL RING 32X47X7 BSL
-
140625060058 GR.BALL BEAR.6005 DDU2CG23S6NMGR.BALL BEAR.6005 DDU2CG23S6NM
-
150472047175 CIRCLIP DIN0472-47X1,75CIRCLIP DIN0472-47X1,75
-
1678010016000 BUSHING FOR HUBBUSHING FOR HUB
-
3058414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
-
4050304040100 SCREW M10X1,25X50 WS=10SCREW M10X1,25X50 WS=10
-
5147010051044 REAR SPROCKET 44-TREAR SPROCKET 44-T
-
5147010051045 REAR SPROCKET 45-TREAR SPROCKET 45-T
-
5147010051046 REAR SPROCKET 46-TREAR SPROCKET 46-T
-
5147010051047 REAR SPROCKET 47-TREAR SPROCKET 47-T
-
5147010051048 REAR SPROCKET 48-TREAR SPROCKET 48-T
-
5147010051049 REAR SPROCKET 49-TREAR SPROCKET 49-T
-
5147010051050 REAR SPROCKET 50-TREAR SPROCKET 50-T
-
5147010051051 REAR SPROCKET 51-TREAR SPROCKET 51-T
-
520019080266S COUNTER-SUNK SCREW ISA45 M8X26COUNTER-SUNK SCREW ISA45 M8X26
-
5354310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
6047010060500 REAR BRAKE DISCREAR BRAKE DISC
-
6259009062016 SPECIAL SCREW M6X16 WS=8 10.9SPECIAL SCREW M6X16 WS=8 10.9
-
6547010165124 CHAIN 124 ROLLSCHAIN 124 ROLLS
-
6647010166000 CONNECTING LINKCONNECTING LINK
-
7047010070000 RIM REAR AL4 14X1,60-32RIM REAR AL4 14X1,60-32
-
7247010071000 SPOKE M4,5 FOR 14"SPOKE M4,5 FOR 14"
-
7377109072000 SPOKE NIPPLE M4,5 ALSPOKE NIPPLE M4,5 AL
-
7447010073000 RIM BAND 85 SX 14"RIM BAND 85 SX 14"
-
8450310084000 CHAIN TENSIONER R/SCHAIN TENSIONER R/S
-
8547010085044 AXLE REAR CPL.AXLE REAR CPL.
-
8750310099000 HEXAGON NUT M20X1,5HEXAGON NUT M20X1,5
-
8955003135000 PLUG FOR RIMPLUG FOR RIM
-
9077110090050 NUT FOR WHEEL HOLDERNUT FOR WHEEL HOLDER
-
9151009100100 RIM LOCK VM1 (1,60")RIM LOCK VM1 (1,60")
-
9800050002002 DRIVETRAIN KIT 14T/46TDRIVETRAIN KIT 14T/46T
-
9900050000956 SPOKE KIT REAR 14"SPOKE KIT REAR 14"
