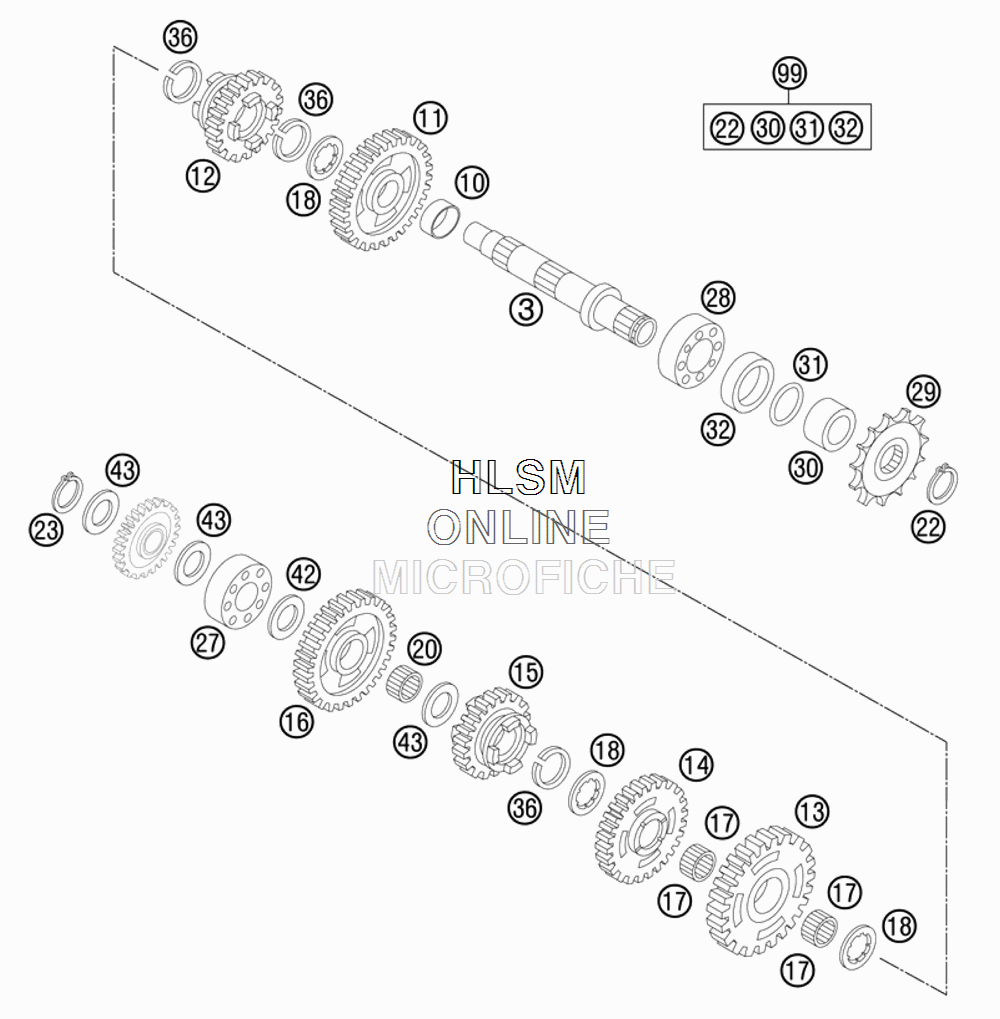

TRANSMISSION - COUNTERSHAFT для Ktm 85 SXS - 2012 года выпуска

№

Артикул

Название
3

47033003100 COUNTERSHAFT

COUNTERSHAFT

31 920 ₽
10

47033021000 IDLER GEAR BUSHING

IDLER GEAR BUSHING

6 110 ₽
11

47033011200 IDLER GEAR 2ND G. 28-T

IDLER GEAR 2ND G. 28-T

27 860 ₽
12

47033012100 SLIDING GEAR 6TH G. 21-T

SLIDING GEAR 6TH G. 21-T

21 670 ₽
13

47033013200 IDLER GEAR 3RD G.

IDLER GEAR 3RD G.

29 060 ₽
14

47033014200 IDLER GEAR 4TH G.

IDLER GEAR 4TH G.

29 120 ₽
15

47033015100 SLIDING GEAR 5TH G. 25-T

SLIDING GEAR 5TH G. 25-T

18 930 ₽
16

47033016000 IDLER GEAR 1ST G. 29-T

IDLER GEAR 1ST G. 29-T

21 150 ₽
17

50133099000 NEEDLE CAGE K18X22X10 PARTED

NEEDLE CAGE K18X22X10 PARTED

3 510 ₽
18

47033095000 SHIM

SHIM

1 110 ₽
20

47033099000 NEEDLE BEARING K15X19X10S

NEEDLE BEARING K15X19X10S

2 310 ₽
22

49033091000 CIRCLIP AS20X1,75

CIRCLIP AS20X1,75

910 ₽
23

0471150010 CIRCLIP DIN0471-15X1

CIRCLIP DIN0471-15X1

470 ₽
27

0625160020 BALL BEARING 16002 C3

BALL BEARING 16002 C3

5 140 ₽
28

0625062041 BALL BEARING 6204 JR2 C4

BALL BEARING 6204 JR2 C4

6 810 ₽
29

47033029013 ENGINE SPROCKET 13-T

ENGINE SPROCKET 13-T

6 260 ₽
29

47033029014 ENGINE SPROCKET 14-T

ENGINE SPROCKET 14-T

6 260 ₽
30

47033030000 SPACER FOR SPROCKET

SPACER FOR SPROCKET

2 220 ₽
31

46033031000 % O-RING 18,77X1,78

% O-RING 18,77X1,78

240 ₽
32

0760263560 SHAFT SEAL RING 26X35X6

SHAFT SEAL RING 26X35X6

1 520 ₽
36

0417210120 CIRCLIP SW21

CIRCLIP SW21

320 ₽
42

47033040000 STOP DISC 15X25X1

STOP DISC 15X25X1

240 ₽
43

47033043000 STOP DISC 15X25X0,5

STOP DISC 15X25X0,5

120 ₽
99

00050000942 COUNTER SHAFT REP.KI 105/85SX

COUNTER SHAFT REP.KI 105/85SX

8 760 ₽
