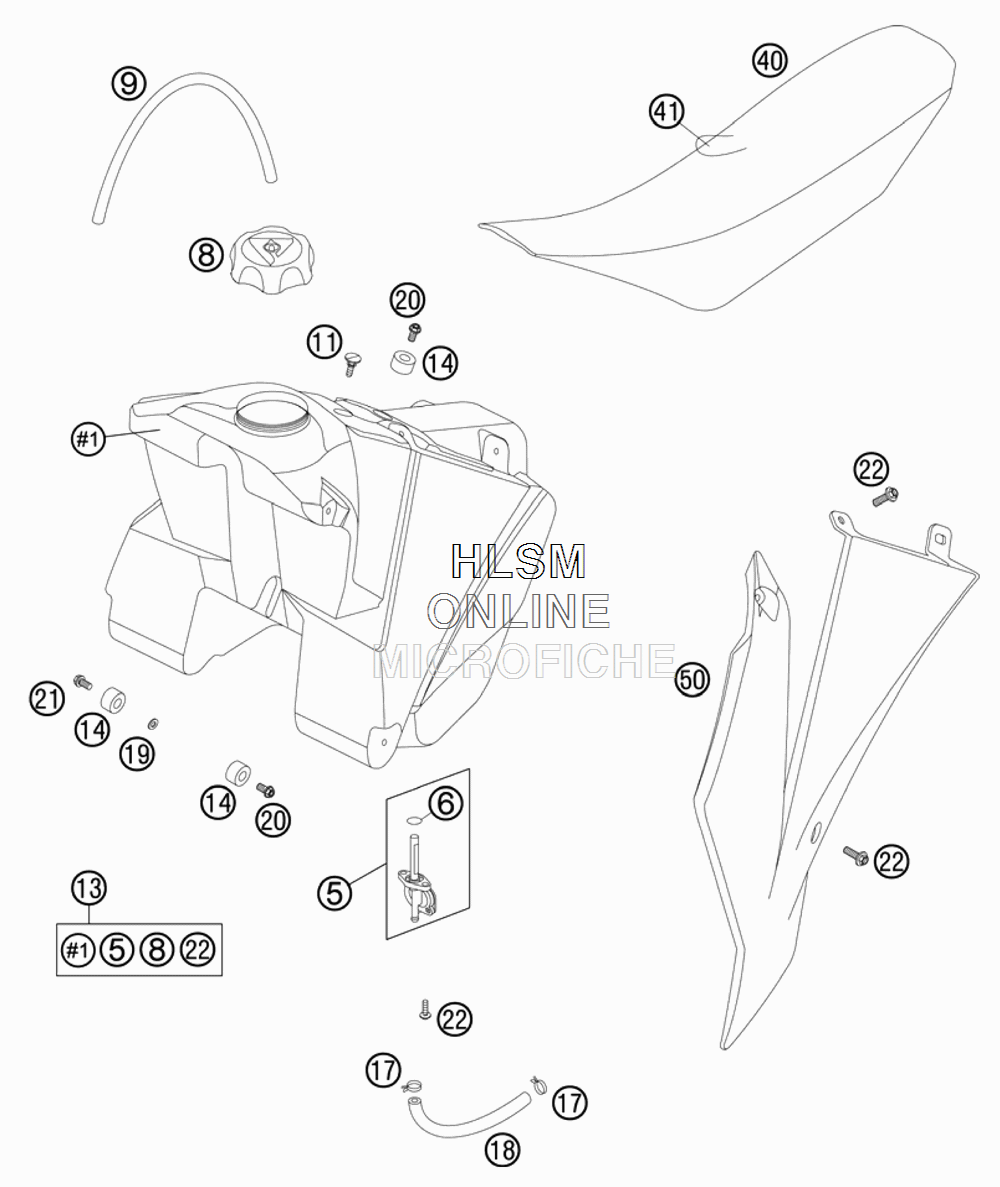

TANK SEAT COVER для Ktm 85 SXS - 2012 года выпуска
-
№АртикулНазвание
-
550307005000 GAS COCK MIKUNI ON/OFFGAS COCK MIKUNI ON/OFF
-
60770130023 O-RING 13,00X2,30O-RING 13,00X2,30
-
849007008044 FILLER CAP CPL. SMALLFILLER CAP CPL. SMALL
-
950332095200 TUBE RUBBER 6X9 DVOH 200MMTUBE RUBBER 6X9 DVOH 200MM
-
1150307011000 SCREW SEAT FASTENING D=6X23/18SCREW SEAT FASTENING D=6X23/18
-
134700701300030 FUEL TANKFUEL TANK
-
1450307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
1745031005000 YDNAC-CLAMP FUEL HOSE (8MM)YDNAC-CLAMP FUEL HOSE (8MM)
-
1858307016001 FUEL HOSE VITON 6X1,5 PER/MFUEL HOSE VITON 6X1,5 PER/M
-
1912011016000 WASHER 6 X 12 X 3WASHER 6 X 12 X 3
-
200025060126 HH COLLAR SCREW M6X12 TX30HH COLLAR SCREW M6X12 TX30
-
210025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
220017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
-
4047007040100 SEATSEAT
-
4147007040150 SEAT COVERSEAT COVER
-
5047008054300X4 SPOILER LS/RS 85//105 ORANGESPOILER LS/RS 85//105 ORANGE
