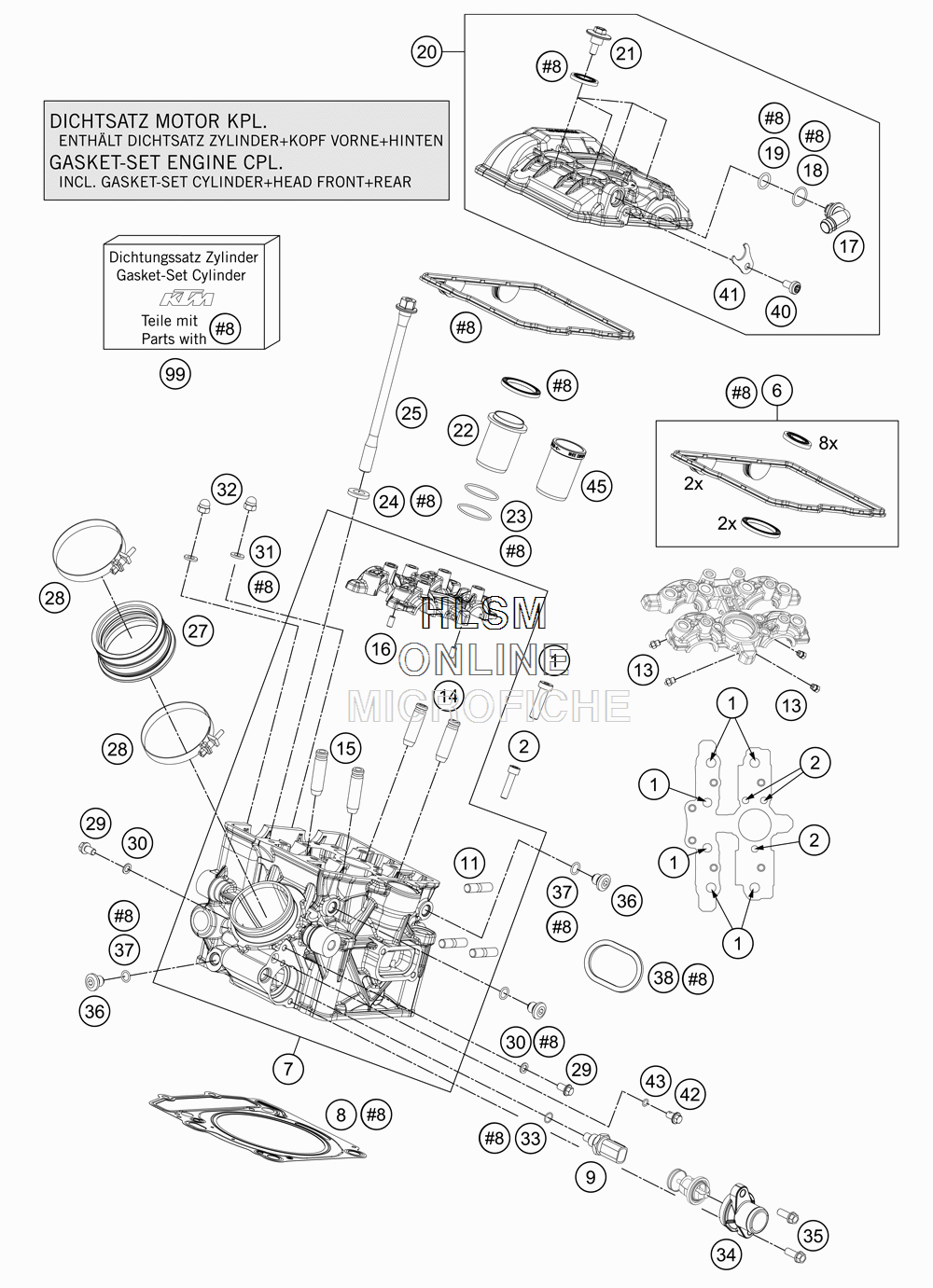

CYLINDER HEAD REAR для Ktm 1190 ADVENTURE - 2013 года выпуска
-
№АртикулНазвание
-
10984080305 AH SCREW DIN7984-M 8X30 10.9AH SCREW DIN7984-M 8X30 10.9
-
20912060255 AH SCREW DIN0912-M 6X25 10.9AH SCREW DIN0912-M 6X25 10.9
-
661236099100 VALVE COVER GASKET SETVALVE COVER GASKET SET
-
76033612000024 CYLINDER HEAD CPL. REARCYLINDER HEAD CPL. REAR
-
869130036000 CYLINDER HEAD GASKET MLSCYLINDER HEAD GASKET MLS
-
960011252000 TEMPERAT.-SENSOR WATERTEMPERAT.-SENSOR WATER
-
110835080165 STUD M 8X16 10.9STUD M 8X16 10.9
-
1360030063050 OIL JET 50OIL JET 50
-
1461236026001 VALVE GUIDE EXHAUSTVALVE GUIDE EXHAUST
-
1561236025001 VALVE GIUDE INTAKE 6MMVALVE GIUDE INTAKE 6MM
-
160402050980 NEEDLE ROLLER DIN5402 5X9,8NEEDLE ROLLER DIN5402 5X9,8
-
1761236082100 CONNECTING ANGLECONNECTING ANGLE
-
180770150151 O-RING 15,00X1,50 VITONO-RING 15,00X1,50 VITON
-
190770120020 O-RING 12,00X2,00 NBR 70O-RING 12,00X2,00 NBR 70
-
206123615214433 VALVE COVER REARVALVE COVER REAR
-
2160036052020 COLLAR SCREW M 6 WS=10COLLAR SCREW M 6 WS=10
-
2260336075000 SPARK PLUG SHAFTSPARK PLUG SHAFT
-
230770298178 O-RING 29,87X1,78 VITONO-RING 29,87X1,78 VITON
-
2461236079050 WASHER 11,1X20X3WASHER 11,1X20X3
-
2561236079000 CYLINDER HEAD SCREWCYLINDER HEAD SCREW
-
2761336044000 INTAKE BOOTINTAKE BOOT
-
2861336048000 HOSE CLAMP GEMI 75HOSE CLAMP GEMI 75
-
290025060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
300603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
310125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
3261230045000 CAP NUT M6 STAINLESS STEELCAP NUT M6 STAINLESS STEEL
-
330770100020 O-RING 10,00X2,00 SILCONEO-RING 10,00X2,00 SILCONE
-
3461235019100 WATER CONNECTION CPL.WATER CONNECTION CPL.
-
350025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
3677336056095 SCREW PLUGSCREW PLUG
-
3707700900151 O-RING 9X1,5 V75 SH DIN 3771O-RING 9X1,5 V75 SH DIN 3771
-
3869005005100 EXHAUST PIPE FLANGE GASKETEXHAUST PIPE FLANGE GASKET
-
400080060123 SCREW M6X12ISA30SCREW M6X12ISA30
-
4161236082150 CONNECTING ANGLE RETAIN. PLATECONNECTING ANGLE RETAIN. PLATE
-
4259036006090 VENT SCREW M6X10 CPL.VENT SCREW M6X10 CPL.
-
430770050012 O-RING 5,0X1,2 NBR 70O-RING 5,0X1,2 NBR 70
-
4560236075000 INSERT SPARK-PLUG SHAFTINSERT SPARK-PLUG SHAFT
-
9969130097000 GASKET KIT CYLINDER HEAD F/RGASKET KIT CYLINDER HEAD F/R
