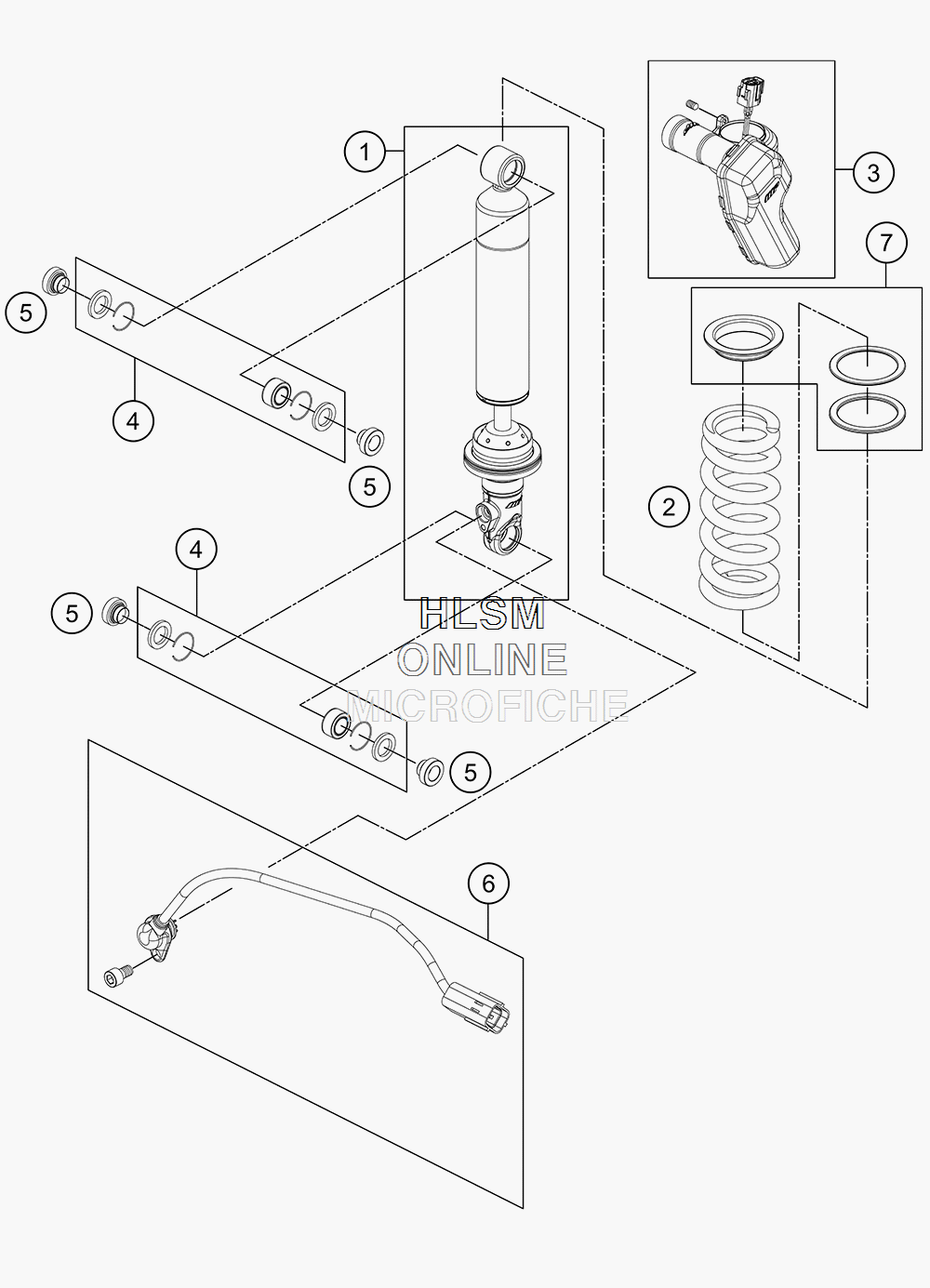

MONOSHOCK DISASSEMBLED для Ktm 1190 ADVENTURE - 2013 года выпуска
-
№АртикулНазвание
-
146140006S1 MONO SHOCK ASSEMBLY GROUPMONO SHOCK ASSEMBLY GROUP
-
292010034S1 MAIN SPRING ADV.EDSMAIN SPRING ADV.EDS
-
311000M03S1 PAUNIT CPL.PAUNIT CPL.
-
4R15009 BEARING KIT KGW 1525 990 DUKEBEARING KIT KGW 1525 990 DUKE
-
546180362 ADAPTOR BUSH KGW 14X32 07ADAPTOR BUSH KGW 14X32 07
-
646140013ES REBOUND ADJUST. CABLE KITREBOUND ADJUST. CABLE KIT
-
7R15015 REPAIR KIT GASKET BOTTOMREPAIR KIT GASKET BOTTOM
