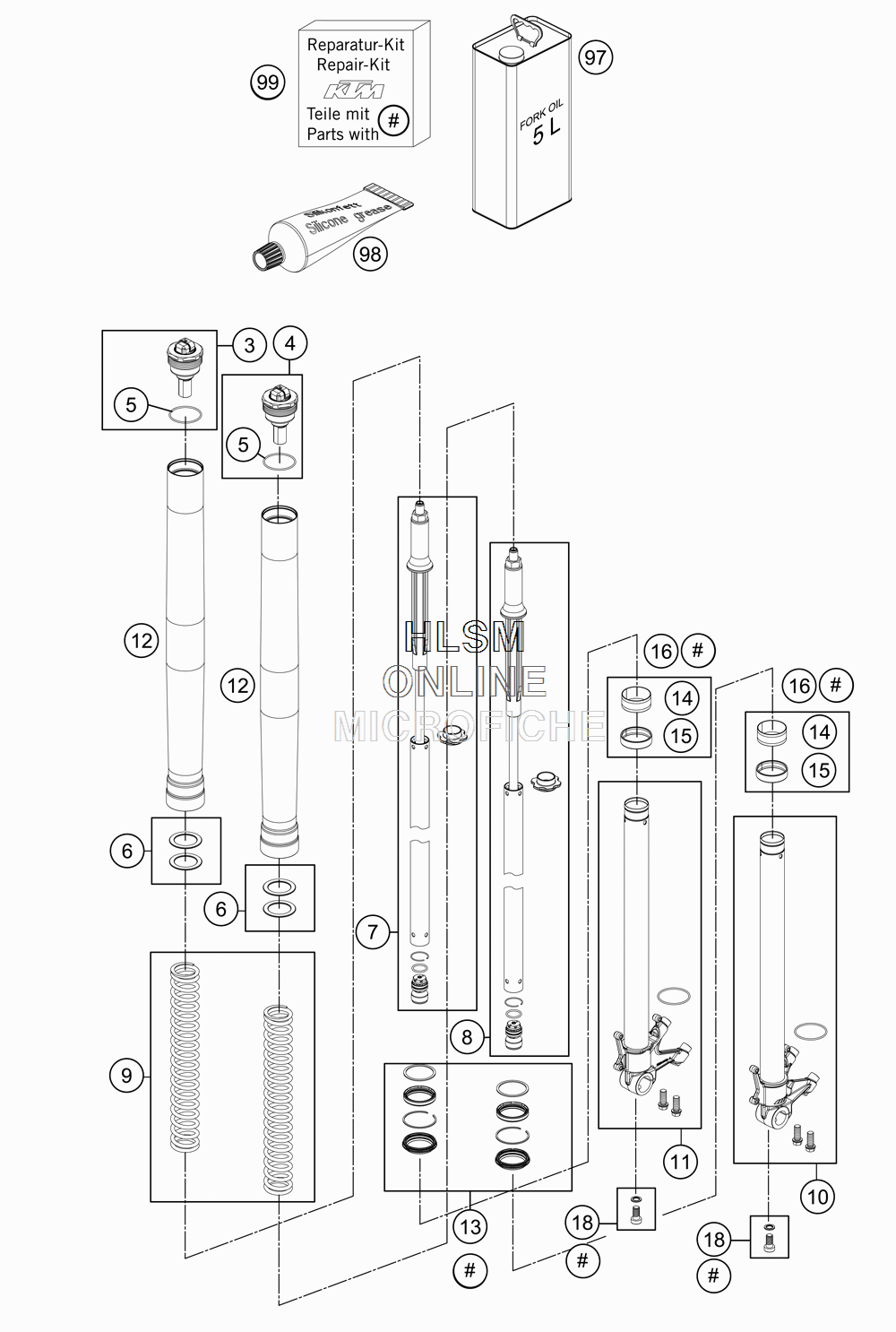

FRONT FORK DISASSEMBLED для Ktm 1190 ADVENTURE - 2013 года выпуска
-
№АртикулНазвание
-
343570712S SCREW CAP M15X1.5REBSCREW CAP M15X1.5REB
-
448600431S4 SCREW CAP M15X1.5COMSCREW CAP M15X1.5COM
-
546810340 O-RING NBR 45X2O-RING NBR 45X2
-
6R514 SPRING SPACER KITSPRING SPACER KIT
-
757430049S1 CARD RIDGE SET CPL. RIGHTCARD RIDGE SET CPL. RIGHT
-
857430048S1 CARD RIDGE SET CPL. LEFTCARD RIDGE SET CPL. LEFT
-
995010059S1 SPRINGKITSPRINGKIT
-
1048601081S1 AXLE CLAMP W.INNER TUBE LEFTAXLE CLAMP W.INNER TUBE LEFT
-
1148601082S1 AXLE CLAMP W.INNER TUBE RIGHTAXLE CLAMP W.INNER TUBE RIGHT
-
1248601099 OUTER TUBE L=550D54/D603LOUTER TUBE L=550D54/D603L
-
13R14030 GASKETSETGASKETSET
-
1448601009 GUIDING BUSH 48X52X12 R11GUIDING BUSH 48X52X12 R11
-
1548601008 GUIDING BUSH 47X49X20 R11GUIDING BUSH 47X49X20 R11
-
16R14028 GUIDING BUSH SETGUIDING BUSH SET
-
1800501020S1 AH SCREW M10X20SETAH SCREW M10X20SET
-
9748601166S1 FORK OIL SAE4 5LFORK OIL SAE4 5L
-
98T511 SILICONE GREASE F. DUST STRIPESILICONE GREASE F. DUST STRIPE
-
99R14031 REP. KIT ADV. 2013REP. KIT ADV. 2013
