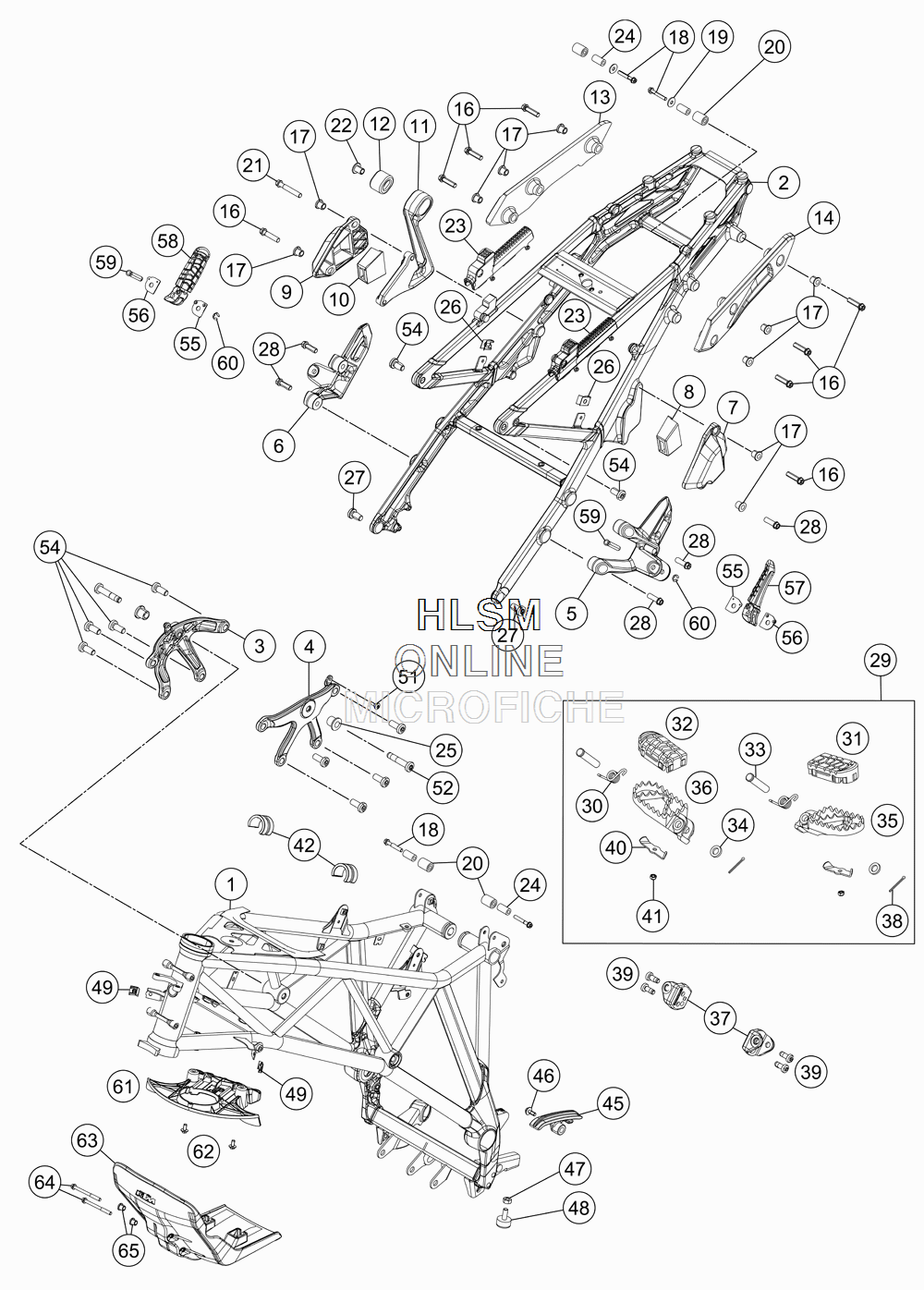

FRAME для Ktm 1190 ADVENTURE - 2013 года выпуска
-
№АртикулНазвание
-
16030300100033 FRAME "603MA" BLACKFRAME "603MA" BLACK
-
26030300200033 SUB-FRAMESUB-FRAME
-
36030300600033S ENGINE SUPPORT RIGHT BLACKENGINE SUPPORT RIGHT BLACK
-
46030300500033S ENGINE SUPPORT LEFT BLACKENGINE SUPPORT LEFT BLACK
-
56030304800033S FOOTREST SUPPORT REAR LEFT BLACKFOOTREST SUPPORT REAR LEFT BLACK
-
66030304900033S FOOTREST SUPPORT REAR RIGHT BLACKFOOTREST SUPPORT REAR RIGHT BLACK
-
760312010050 SUIT CASE HOOK LEFTSUIT CASE HOOK LEFT
-
860312010060 DAMPING RUBBER SUIT CASE HOOKDAMPING RUBBER SUIT CASE HOOK
-
960312011050 SUIT CASE HOOK RIGHTSUIT CASE HOOK RIGHT
-
1060312011060 DAMPING RUBBER SUIT CASE HOOKDAMPING RUBBER SUIT CASE HOOK
-
116030508400033S EXHAUST BRACKETEXHAUST BRACKET
-
1261305068000 DAMPING RUBBERDAMPING RUBBER
-
1360312021050 CASE RACK RIGHTCASE RACK RIGHT
-
1460312020050 CASE RACK LEFTCASE RACK LEFT
-
160025080306 HH COLLAR SCREW M8X30 TX40HH COLLAR SCREW M8X30 TX40
-
1760303002058 SPACER BUSHING 13X17X8,2SPACER BUSHING 13X17X8,2
-
180025060356 HH COLLAR SCREW M6X35 TX30HH COLLAR SCREW M6X35 TX30
-
190021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
2060307048000 RUBBER SEAT-CONTACT SURFACERUBBER SEAT-CONTACT SURFACE
-
210025080506 HH COLLAR SCREW M8X50 TX40HH COLLAR SCREW M8X50 TX40
-
2260305069000 BUSHINGBUSHING
-
2360307040041 PLATE RUBBER SEATPLATE RUBBER SEAT
-
2460307049000 BUSH 6.2X12X21.5BUSH 6.2X12X21.5
-
2560303007000 SPACER BUSH ENGINE SUPPORTSPACER BUSH ENGINE SUPPORT
-
2654603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
270035100209 AH-COLLAR SCREW M10X20ISA45AH-COLLAR SCREW M10X20ISA45
-
280025080256 HH COLLAR SCREW M8X25 TX40HH COLLAR SCREW M8X25 TX40
-
2960003040133 FOOTPEG LEFT/RIGHT CPL.FOOTPEG LEFT/RIGHT CPL.
-
3054603041000 FOOTREST SPRING LEFT/RIGHTFOOTREST SPRING LEFT/RIGHT
-
3160003040010 FOOTREST RUBBER FRONT LEFTFOOTREST RUBBER FRONT LEFT
-
3260003041010 FOOTREST RUBBER FRONT RIGHTFOOTREST RUBBER FRONT RIGHT
-
3354803044000 BOLT FOR FOOT PEDBOLT FOR FOOT PED
-
340125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
3559003040250 FOOT PEG LEFT SILVERFOOT PEG LEFT SILVER
-
3659003041250 FOOT PEG RIGHT SILVERFOOT PEG RIGHT SILVER
-
376030310109533S FOOT REST MOUNTINGFOOT REST MOUNTING
-
380094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
-
390025080166S HH COLLAR SCREW M8X16 TX40HH COLLAR SCREW M8X16 TX40
-
4060003044010 CLOSING PANEL FRONT L/S R/SCLOSING PANEL FRONT L/S R/S
-
410985050003 SELF LOCKING NUT DIN0985-M5SELF LOCKING NUT DIN0985-M5
-
4261007014000 SPACER FUEL TANKSPACER FUEL TANK
-
4560303070000 CHAIN GUIDECHAIN GUIDE
-
460024060156 HH COLLAR SCREW M6X15 TX30HH COLLAR SCREW M6X15 TX30
-
470934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
4858303070100 BUMP RUBBER M8X25MMBUMP RUBBER M8X25MM
-
4954603048200 RANGE CHANGE METAL NUT M5RANGE CHANGE METAL NUT M5
-
5169008021160 SPECIAL SCREW M5X12SPECIAL SCREW M5X12
-
520035100509S AH-COLLAR SCREW M10X50ISA45AH-COLLAR SCREW M10X50ISA45
-
540035100249 AH-COLLAR SCREW M10X24 ISA45AH-COLLAR SCREW M10X24 ISA45
-
5560003152000 ENGAGE PANEL FOOTREST L/SENGAGE PANEL FOOTREST L/S
-
5660003052000 ENGAGE PANEL FOOTREST R/SENGAGE PANEL FOOTREST R/S
-
5760003050000 FOOTREST CPL. L/S REARFOOTREST CPL. L/S REAR
-
5860003051000 FOOTREST CPL. R/S REARFOOTREST CPL. R/S REAR
-
5960003044100 BOLT FOR FOOTREST REARBOLT FOR FOOTREST REAR
-
600799060003 TAB WASHER DIN6799-RS 6,0TAB WASHER DIN6799-RS 6,0
-
6160308024000 TRIPLE CLAMP COVER LOWER SIDETRIPLE CLAMP COVER LOWER SIDE
-
620081050121 SCREW FOR PLASTIC K50X12 T20SCREW FOR PLASTIC K50X12 T20
-
636030319000030 SKID PLATE ADVSKID PLATE ADV
-
640025060406 HH COLLAR SCREW M6X40 TX30HH COLLAR SCREW M6X40 TX30
-
6558314060050 SPACER BUSH. F. SPEEDOMET.BRAKESPACER BUSH. F. SPEEDOMET.BRAKE
