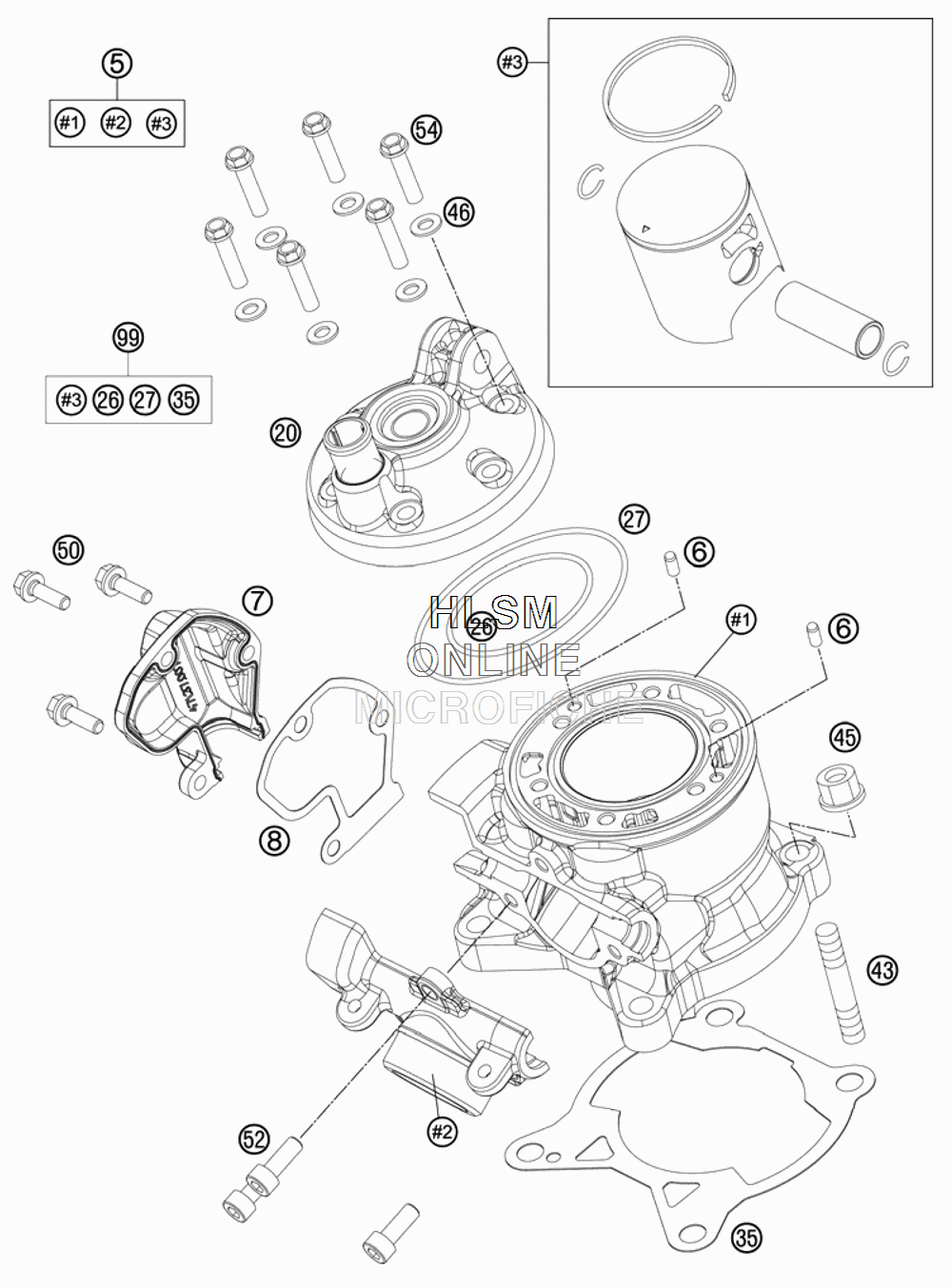

CYLINDER для Ktm 85 SX 19/16 - 2013 года выпуска
-
№АртикулНазвание
-
5*47130038000 CYLINDER + PISTON (INC 1,2,3)CYLINDER + PISTON (INC 1,2,3)
-
6*0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8NEEDLE ROL.DIN5402 NRB 4X9,8
-
7*47137007000 CONTROL COVERCONTROL COVER
-
8*47137008000 GASKET CONTROL COVERGASKET CONTROL COVER
-
20*47130006000 CYLINDER HEADCYLINDER HEAD
-
260770540020 O-RING 54X2 VITONO-RING 54X2 VITON
-
27*0770800021 O-RING 80,00X2,00 VITONO-RING 80,00X2,00 VITON
-
3547030035000 CYLINDER BASE GASKET 0,50MMCYLINDER BASE GASKET 0,50MM
-
3547030035020 CYLINDER BASE GASKET 0,20MMCYLINDER BASE GASKET 0,20MM
-
3547030035030 CYLINDER BASE GASKET 0,30MMCYLINDER BASE GASKET 0,30MM
-
430835080240 STUD DIN 0835-M 8X24STUD DIN 0835-M 8X24
-
4546030045000 COLLAR NUT M8 WS=10COLLAR NUT M8 WS=10
-
460603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
500015050123 HH COLLAR SCREW M 5X12 WS=8HH COLLAR SCREW M 5X12 WS=8
-
52*0012060164 AH SCREW DIN6912 M6X16 SLAH SCREW DIN6912 M6X16 SL
-
5447030079000 CYLINDER HEAD BOLTCYLINDER HEAD BOLT
-
9900050000204 PISTON KIT IPISTON KIT I
-
9900050000205 PISTON KIT IIPISTON KIT II
