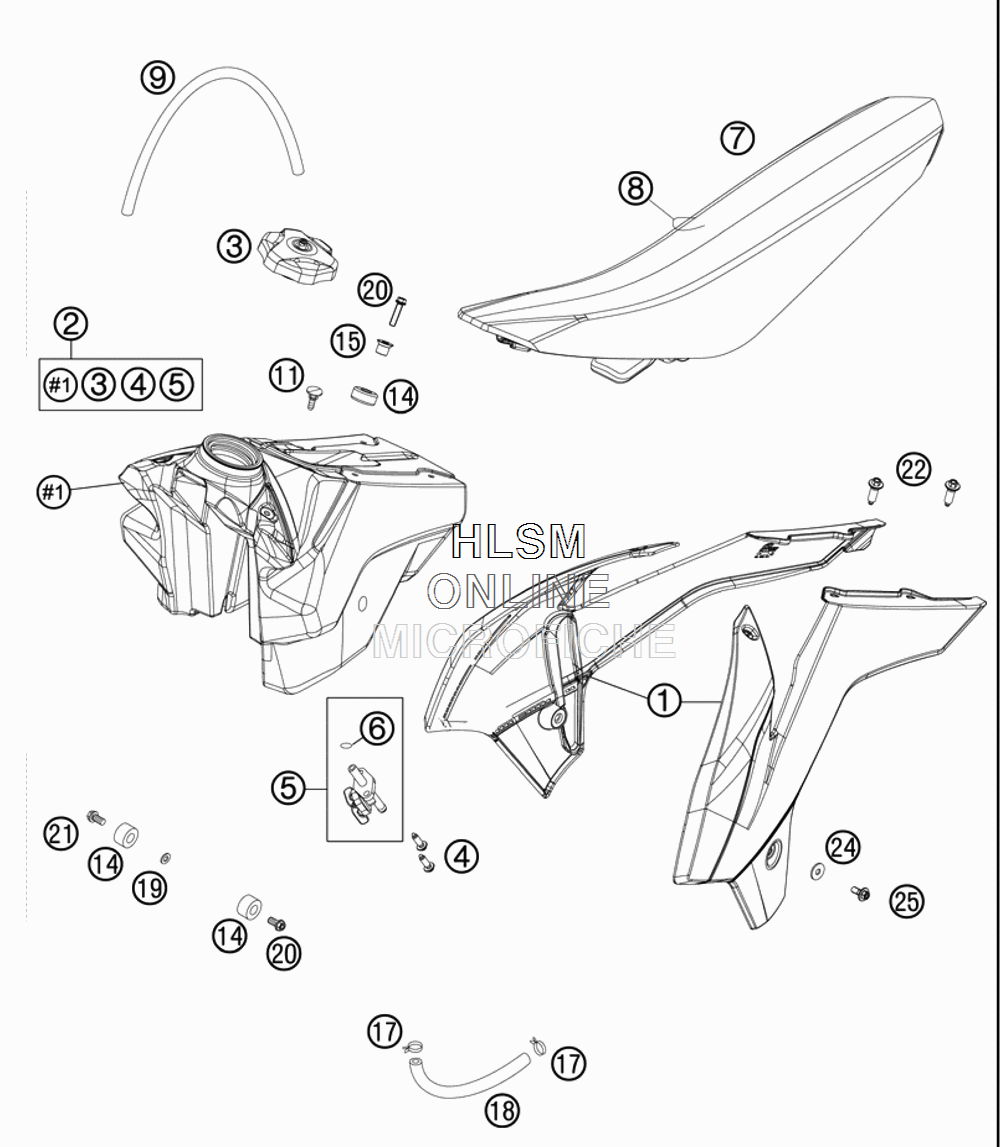

TANK - SEAT - COVER для Ktm 85 SX 19/16 - 2013 года выпуска
-
№АртикулНазвание
-
14710805400004A SPOILER SETSPOILER SET
-
24710701304430 FUEL TANK CPL.FUEL TANK CPL.
-
377707008044 TANK PLUG CPL.TANK PLUG CPL.
-
40017060253 EJOT PT SCREW K60X25-Z SW=6EJOT PT SCREW K60X25-Z SW=6
-
550307005000 GAS COCK MIKUNI ON/OFF (INC 6)GAS COCK MIKUNI ON/OFF (INC 6)
-
60770130023 O-RING 13,00X2,30O-RING 13,00X2,30
-
747107040000 SEAT CPL.SEAT CPL.
-
847107040050 SEATCOVERSEATCOVER
-
950332095200 TUBE RUBBER 6X9 DVOH 200MMTUBE RUBBER 6X9 DVOH 200MM
-
1177307026000 TANK BUSHINGTANK BUSHING
-
1450307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
1577307026000 TANK BUSHINGTANK BUSHING
-
1745031005000 YDNAC-CLAMP FUEL HOSE (8MM)YDNAC-CLAMP FUEL HOSE (8MM)
-
1858307016001 FUEL HOSE VITON 6X1,5 PER/MFUEL HOSE VITON 6X1,5 PER/M
-
1912011016000 WASHER 6 X 12 X 3WASHER 6 X 12 X 3
-
200025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
210025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
220017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
-
240021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
250024060156 HH COLLAR SCREW M6X 15 TX30HH COLLAR SCREW M6X 15 TX30
