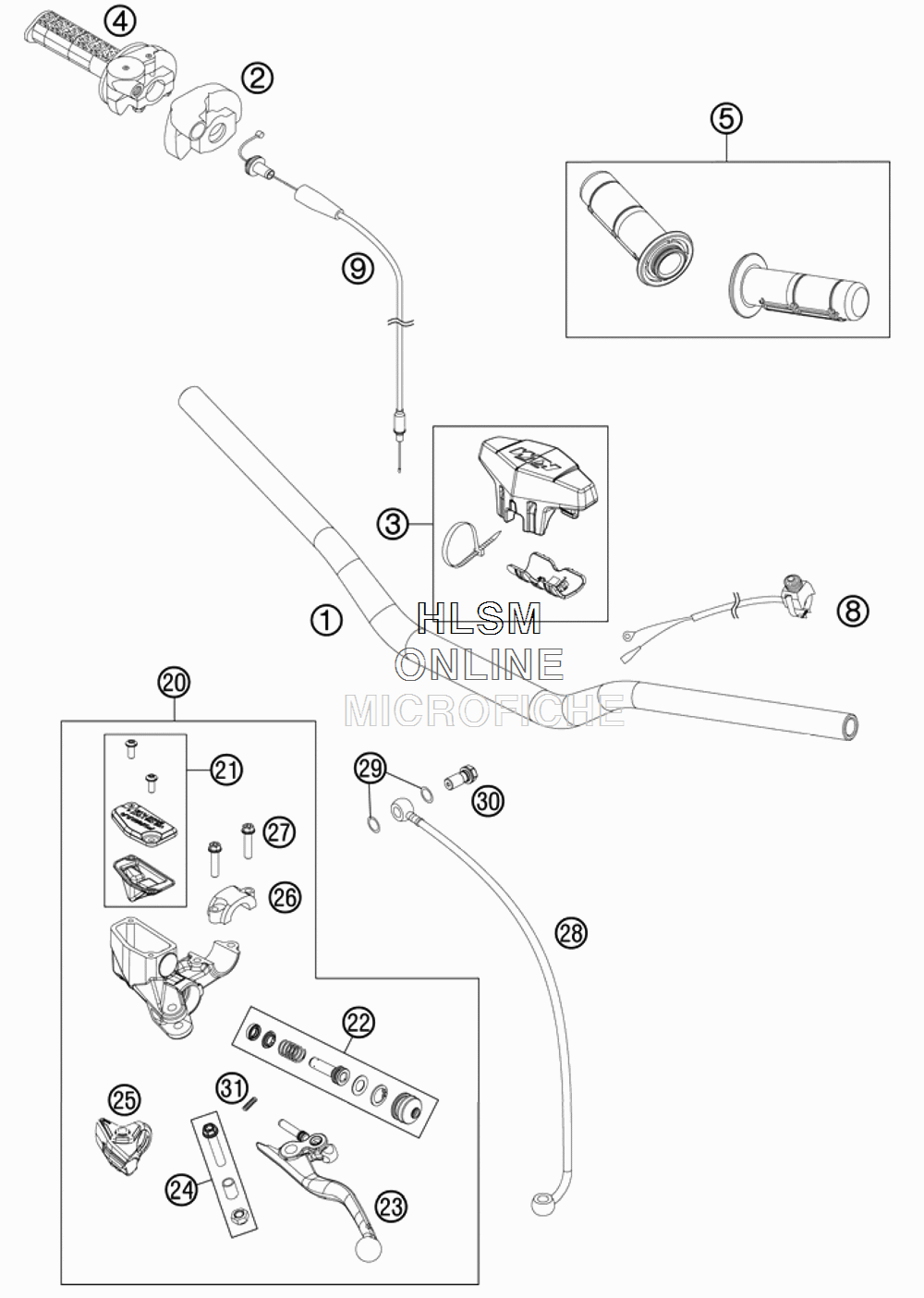

HANDLEBAR CONTROLS для Ktm 85 SX 19/16 - 2013 года выпуска
-
№АртикулНазвание
-
147102001000 HANDLEBARHANDLEBAR
-
250302020000 PROTECTION COVERPROTECTION COVER
-
377202002144 BAR PAD CPL.BAR PAD CPL.
-
450302010000 THR.TWIST CRIP CPL. W.O.C.THR.TWIST CRIP CPL. W.O.C.
-
563002021100 GRIP SET DUAL COMPOUNDGRIP SET DUAL COMPOUND
-
850311089200 SHORT CIRCUIT BUTTONSHORT CIRCUIT BUTTON
-
951502091000 THROTTLE C. 2STROKE DOM./KEIH.THROTTLE C. 2STROKE DOM./KEIH.
-
2072002030000 MASTER CYLINDER CPL. 9,5MM (INC 21-27, 31)MASTER CYLINDER CPL. 9,5MM (INC 21-27, 31)
-
2172002003000 COVER F. MASTER CYLINDER CPL.COVER F. MASTER CYLINDER CPL.
-
2270002032000 REP. SET PISTON 9,5MMREP. SET PISTON 9,5MM
-
2370013002000 LEVER CPL.LEVER CPL.
-
2470002038000 LEVER SCREW CPL.LEVER SCREW CPL.
-
2572002037000 MUDCOVER CLUTCH LEVERMUDCOVER CLUTCH LEVER
-
2672013005000 CLAMPCLAMP
-
270025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
2872032063000 CLUTCH PIPECLUTCH PIPE
-
290770080019 O-RING 8,00X1,00 FORMULAO-RING 8,00X1,00 FORMULA
-
3047013025000 HOLLOW SCREW BRAKE CYLINDERHOLLOW SCREW BRAKE CYLINDER
-
3172002035000 SPRING FOR CLUTCH LEVERSPRING FOR CLUTCH LEVER
