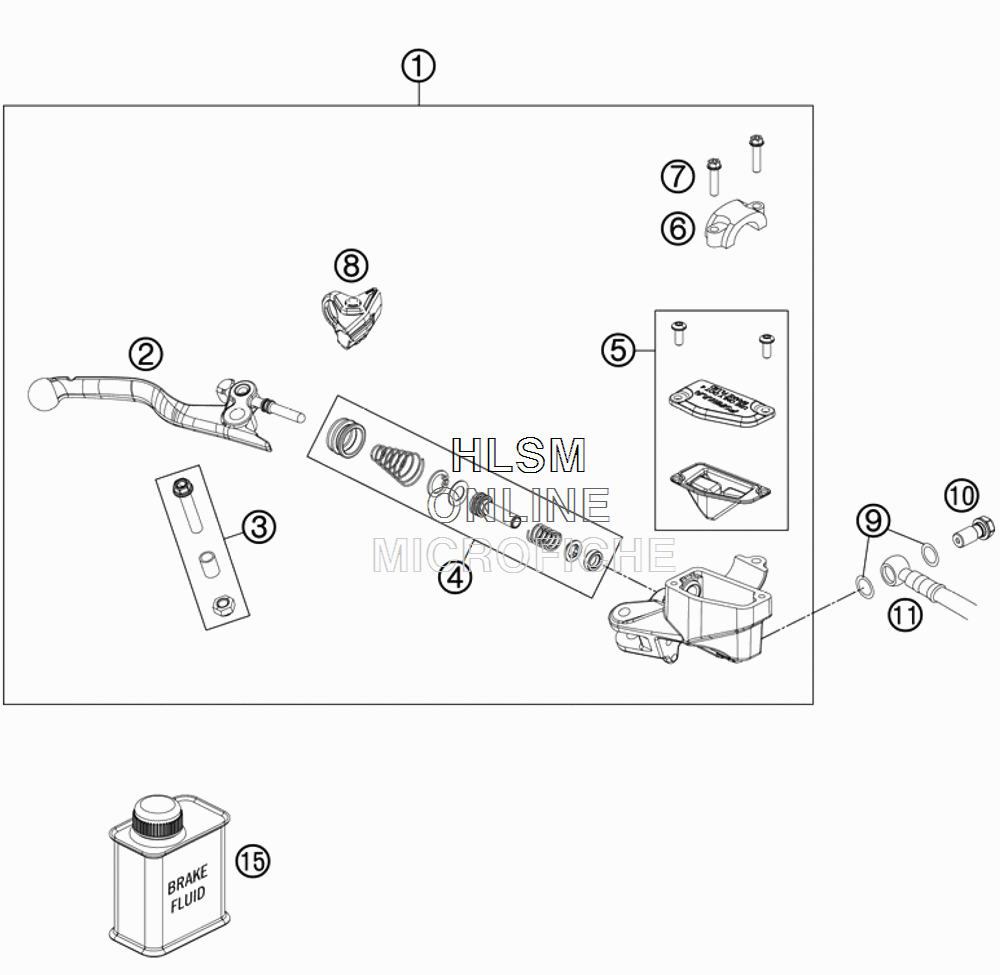

HAND BRAKE CYLINDER для Ktm 85 SX 19/16 - 2013 года выпуска
-
№АртикулНазвание
-
147113001000 HAND BRAKE CYLINDER CPL. 9,5MM (INC 2-8)HAND BRAKE CYLINDER CPL. 9,5MM (INC 2-8)
-
270013002000 LEVER CPL.LEVER CPL.
-
370002038000 LEVER SCREW CPL.LEVER SCREW CPL.
-
470002032000 REP. SET PISTON 9,5MMREP. SET PISTON 9,5MM
-
570013003000 COVER HAND BRAKE CYLINDER CPL.COVER HAND BRAKE CYLINDER CPL.
-
647113005000 CLAMPCLAMP
-
70025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
870013004000 MUDCOVER HANDBRAKE LEVERMUDCOVER HANDBRAKE LEVER
-
90770080019 O-RING 8,00X1,00 FORMULAO-RING 8,00X1,00 FORMULA
-
1047013025000 HOLLOW SCREW BRAKE CYLINDERHOLLOW SCREW BRAKE CYLINDER
-
1170013010100 BRAKE HOSE FRONT 1065MMBRAKE HOSE FRONT 1065MM
-
1500062030000 BRAKE FLUID DOT 5.1 0,25LBRAKE FLUID DOT 5.1 0,25L
