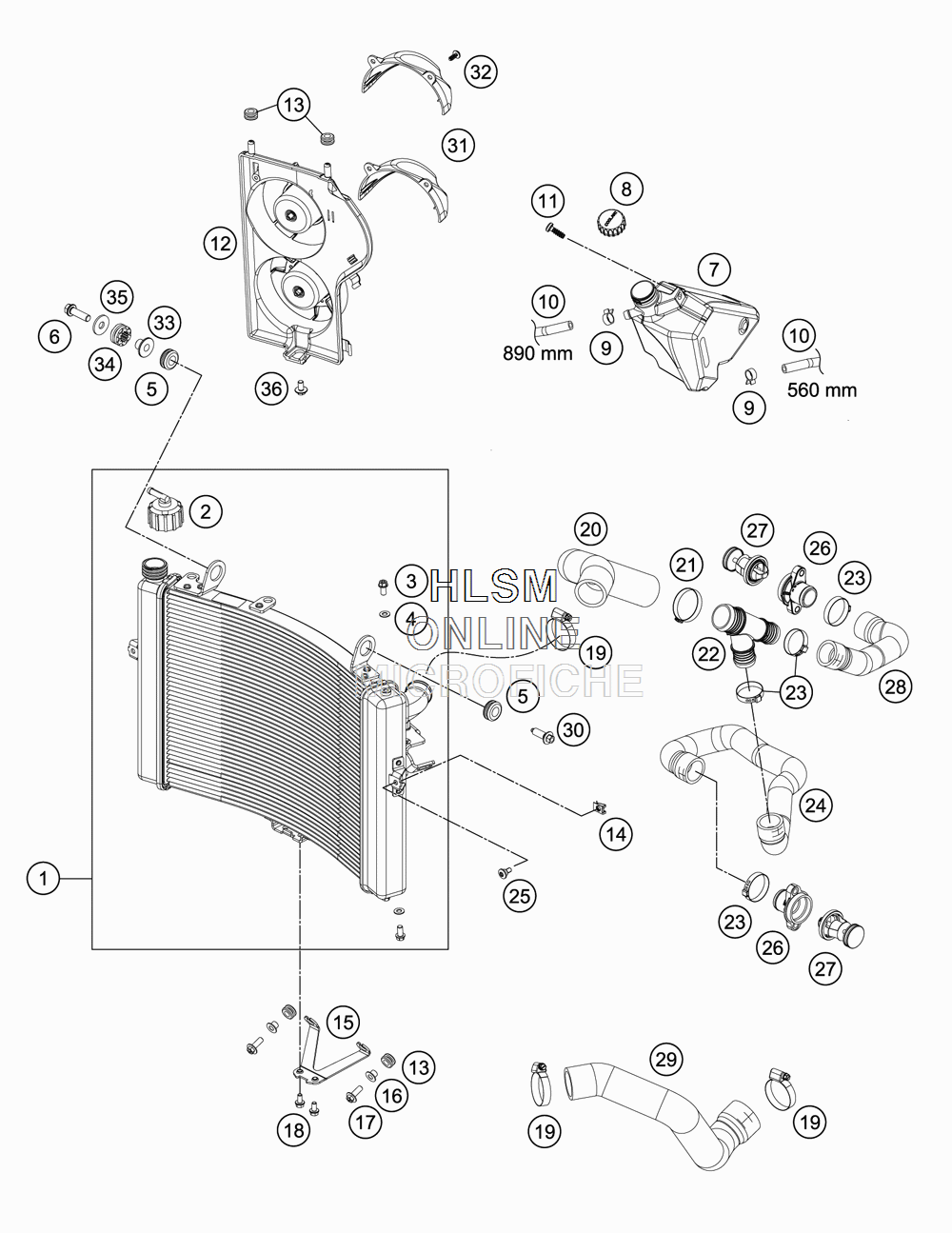

COOLING SYSTEM для Ktm 1290 SUPER DUKE R ABS BLACK - 2015 года выпуска
-
№АртикулНазвание
-
161335010000 WATER COOLERWATER COOLER
-
262535009000 RADIATOR CAP 1,4 BARRADIATOR CAP 1,4 BAR
-
30025060126 HH COLLAR SCREW M6X12 TX30HH COLLAR SCREW M6X12 TX30
-
460035048000 ALU-GASKET 6X10X1.5ALU-GASKET 6X10X1.5
-
541001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
60025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
761335065000 EXPANSION TANK CPL.EXPANSION TANK CPL.
-
860335066044 PLUG F . EXPANSION TANKPLUG F . EXPANSION TANK
-
958007117000 YDNAC-C LAMP 10107 10MMYDNAC-C LAMP 10107 10MM
-
1060035067001 HOSE 6X10 EPDMHOSE 6X10 EPDM
-
110081250141 SCREW FOR PLASTIC PT K50X14T25SCREW FOR PLASTIC PT K50X14T25
-
1260335044033 FAN COVER CPL.FAN COVER CPL.
-
1331008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
1469008021080 RANGE CHANGE MET AL NUT M5RANGE CHANGE MET AL NUT M5
-
1560335005000 MOUNTING PLATE COOLER BOTTOMMOUNTING PLATE COOLER BOTTOM
-
1675014010050 COLLAR BUSHING 6,1X8,1X14X8 07COLLAR BUSHING 6,1X8,1X14X8 07
-
170024060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
180025050106 COLLAR SCREW M5X10 ISA30COLLAR SCREW M5X10 ISA30
-
1954305058000 HOSE CLAMP 30-45 SGTHOSE CLAMP 30-45 SGT
-
2060335026000 PREFORMED HOSEPREFORMED HOSE
-
2100050396706 VARIABLE ONE-EAR CLAMP 39,6MMVARIABLE ONE-EAR CLAMP 39,6MM
-
2260335093000 Y-JOINTY-JOINT
-
2300050331706 VARIABLE ONE-EAR CLAMP 33,1MMVARIABLE ONE-EAR CLAMP 33,1MM
-
2460335025000 PREFORMED HOSEPREFORMED HOSE
-
2569008021160 SPECIAL SCREW M5X12SPECIAL SCREW M5X12
-
2661235019100 WATER CONNECTION CPL.WATER CONNECTION CPL.
-
2761235017000 THERMOSTAT 70 DEGREETHERMOSTAT 70 DEGREE
-
2860335024000 PREFORMED HOSEPREFORMED HOSE
-
2960335027000 PREFORMED HOSEPREFORMED HOSE
-
300024060123 COLLAR SCREW M6X12 TXCOLLAR SCREW M6X12 TX
-
3161335049000 AIR DEFLECTORAIR DEFLECTOR
-
320081050141 EJOT PT SCREW 50X14 WN 1451EJOT PT SCREW 50X14 WN 1451
-
3361342041000 COLLAR BUSH 6,5X9X18X8, 5COLLAR BUSH 6,5X9X18X8, 5
-
3462142041000 DAMP . COMPONENT ABS MODULEDAMP . COMPONENT ABS MODULE
-
350021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
3683008000012 SPECIAL SCREW M6X12X3SPECIAL SCREW M6X12X3
